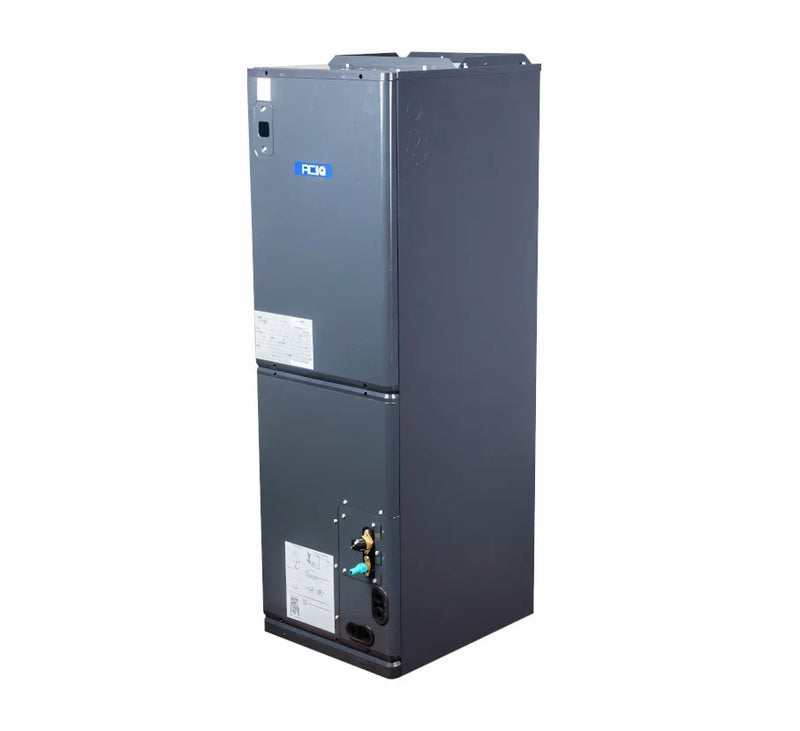

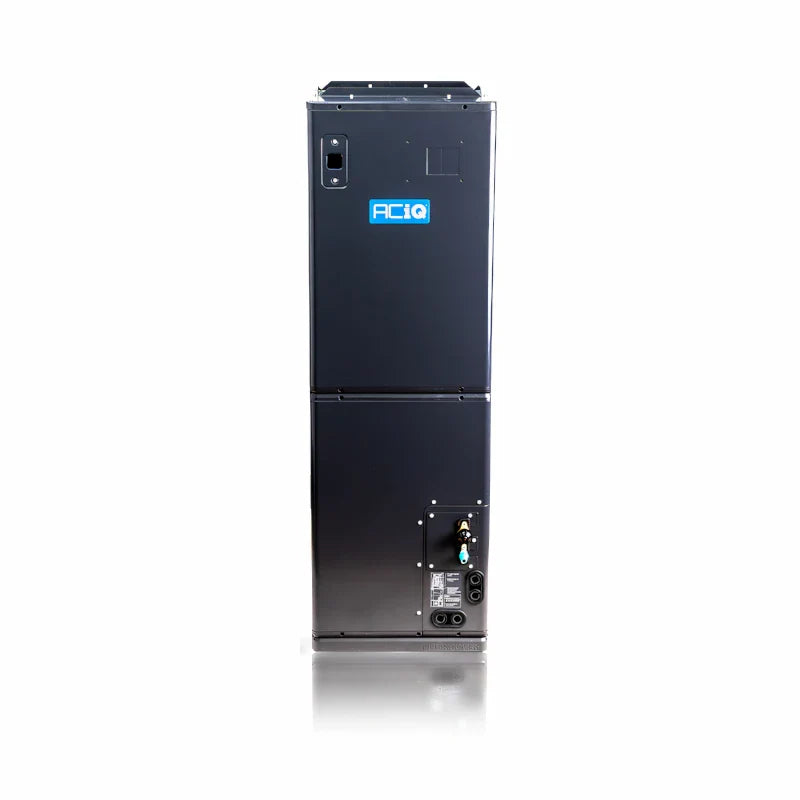

The ACiQ-24-PAH Extreme+ is a high-performance 2-ton ducted air handler built for maximum comfort and efficiency in any climate. Its variable speed DC blower and smart communicating technology allow the system to automatically adjust BTU output for optimal energy use and comfort. Designed for versatility, it installs in upflow, downflow, or horizontal positions and features a slim-fit cabinet for easy placement. Compatible with any 24v thermostat and R454B refrigerant, it also qualifies for enhanced tax credits and rebates thanks to its superior performance.
2 Ton High-Efficiency Performance – Delivers superior cooling and heating capacity for homes needing a 2-ton central air handler solution.
Variable Speed DC Blower – Equipped with an advanced variable speed DC blower motor for quiet operation, consistent airflow, and maximum energy efficiency.
Smart Communicating Technology – Works in sync with inverter condensers and 24v thermostats to self-adjust BTU output, ensuring personalized comfort and optimized energy use.
Multi-Positional Installation – Designed for flexible setup in upflow, downflow, or horizontal left/right positions, making it a fit for a variety of installations.
Slim-Fit Cabinet Design – Features a compact, space-saving cabinet for easier handling and installation in tight spaces.
Eco-Friendly Refrigerant Ready – Fully compatible with R454B refrigerant, supporting cleaner operation and future-proof environmental standards.
Tax Credit & Rebate Eligible – Engineered for high efficiency to qualify for potential local energy rebates and federal tax incentives.
Universal Thermostat Compatibility – Pairs seamlessly with any 24v thermostat, giving homeowners flexible control options.
Installation and Maintenance
The installation process for the ACiQ Extreme+ central ducted air handler is similar to that of other replacement air handlers. Your technician will handle electrical, refrigerant, thermostat, and communication connections, as well as link the air handler to the return and supply ductwork. This air handler is multi-positional (upflow, downflow, or horizontal) and features a narrower cabinet design, offering greater versatility and easier installation compared to other models. It is compatible with any 24v thermostat that supports two stages of heating. For colder days, supplemental electric heat kits are available as a backup heat source.
If maintenance is needed, the air handler’s intelligent control board will display fault codes to help diagnose any issues with the system.
Important Note: For proper function, the air handler must be installed with a condenser and other required installation equipment, which may incur additional costs if not included in the product bundle. Additionally, an electric heat kit is required for straight electric heating and is also available at an extra cost.
| Brand | ACiQ | SKU | ACiQ-24-PAH |
| Weight (in lbs) | 123.020000 | Brand/Manufacturer | ACiQ |
| Cooling BTU | 24,000 BTU | Maximum CFM | 824 |
| Decibel Level (dBA) | Up to 47.5 Decibels | Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 8 Kilowatts, 10 Kilowatts |
| Configuration | Multi-Positional | Refrigerant | R454B |
| Liquid Line | 3/8" | Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz | Max Breaker Size | 15 Amps |
| Min. Breaker Size | 5.5 Amps / 3.5 Amps | Tonnage | 2 Ton |
| BTU/Tonnage | 24,000 BTU/2 Ton | Mini Split Type | Multi-Positional |
| Zone Compatibility | Single Zone | Connection | Flared |
| Height | 49.7" | Width | 17.5" |
| Depth | 21.5" | Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| Warranty Type | Parts | Compressor |
| Standard Warranty | 5 year parts | 7 year parts |
| Registered Warranty | 7 year parts | 12 year parts |
