Ultimate Full Comfort All In One

Compact Living Pro's 40' Expandable Flat Container Home offers 790 square feet of open-concept, single-story living space, featuring two private bedrooms, a full kitchen, a modern bathroom, and a roomy living and dining area. Built for comfort, efficiency, and strength, it can be set up on-site within 1 to 2 days and is move-in ready.

Ideal as a permanent home, vacation rental, or guest suite, this modular unit is constructed with high-quality, fire-resistant, and hurricane-rated materials, ensuring lasting durability and a sleek, contemporary look.

🏠 Key Features

• 2 Private Bedrooms: Accommodates 1–6 people comfortably

• Open Living + Dining: Spacious central space for lounging and meals

• Expandable design with quick setup on delivery

• Pre-installed doors, windows, electrical, and lighting

• Insulated wall and ceiling panels for year-round comfort

• Galvanized steel frame for long-lasting strength

📐 Dimensions

• Guest Capacity: 1–6 occupants

• Electric Power Consumption: 20KW

• Ceiling: 831 ceiling board interior finish

• Flooring Thickness: 18 mm (main), 18 mm bamboo adhesive board (wings)

• Expanded Size: 38' 9" L × 20' 5" W × 8' 2" H
  • Internal Size: 37' 10" L × 19' 11" W × 7' 3" H
  • Folded Size: 38' 9" L × 7' 3" W × 8' 2" H
  • Surface Area: ~865 SF
• Room Sizes:
  • • Bedrooms: ~7'8" to 9'10" wide
    • Living Room + Kitchen: ~21'1"
    • Bathroom: Compact layout with all fixtures

🔧 Construction Specifications

• Main Frame: Fully galvanized, 80×100×3.0 mm square tubes

• Top & Side Beams: Square tubes, 3.0 mm

• Bottom Beams: Flanged steel pieces, 3.0 mm

• Steel Columns: Flanged pieces, 3.0 mm

• Galvanized Hangers: 210×150×1605 mm heavy-duty support

• Top Frame: 40×80×1.5 mm P-shaped pipes

• Bottom Frame: 60×80×2.5 mm square tubes

• Folding Hinges: 130 mm galvanized embedded hinges

• Protective Coating: Electrostatic powder + plain powder anti-corrosion coating

• Roof Plate: 50 mm EPS colored steel insulated panel

🪟 Doors & Windows

• Windows: Plastic steel windows, 930×1130 mm

• Main Entrance Door: Steel door, Broken-bridge aluminum + double-layer 1700×1970 mm

⚡ Electrical System

• Breaker: 1 circuit breaker with 20A leakage protection

• Lighting: Flat square lamps + large ceiling lamps

• Outlets: Standard USA three-hole sockets

• Switches: Dual-opening, single-key switches

• Wiring:

  • 6 mm² for incoming main line

  • 4 mm² for air conditioning

  • 2.5 mm² for outlets

  • 1.5 mm² for lighting

🚿 Bathroom

• Space available for shower, toilet, and sink installations
• Dry/Wet Separation with Changhong glass doors
• Shower (copper core), wash basin, intelligent mirror cabinet, toilet
• UV wall panels, SPC flooring, polyurethane insulated base, steel bottom protection

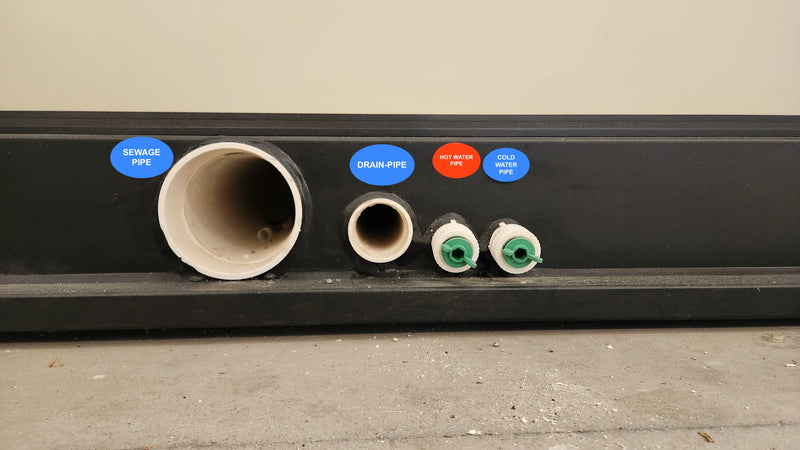

• Fully plumbed for water and sewer connections

🧱 Wall Panels & Ceiling

• Interior Ceiling: 831 ceiling board

• Walls (Side, Front, Back): 50 mm EPS insulated steel panels

🎨 Decorative Lines

• Baseboards, top corner lines, and vertical bars

• Overlap edges finished for a polished interior look

🪵 Flooring

• Main Frame: 18 mm calcium silicate board

• Wings: 18 mm bamboo adhesive board

🔄 Use Cases

• Full-time residential living

• Guest housing or rental space

• On-site staff housing or mobile lodging

🛠 What’s Included

• Expandable container house structure

• Pre-installed windows & doors

• Electrical system: breaker, wiring, outlets, switches, and lighting

• Flooring and ceiling systems

• Wall and roof insulated panels

• Decorative lines and finishing trim

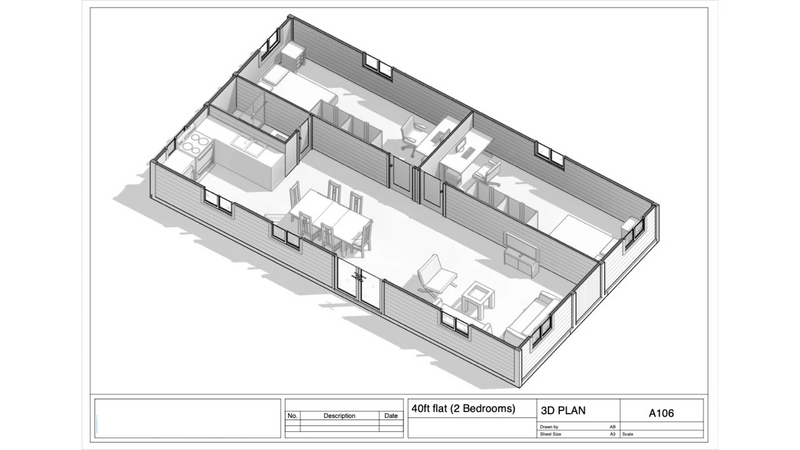

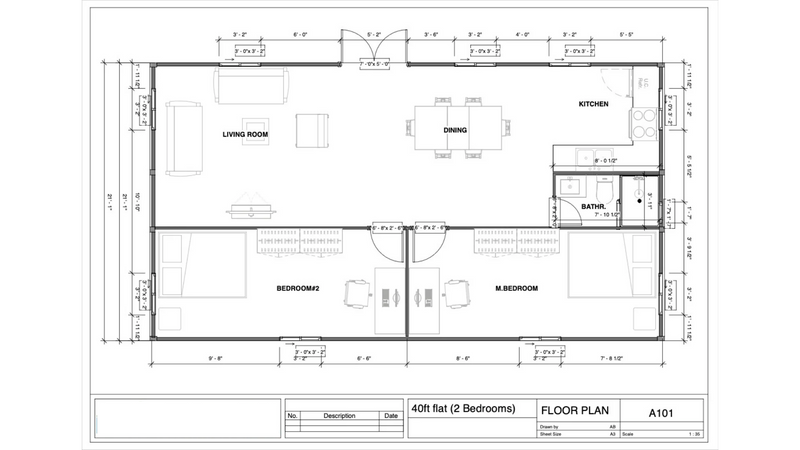

• Technical docs: Floor Plan, 3D View, Roof/Elevation Plans
