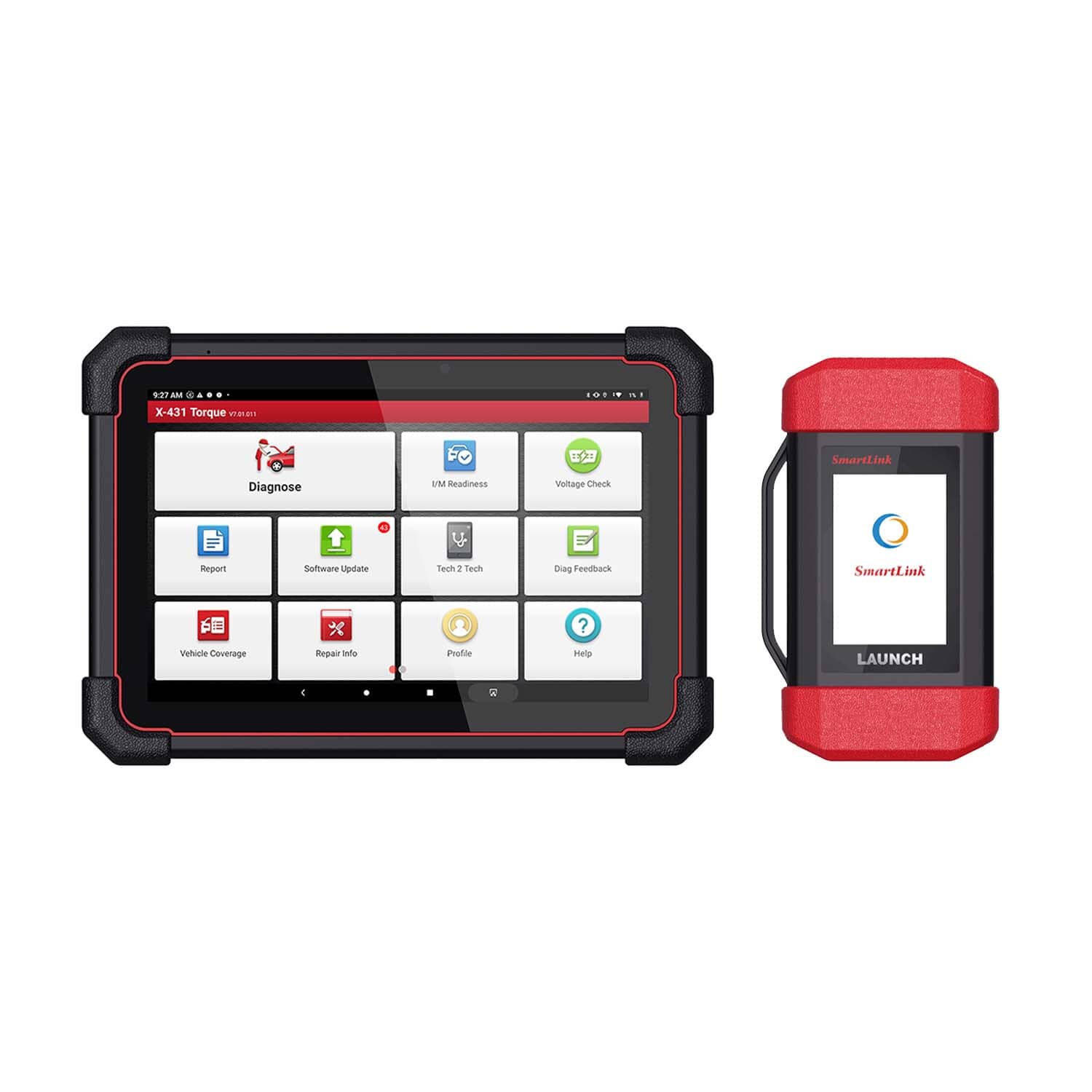

Launch Tech USA X431 Torque Link

Launch X-431 Torque LINK: Faster, Smarter, and Built for Modern Diagnostics

If you’re looking to boost your shop’s diagnostic efficiency, the X-431 Torque LINK is ready for the job. More than a standard scan tool, it acts like a central hub for fast, intelligent troubleshooting. Running Android 10.0 with a 2.0GHz quad-core processor and a sharp 10.1" display, this platform is built for technicians who demand speed and accuracy.

With complete system scanning, CANFD/DOIP capability, and remote diagnostic access, the Torque LINK gives you OEM-grade performance across a wide range of vehicles—wherever the work takes you.

Features & Specifications

Tool Part #: 321195101

Optimized for High-Speed Diagnostic Work

• 4GB RAM and 128GB storage for smooth operation

• Long-lasting battery designed for extended use

• SmartLink connector enables CAN FD and DOIP protocol support

OEM-Level Diagnostic Intelligence

• Performs DTC reading/clearing, data stream viewing, coding, active tests, special functions, and more at factory-level depth

• Automatic VIN reading for quick vehicle identification

• Supports I/M Readiness checks

• Remote diagnostic functions allow real-time assistance from afar

Built for the Future

• One-tap software updates to maintain the latest coverage

• Authorized access for FCA Secure Gateway unlocking

• TPMS capabilities include sensor activation, programming, learning, and diagnostics

Expandable & Technician-Friendly

Compatible with multiple optional modules, including:

• TPMS tire pressure gun

• ADAS calibration tools

• BST360 Bluetooth battery tester

• Immobilizer/IMMO programming devices

• Video scope

• And additional accessories

Technical Specs

• OS: Android 10.0

• CPU: 2.0GHz Quad-Core

• Screen: 10.1" display (1280 × 800)

• RAM: 4GB

• Storage: 128GB

• Cameras: 5MP front / 8MP rear

• Battery: 47,880 mWh (7.6V, 6300mAh)

• Connectivity: Dual-band Wi-Fi (2.4GHz / 5GHz)

• Ports: USB Type-A ×1, USB Type-C ×1

• Operating Temp: 0°C – 50°C

• Dimensions: 274 × 190.5 × 40.5 mm

Included in the Package

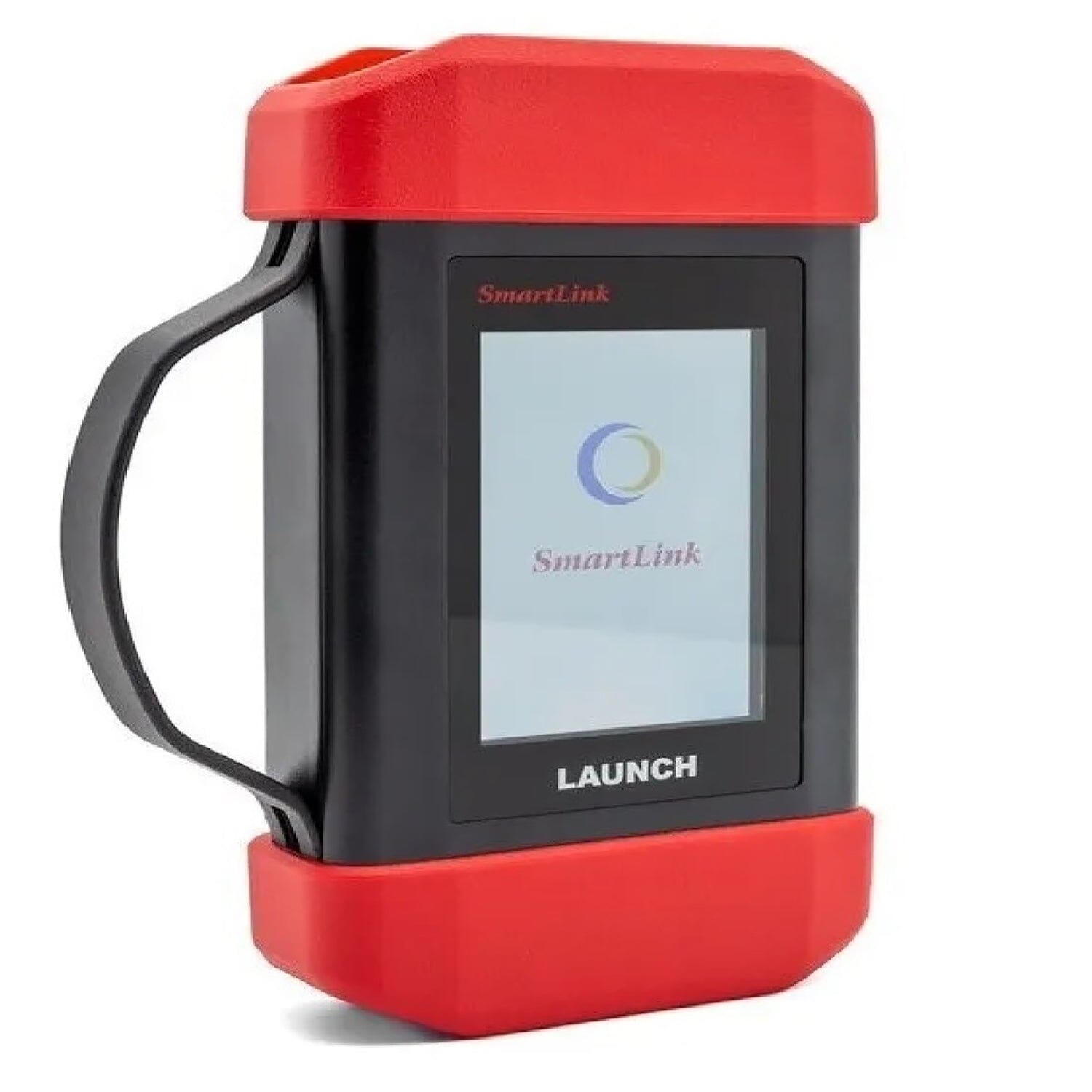

• SmartLink C diagnostic interface

• 5V / 5A power supply

• USB Type-A to Type-B cable

• USB Type-A to Type-C data cable

• OBD16 male to HDB15F main test cable (with DC)

• HD15M to OBDII 16-pin integrated adapter

• Multilingual quick start guide

• Universal PIN envelope

• Torque LINK tablet (4GB + 128GB)

• User manual
