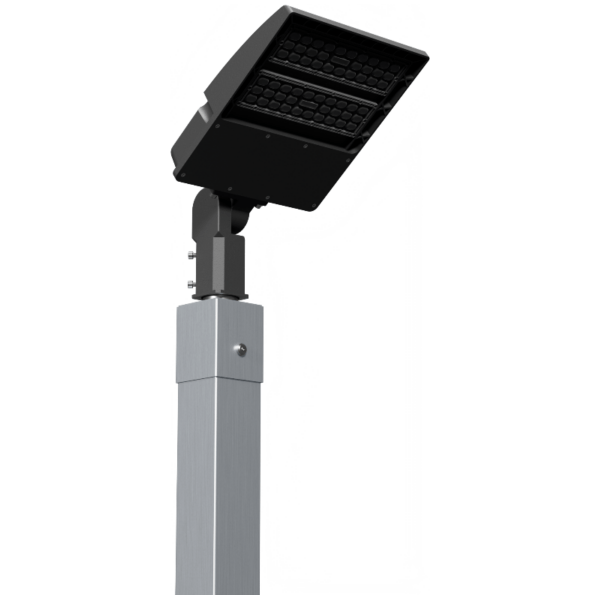

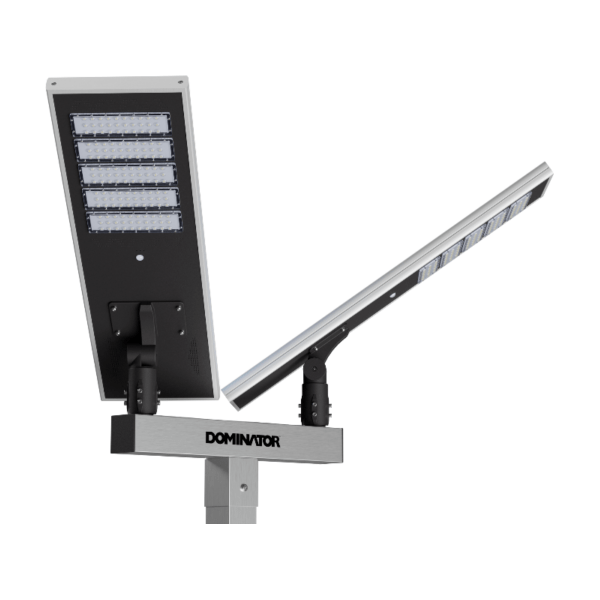

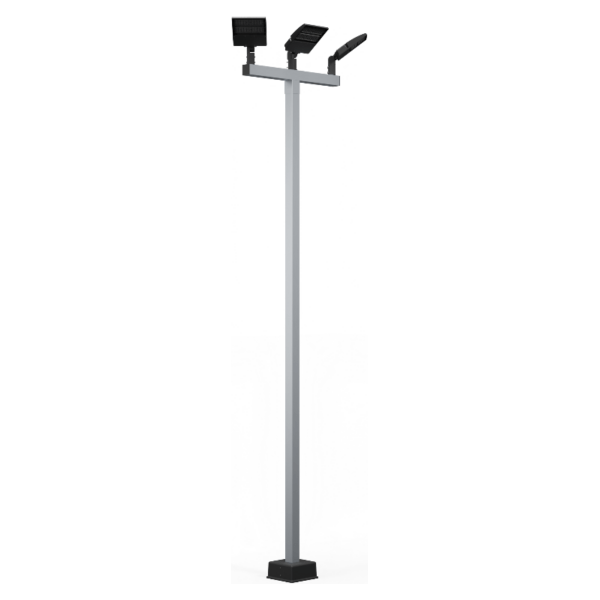

Dominator LED Light Full Assembly
Material:

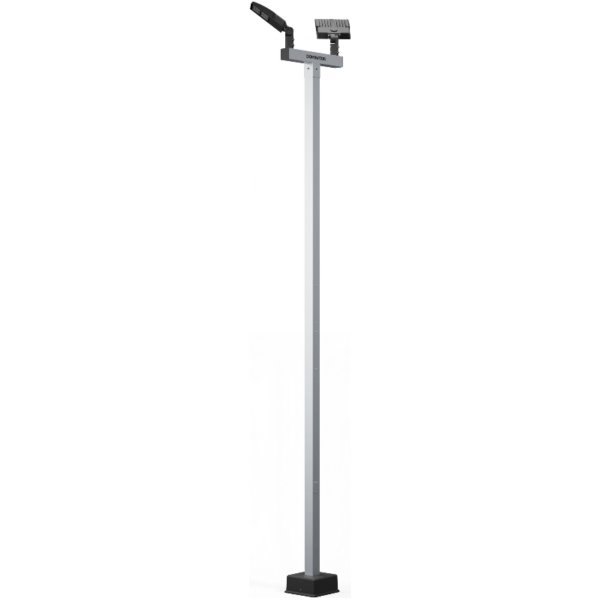

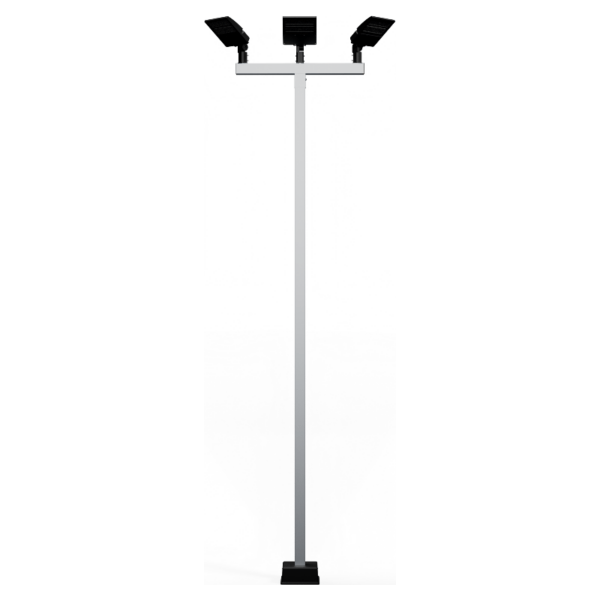

The Dominator square aluminum light pole is made of 6061 T6 aluminum which is the same material used in the watercraft, aircraft, and automotive industries. Each pole has 4-inch wide sides with a wall thickness of 0.187 inches.
Top Tenon Dimensions:

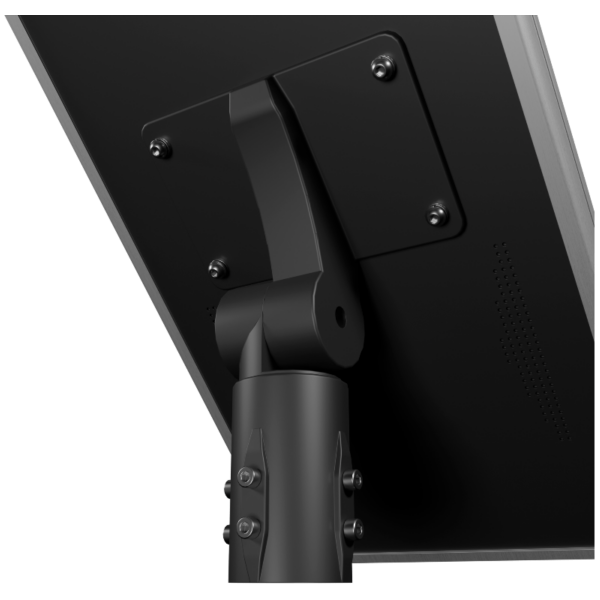

The poles are equipped with a slip-fitting aluminum top tenon. The tenon measures 2 3/8″ in outside diameter and 4 inches in length. Customers should verify the required tenon size for their specific project before placing an order.
Anchor/Mounting Bolts:
This light pole comes with four (4) J-shaped, fully galvanized anchor bolts and galvanized hardware, including three (3) hex nuts, one (1) lock washer, and two (2) flat washers. Additionally, one (1) steel anchor bolt template is included. For added convenience, the anchor bolts can be pre-shipped for a nominal surcharge.
Base:
The post features a welded base hinge, making it simple to raise and lower the light pole when necessary. The lightweight aluminum construction and innovative base design make installation and assembly quick and easy.
Handhole:
A handhole is positioned 36 inches above the ground, and it includes a cover with two (2) stainless steel bolts. For convenience, we recommend installing a switch and cover at this location to easily control the light's on/off function.
