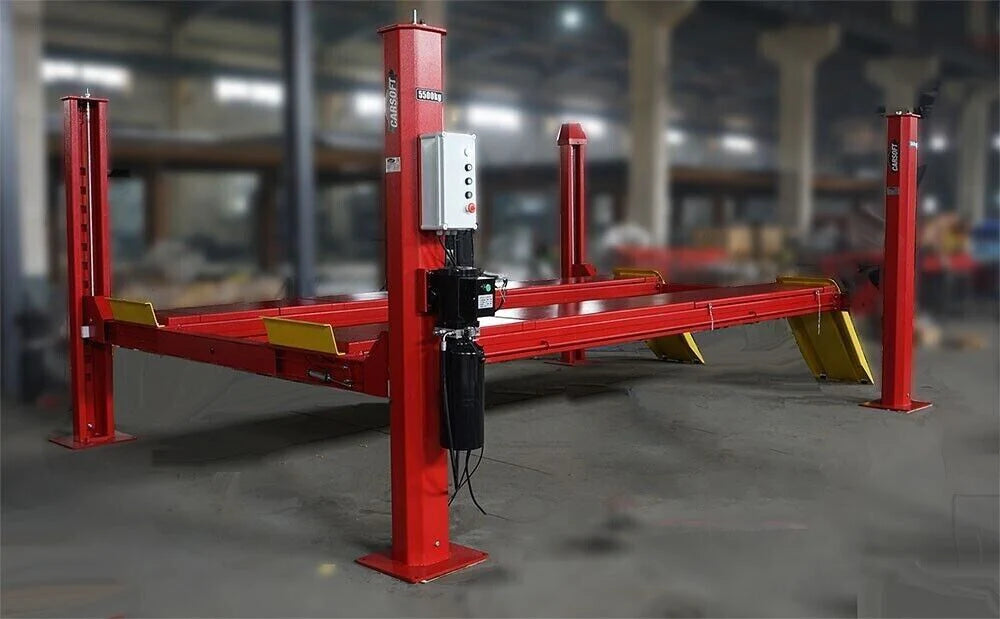

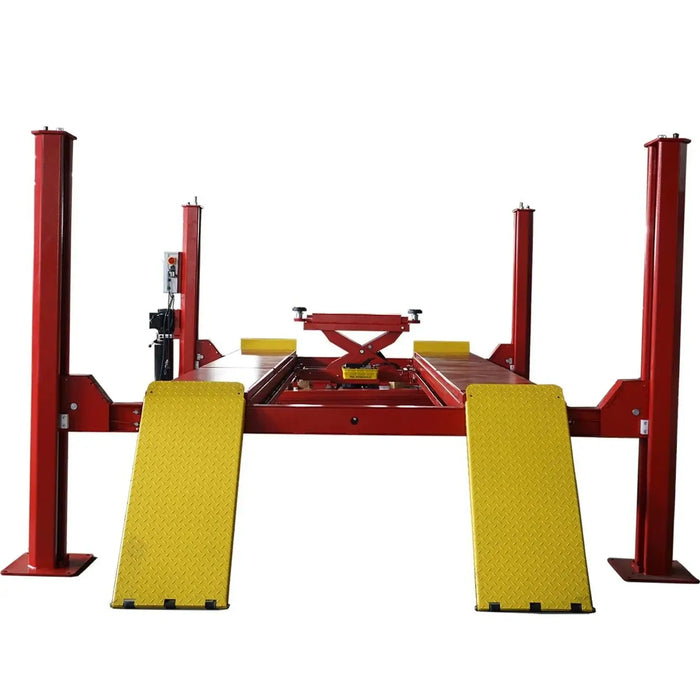

Katool Heavy Duty 4-Post Alignment Lift 15,000lbs (Rolling Jack Included) 4H150

Katool 4H150 4-Post Alignment Lift – Heavy-Duty Lifting with Maximum Safety

Handle trucks, vans, and heavy-duty vehicles effortlessly with the Katool 4H150 4-Post Alignment Lift. Designed for professional garages, this lift combines robust capacity, advanced safety features, and versatile functionality for efficient vehicle servicing.

Key Benefits

• Massive Lifting Capacity: 15,000 lbs supports trucks, vans, and heavy-duty vehicles with ease.

• CE Certified Safety: Exceeds 115% dynamic and 150% static load standards for reliable operation.

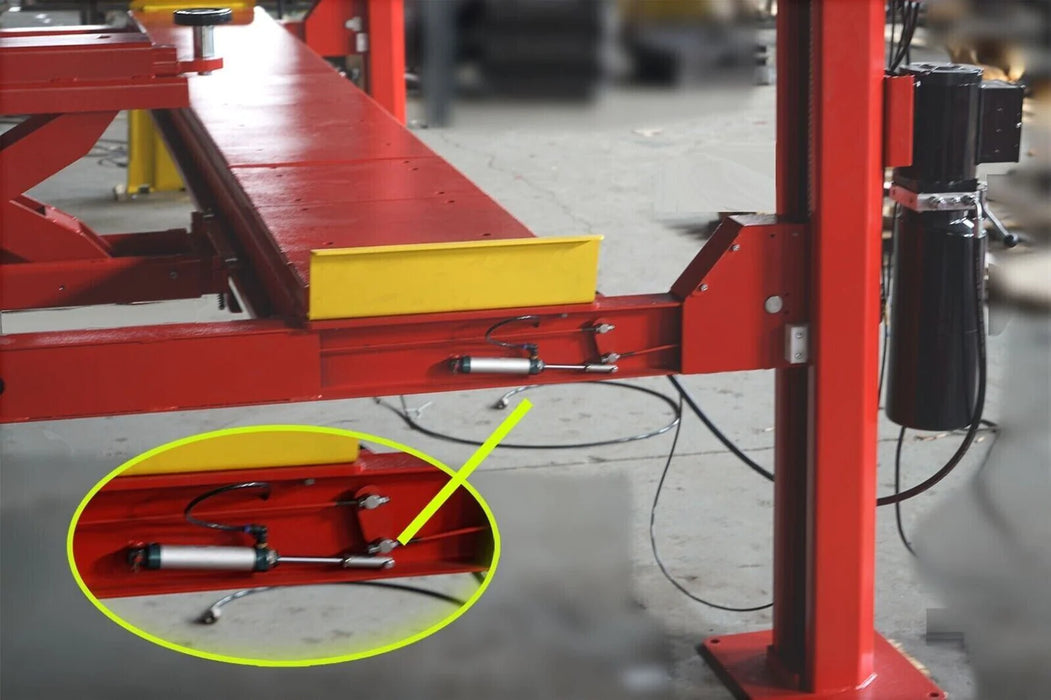

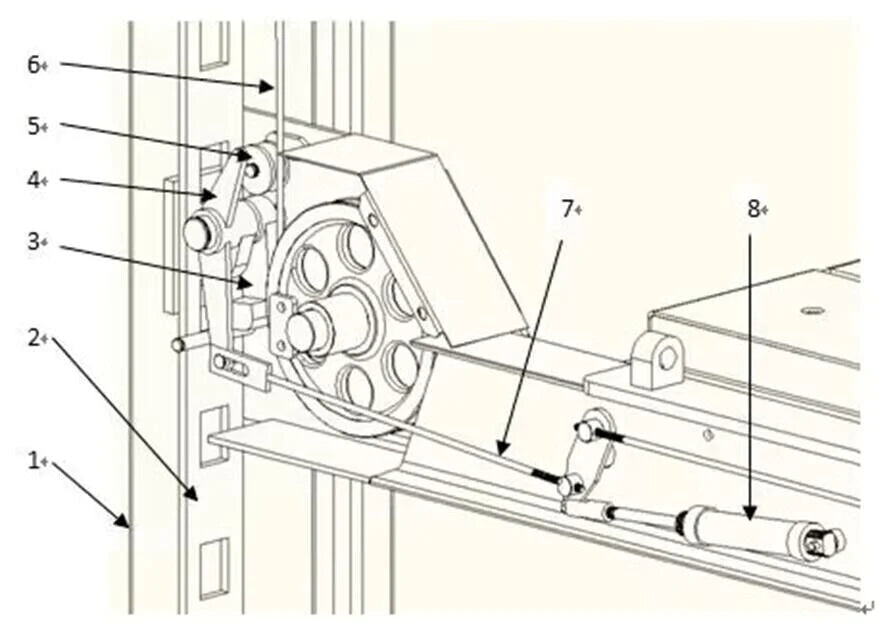

• Secure Safety System: Single-point release with primary and secondary mechanical locks ensures maximum protection.

• Flexible Operation: Adjustable platforms and ramps accommodate a wide range of vehicle sizes.

• Enhanced Functionality: Integrated wheel alignment turntables and a 6,000 lb rolling jack expand your service capabilities.

• Power Options: Operates on 220V standard, with optional 110V compatibility.

Features

• Heavy-duty 15,000 lb lifting capacity

• CE certified for superior safety standards

• Easy-release single-point safety locks

• Adjustable platforms, ramps, and ladders for versatile vehicle access

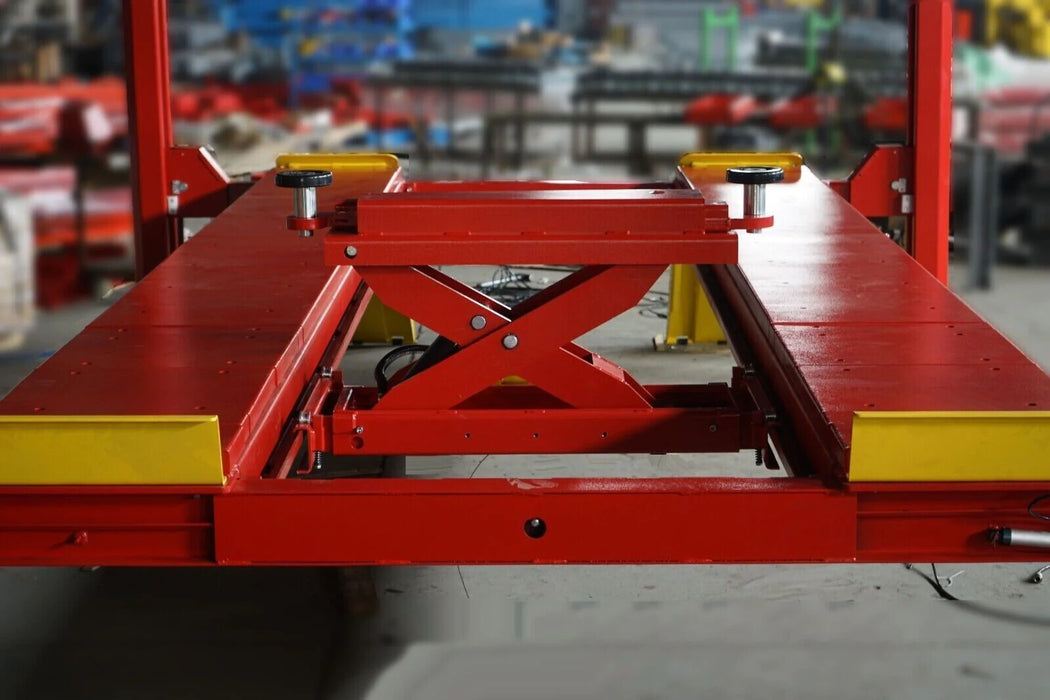

• Wheel alignment turntables and 6,000 lb rolling jack included

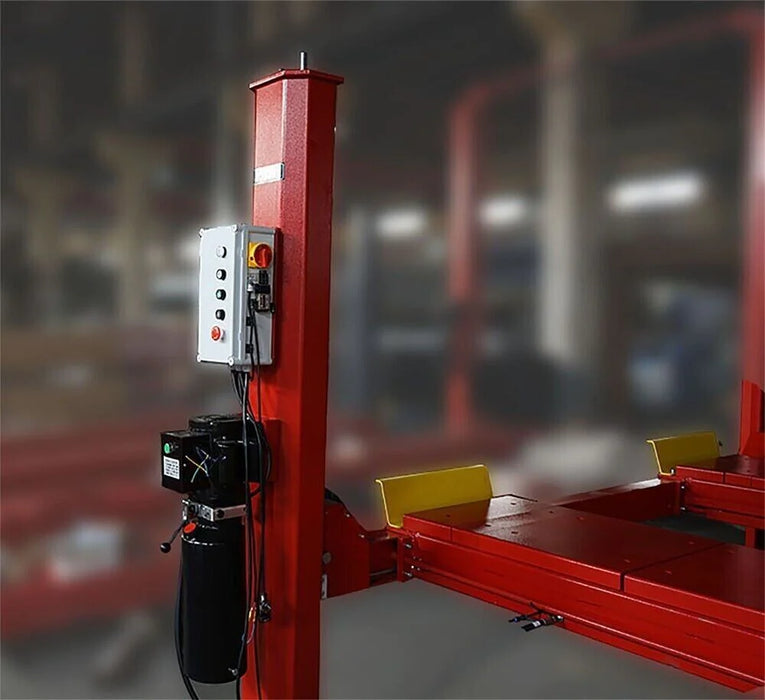

• Reliable 220V motor operation (110V optional)

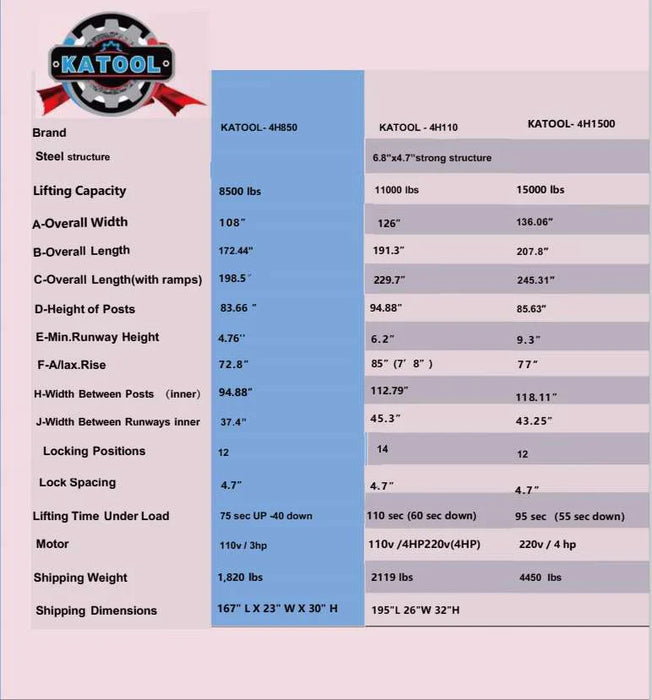

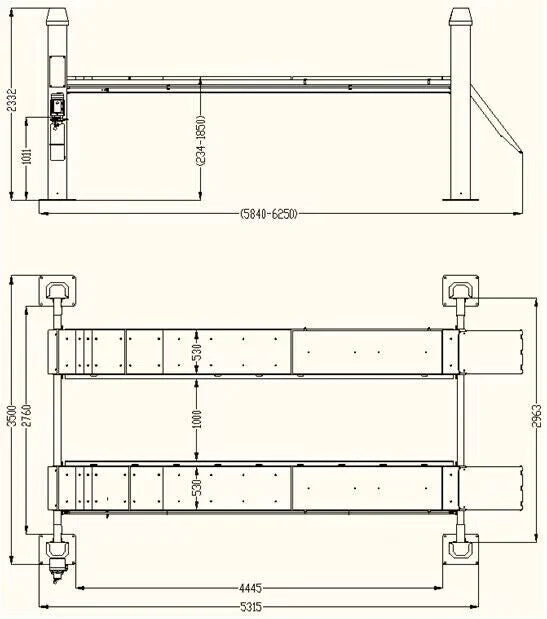

Specifications

• Lifting Capacity: 15,000 lbs (4,990 kg)

• Max Lifting Height: 92.52 in (2,350 mm)

• Lifting Time: Up – 95 sec, Down – 55 sec

• Post Height: 85.63 in (2,175 mm)

• Overall Width: 136.06 in (3,456 mm)

• Overall Length (with Ramps): 245.31 in (6,231 mm)

• Inside Columns: 118.11 in (3,000 mm)

• Min Runway Height: 9.3 in (236 mm)

• Motor: 220VAC/60HZ/1PH

• Net Weight: 4,850 lbs (2,200 kg)

Note: Proper concrete installation required (consult a professional).

Warranty: 12 Months All Parts
