BendPak PCL-18B-4 Mobile Column Liftss - High Voltage (460/360V) - Set of 4

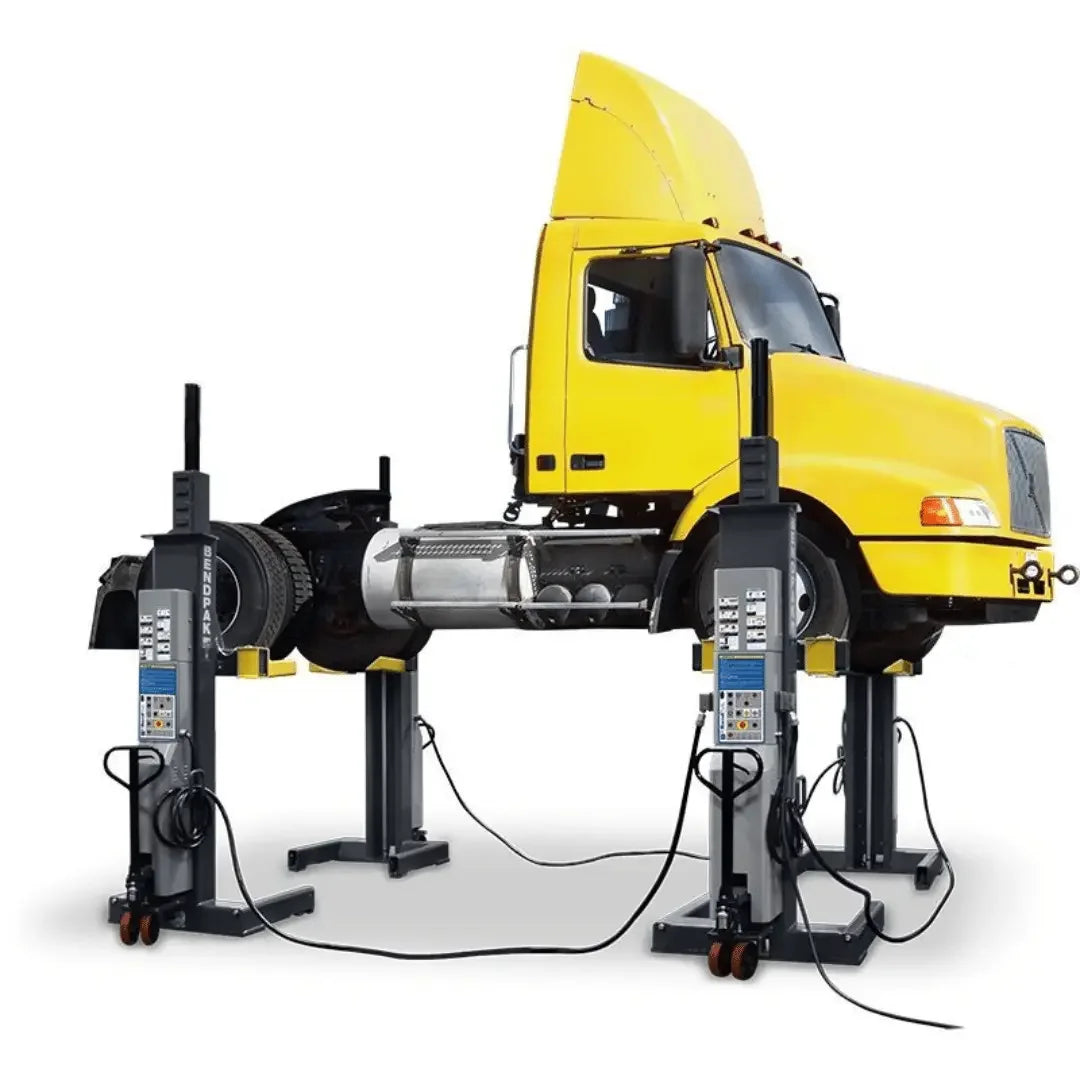

This PCL-18B mobile column lifts system comes in a set of 4. When combined, the system lifts up to 72,000 lbs. Ideal for two-axle vehicles. Sets of 2, 6 and 8 are also available.
Set of 4 Mobile Column Lifts
With a full set of mobile column lifts, you'll lift vehicles up to 72,000 lbs. This weight class encompasses most heavy-duty and commercial semi-trucks. If you need more lifting power, upgrade to a set of 6 or double your capability with a set of 8. For a frame-engaging adapter, check out the PCL-18B cross beam. This handy tool allows you to safely remove tires and perform full wheel service on your vehicle.
The BendPak PCL-18B-4 mobile column lift system is designed to handle heavy-duty lifting with unmatched strength and reliability. Sold as a set of 4 columns, each rated at 18,000 pounds, this package provides a combined lifting capacity of 72,000 pounds. Built for professional fleets, heavy equipment service shops, and commercial garages, the PCL-18B-4 is engineered to handle large trucks, buses, and other oversized vehicles with ease.
This system offers advanced mobility, allowing technicians to position and operate the columns anywhere in the shop floor without being restricted to a fixed lift bay. Each column is equipped with heavy-duty wheels that make movement effortless despite the substantial weight of the equipment. The lifts can be easily synchronized, ensuring that all four columns operate in unison to maintain safe and even lifting at all times.
The control system features user-friendly push-button operation, giving the operator precise control of the lift. Each column has its own control panel, yet when linked, they function as a fully synchronized system. This eliminates uneven lifting and reduces the risk of strain or stress on the vehicle chassis.
Safety is a central focus of the BendPak PCL-18B-4. The lifts are equipped with automatic safety locks that engage as the vehicle is raised, ensuring secure holding at all times. Additionally, the hydraulic system is designed with multiple redundancies, including flow restrictors and fail-safe hydraulic circuits, providing peace of mind during operation.
Contact us for more information.
Product Features
- 18,000-lb. individual column capacity / 108,000-lb. maximum system capacity
- Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
- Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
- 208-240V, 3-phase main power system - optional voltages available upon request
- SINGLE, PAIR or TEAM operation
- For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions
- Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights
- Two-speed lowering option – turtle or rabbit speed settings
- Each column is equipped with a warning light and audible alarm for critical warning alerts
- Emergency shut-off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator
- Extended forks accommodate wide tires and deep wheel configurations
- Multi-width wheel forks with locking pins accommodate the widest range of wheels, eliminating the need for specialty wheel adapters
- Tandem 8” diameter polyurethane covered steel wheels with sealed roller bearings easily roll over dirt and debris
- Heavy-duty steel carriage rollers feature turned, ground and polished axle pins
- Manual safety override valves on each column permit the lift to be lowered in the event of a power outage without the need for manual hand cranks
- Durable forklift pockets provide simplistic handling when moving the lift columns from one facility to another
- Inverted hydraulic cylinders feature an integrated safety valve to prevent accidental uncontrolled lowering in the event of oil pressure loss
- Multiple, automatic, independent safety locks spaced every four inches ensure safe operation
Product Specifications
| Lifting Capacity | 18,000 lbs. (8,165 kg) |
| A - Overall Height (RAISED) | 101” (2,565 mm) |
| B - Overall Height (LOWERED) | 146.5” (3,721 mm) |
| C - Max. Lifting Height | 71.5” (1,889 mm) |
| D - Overall Depth | 48.75” (1,238 mm) |
| E - Overall Width | 45” (1,143 mm) |
| F - Chassis Length | 32.25” (819 mm) |
| G - Min. Lifting Fork Width | 9.5” (241 mm) |
| H - Max. Lifting Fork Width | 35” (889 mm) |
| I - Lifting Fork Length | 11.5” (292 mm) |
| Turning Circle | 40” (1,016 mm) |
| Column Weight | 1,450 lbs. (657 kg) |
| Lifting Speed | 85 Seconds |
| Shipping Weight per Column | 1,498-lbs. (679 kg) |
| Shipping Dimensions per Column | 106" x 55" x 41" (2,696 mm x 1,397 mm x 1,041 mm) |
