BendPak HD-7PXW 7,000 lb. 4 Post Lift
BendPak HD-7PXW 7,000 lb. 4 Post Lift is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Price Match Guarantee
Price Match Guarantee
We’re committed to offering the best online prices—if you find a lower price from an authorized retailer, we’ll beat it. Our 100% Price Beat Guarantee excludes promotions, auction sites, and exchanges, and factors in item price, tax, and shipping. For price match inquiries, contact us at (833) 932-9683
Delivery and Shipping
Delivery and Shipping
We offer fast and reliable shipping across the continental U.S., with free shipping available on most orders (exclusions may apply based on brand and product type). Orders are typically processed within 1–2 business days and transit time is usually 4–7 business days. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your contact details are accurate at checkout. For questions about delivery timelines, shipping eligibility, or special requests, feel free to contact us directly. See Policy.
BendPak HD-7PXW 7,000 lb. 4 Post Lift
✅ #1 Authorized Online Dealer
🚚 Free Shipping & No Sales Tax
💲 We Beat The Lowest Price
📦 Fast 4-7 Day Delivery
🛡️ Manufacturer’s Warranty Included
❓Questions? Call Our Experts: (833)-932-9683
Description
Description

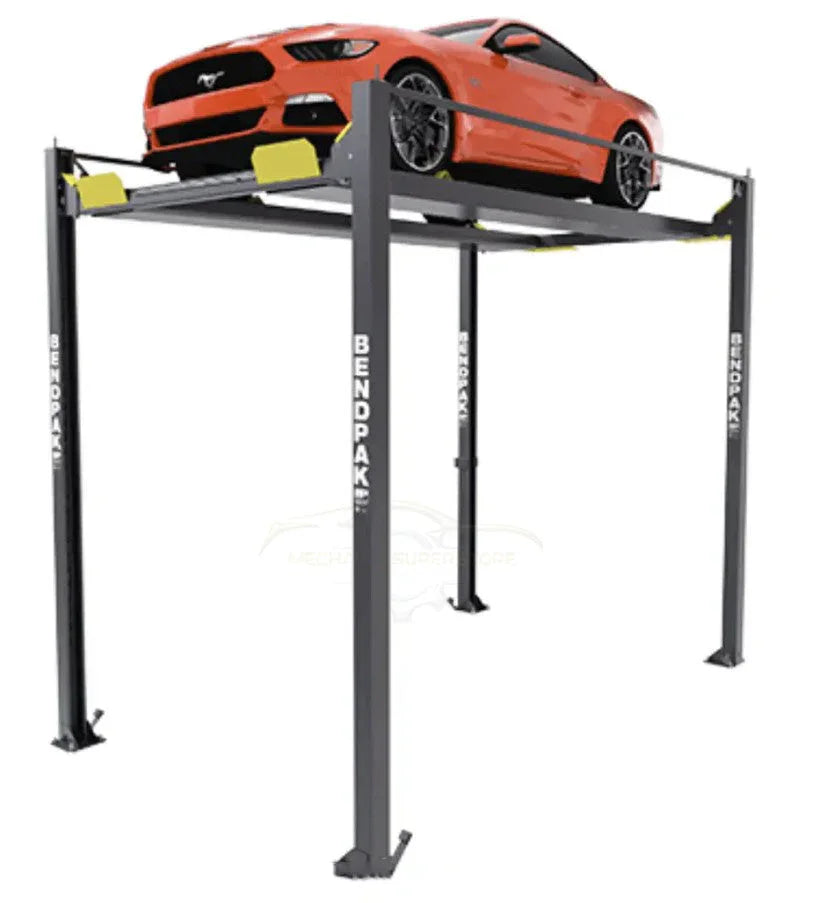

BendPak HD-7PXW 7,000 lb. 4 Post Lift
7,000-lb. Capacity / Super-Tall Four-Post Lift / Vehicle Display Platform

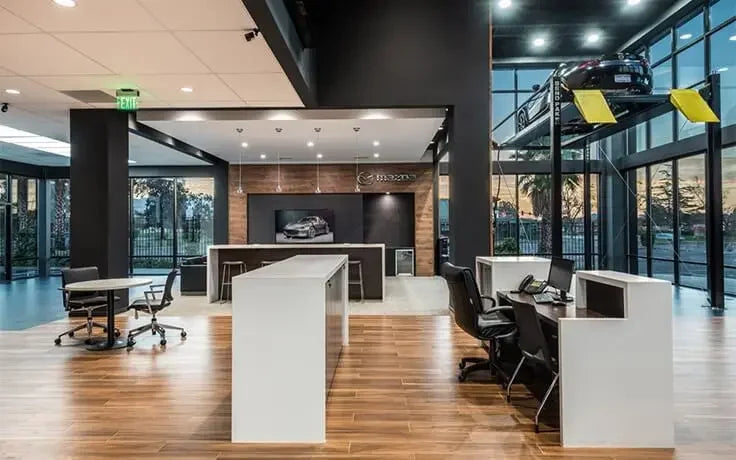

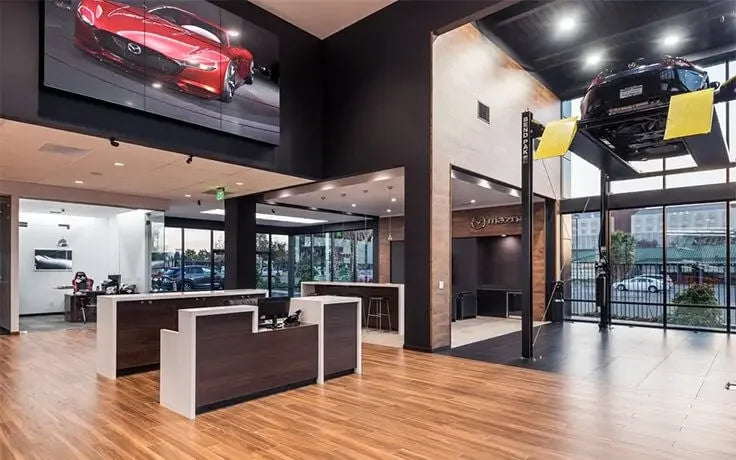

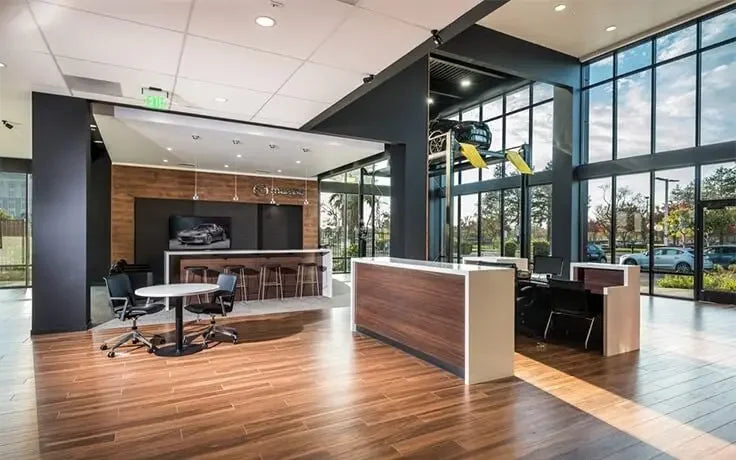

The HD-7PXW 4 Post Lift is a high-rise platform designed for both vehicle service and display applications. With a 7,000-lb. lifting capacity and extended 188” runways, it accommodates a wide range of vehicle sizes and wheelbases. Its extra-tall lifting height provides more vertical clearance than standard models, making it well-suited for stacking taller vehicles or showcasing inventory in a dealership setting.
This 4 post car lift includes the same safety and convenience features found across the BendPak lineup. A one-touch pneumatic release system disengages all column locks simultaneously, while a single hydraulic cylinder positioned beneath the power-side runway delivers smooth lifting.
Heavy-duty components such as aircraft-quality cables, self-lubricating rollers, and internal anti-sway slider blocks are built in for durability and stability. Multi-position safety locks, adjustable lock ladders, and non-skid ramps further enhance usability and safety.
Product Features
- 7,000-lb. maximum lifting capacity
- Super tall rise delivers 12-feet of lifting height
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8” aircraft cable
- Rugged 1.25” roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Ramps feature non-skid surface
- Push-button pneumatic safety release
Product Specifications
Capacity
| Lifting Capacity: | 7,000 lbs. (3,175 kg) |
| Max. Capacity / Front Axle: | 3,500 lbs. (1,588 kg) |
| Max. Capacity / Rear Axle: | 3,500 lbs. (1,588 kg) |
Rise
| A - Min. Runway Height | 5" (127 mm) |
| B - Max. Rise | 140.25" (3,562 mm) |
| C - Max. Lifting Height | 145.25" (3,689 mm) |
| Lifting Time: | 60 Seconds |
Outside Dimensions
| D - Overall Width | 110.25" (2,800 mm) |
| E - Overall Length | 198" (5,029 mm) |
| F - Overall Length (includes ramps) | 213" (5,688 mm) |
| G - Height of Columns | 158" (4,013 mm) |
| Top Lock Height | 143.82" (3,653 mm) |
Inside Dimensions
| H - Width Between Columns | 100.25" (2,546 mm) |
| I - Drive-Thru Clearance | 86.5" (2,197 mm) |
Runways
| J - Runway Width | 19" (483 mm) |
| K - Length of Runways | 182.25" (4,629 mm) |
| L - Width Between Runways | 35" (889 mm) or 41" (1,041 mm) |
| M - Runway Centerline | 57" (1,448 mm) or 63" (1,600 mm) |
| N - Outside Edge of Runways | 75.75" (1,924 mm) or 82" (2,083 mm) |
Minimum Wheelbase
| Rated Capacity | 135" (3,429 mm) |
| 75% Capacity | 115" (2,921 mm) |
| 50% Capacity | 95" (2,413 mm) |
| 25% Capacity | 80" (2,032 mm) |
Locking
| Locking Positions | 31 |
| Lock Spacing: | Every 4" (102 mm) |
Power Unit
| Motor | 208-230 VAC / 50-60 Hz / 1Ph |
| Noise | 45 dB |
Shipping
| Weight: | 2,254 lbs. (1022 kg) |
| Dimensions (LxWxH): | 192" x 22" x 31" (4,876 mm x 558 mm x 787 mm) |
Pick Up and Delivery
Our Pick Up locations for Bendpak/Dannmar/Ranger are located in Santa Paula, California & Theodore, Alabama.
Call, text, or chat with us if you have questions.
Downloads
Brochure
Manual
Warranty
