Olympic 4P-4032XL Three Level 3-Car Stacking Four Post Lift

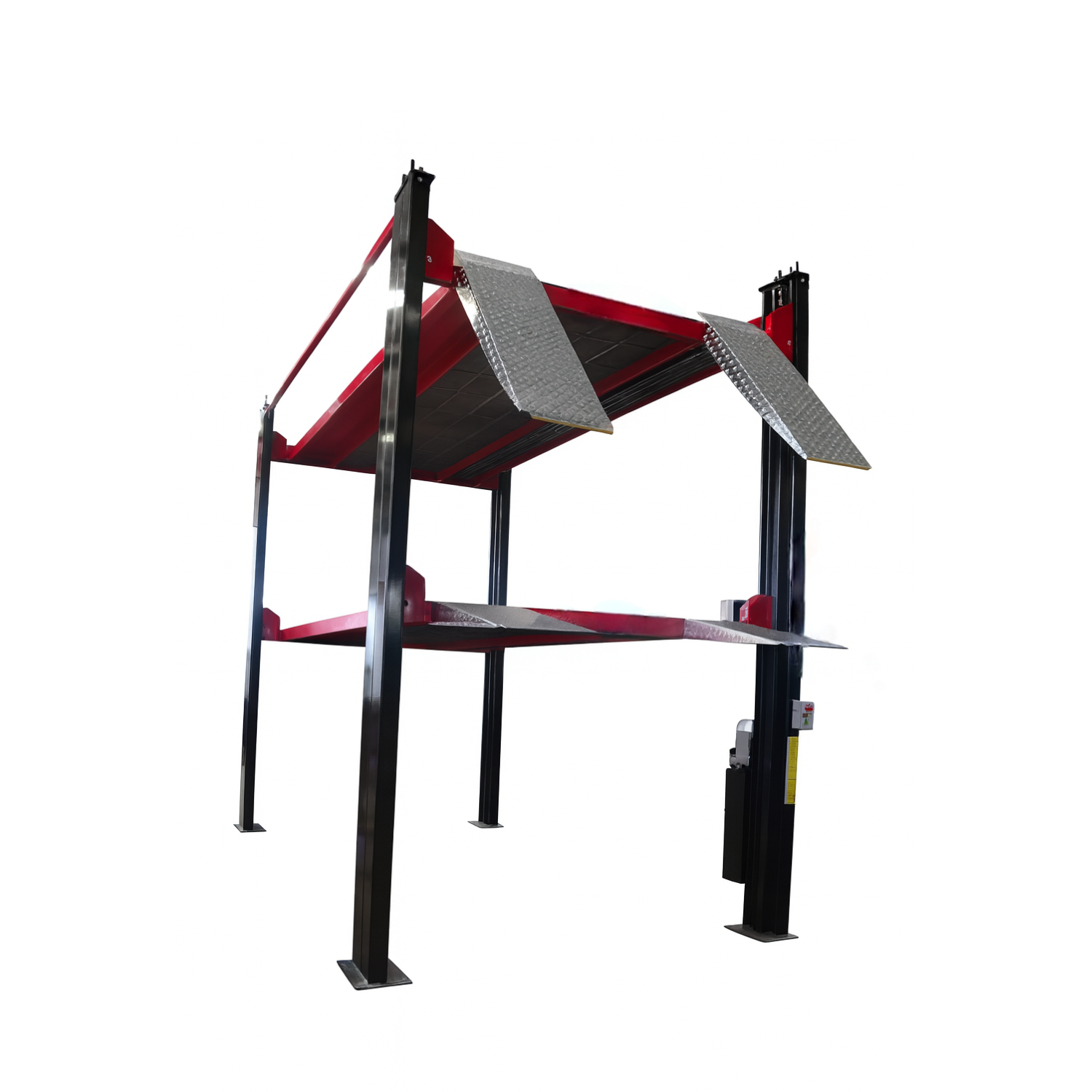

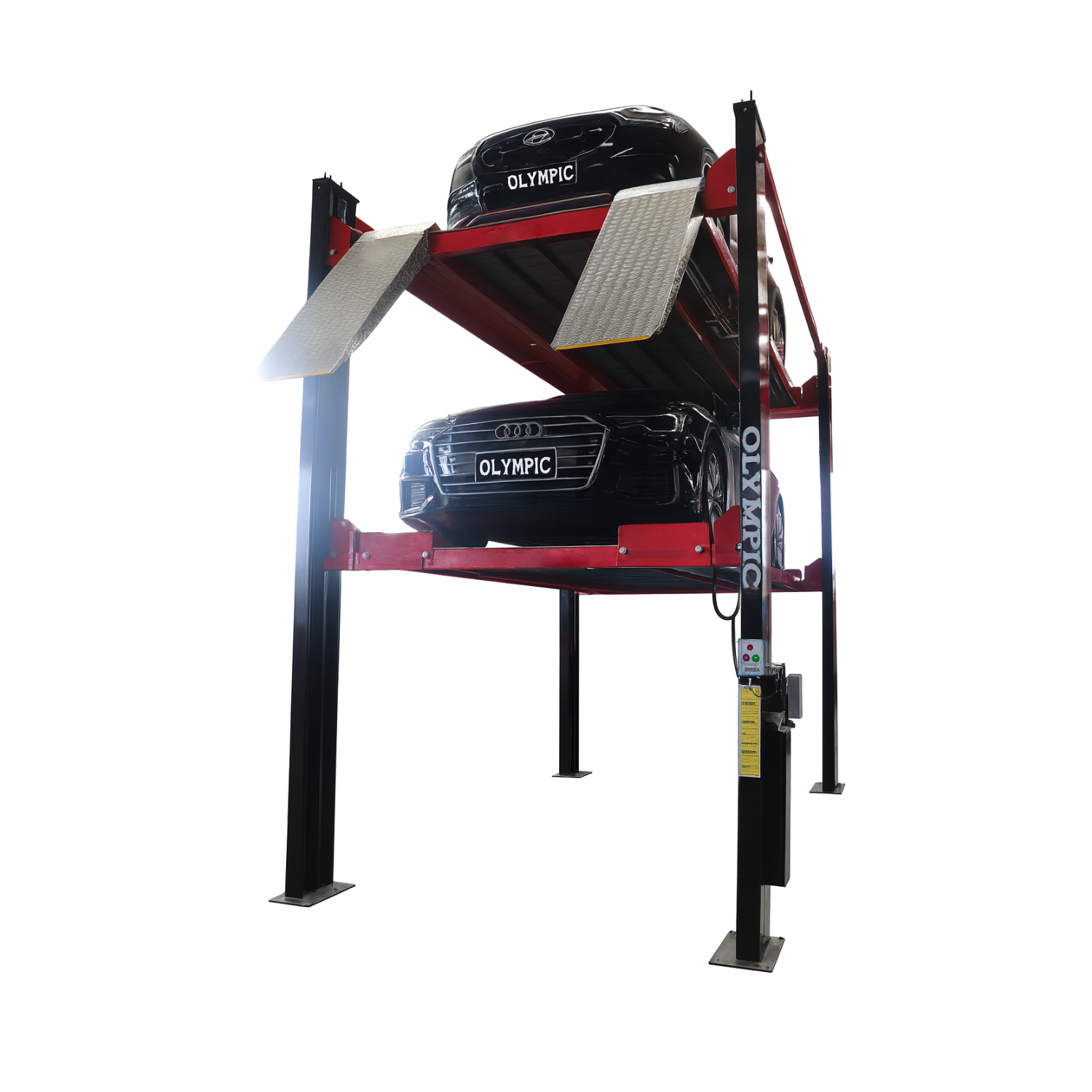

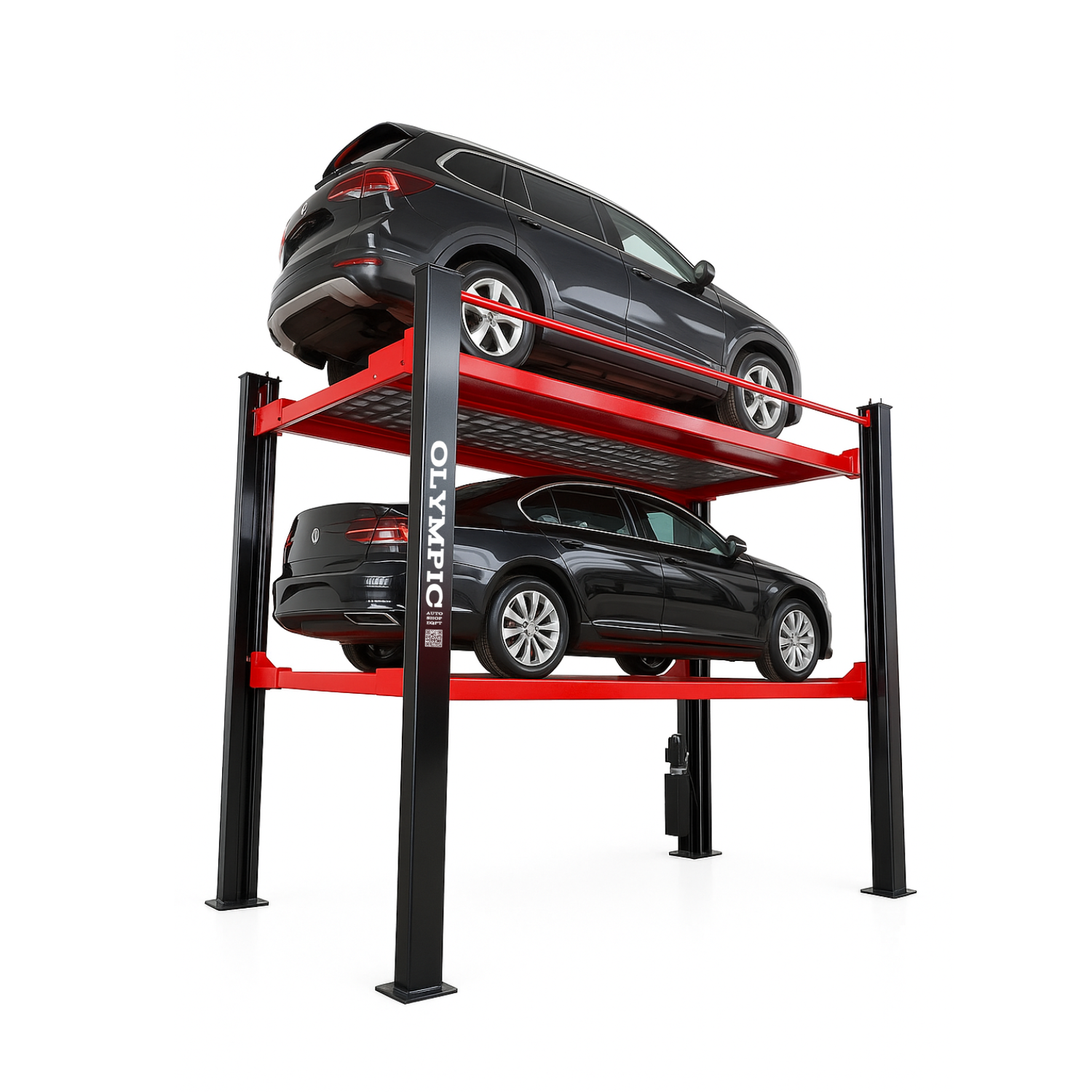

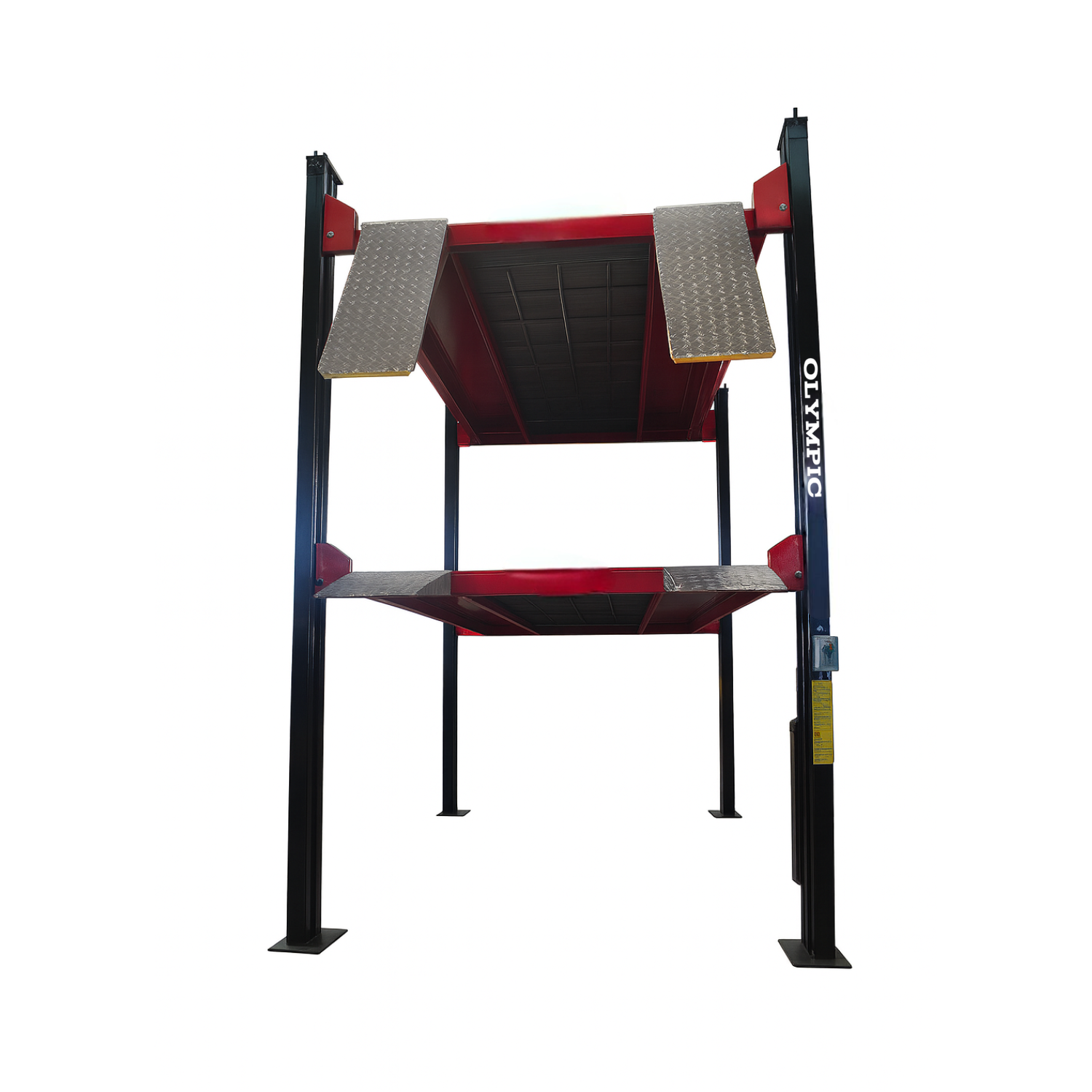

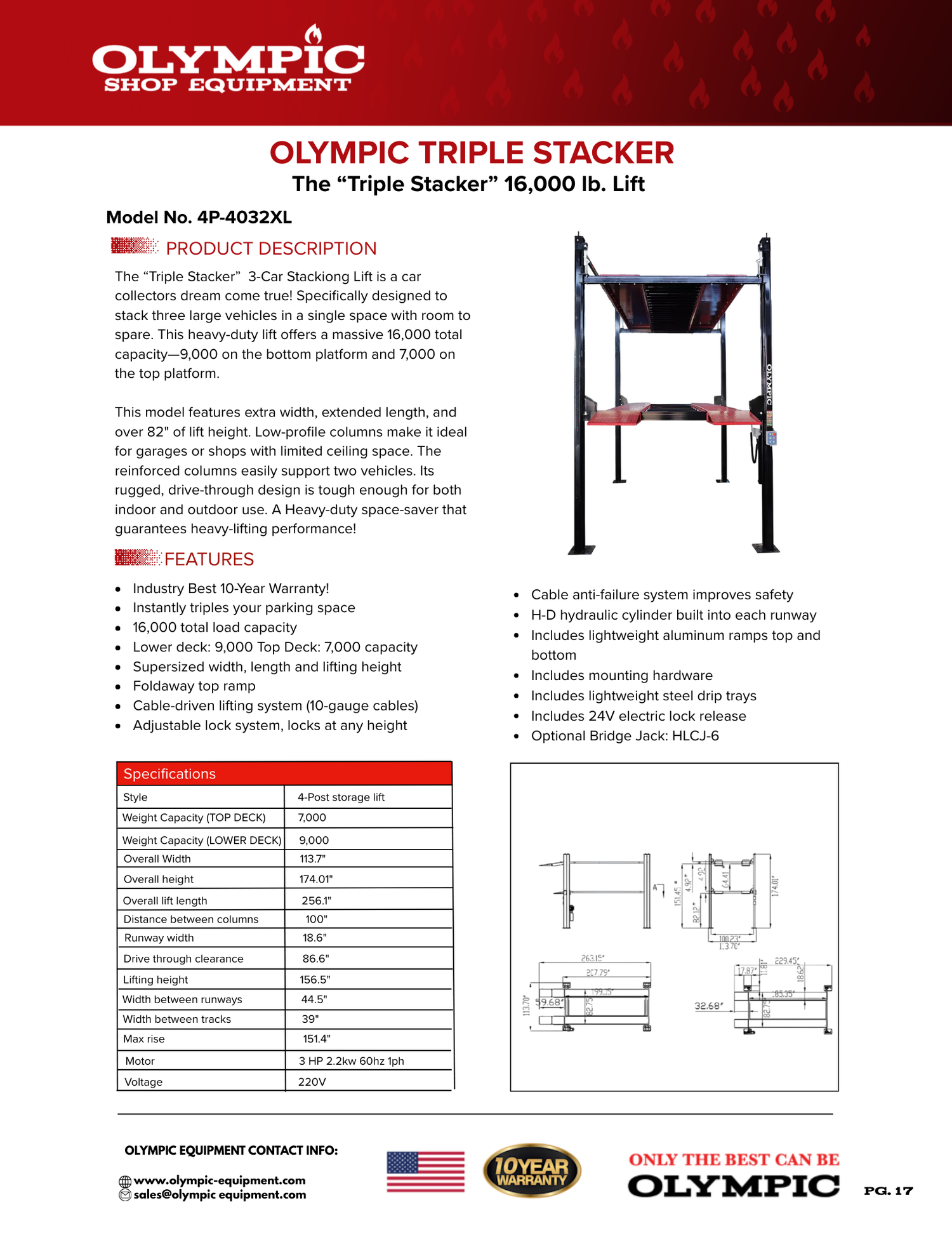

Olympic 4P-4032XL / “Triple Stacker” 3-Car Storage Lift
Triple your parking capacity with the ultimate collector’s lift.
The Triple Stacker is designed to stack 3 full-size vehicles in one space. Big enough to accommodate classic Cadillacs! With a massive 16,000 lb. total capacity (9,000 lower + 7,000 upper), extra width, and over 82″ lift height, this heavy-duty storage system is perfect for serious collectors.
Capacity: 16,000 lbs. (9,000 + 7,000) | Drive Through Width: 86.6″ | Max. Lift Height: 156.5″
*GENERALLY A 60-90 DAY WAIT*
Key Features
- Industry Best 10-Year Warranty!
- 16,000 lb. total capacity (Lower 9,000 / Upper 7,000)
- High-quality Q235 spec structural steel
- Instantly triples your parking space
- Extra width, length, and lift height
- Foldaway top ramp

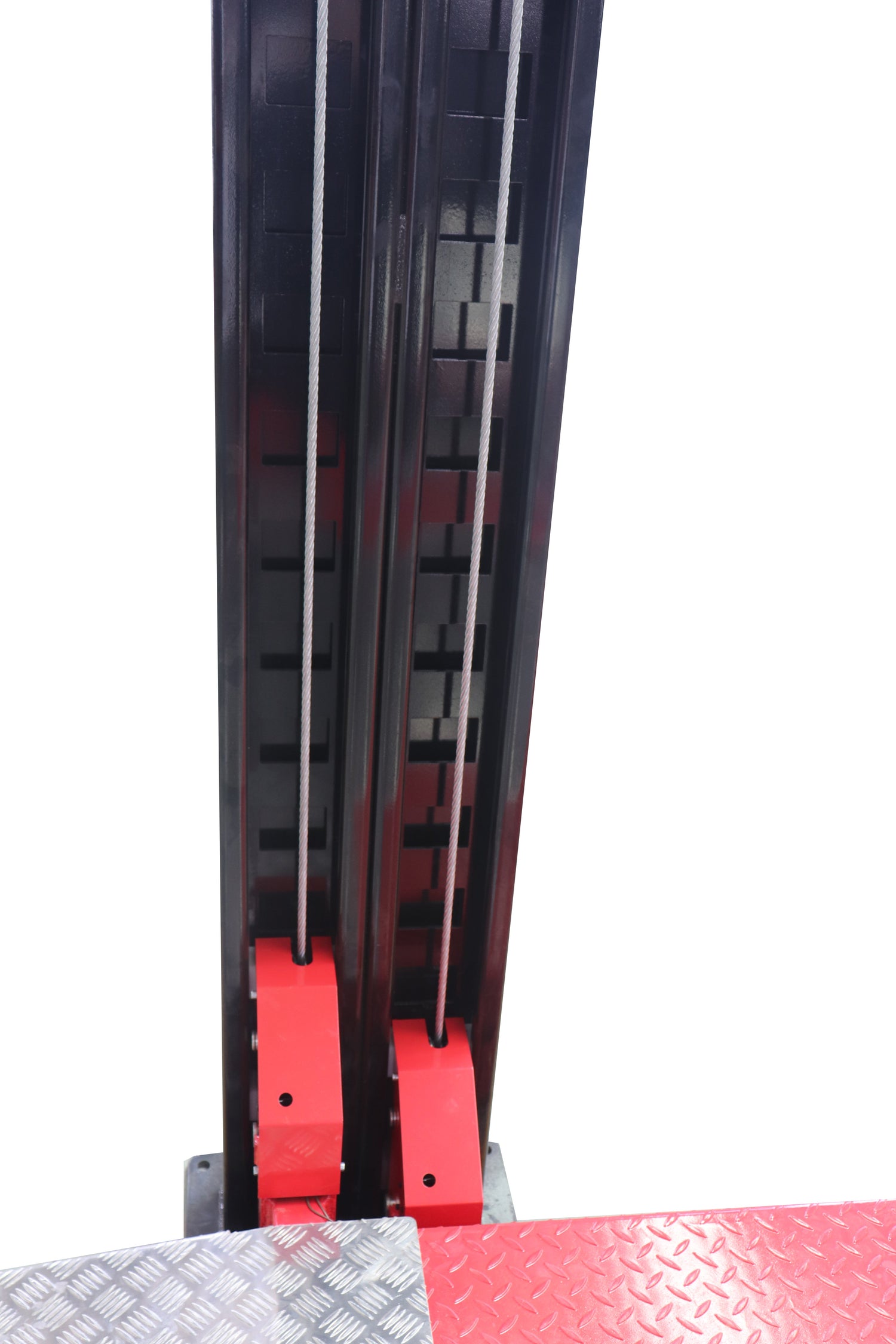

- Cable-driven lifting system (10-gauge cables)
- Adjustable lock system, locks at any height
- Cable anti-failure safety system
- Heavy-duty hydraulic cylinders

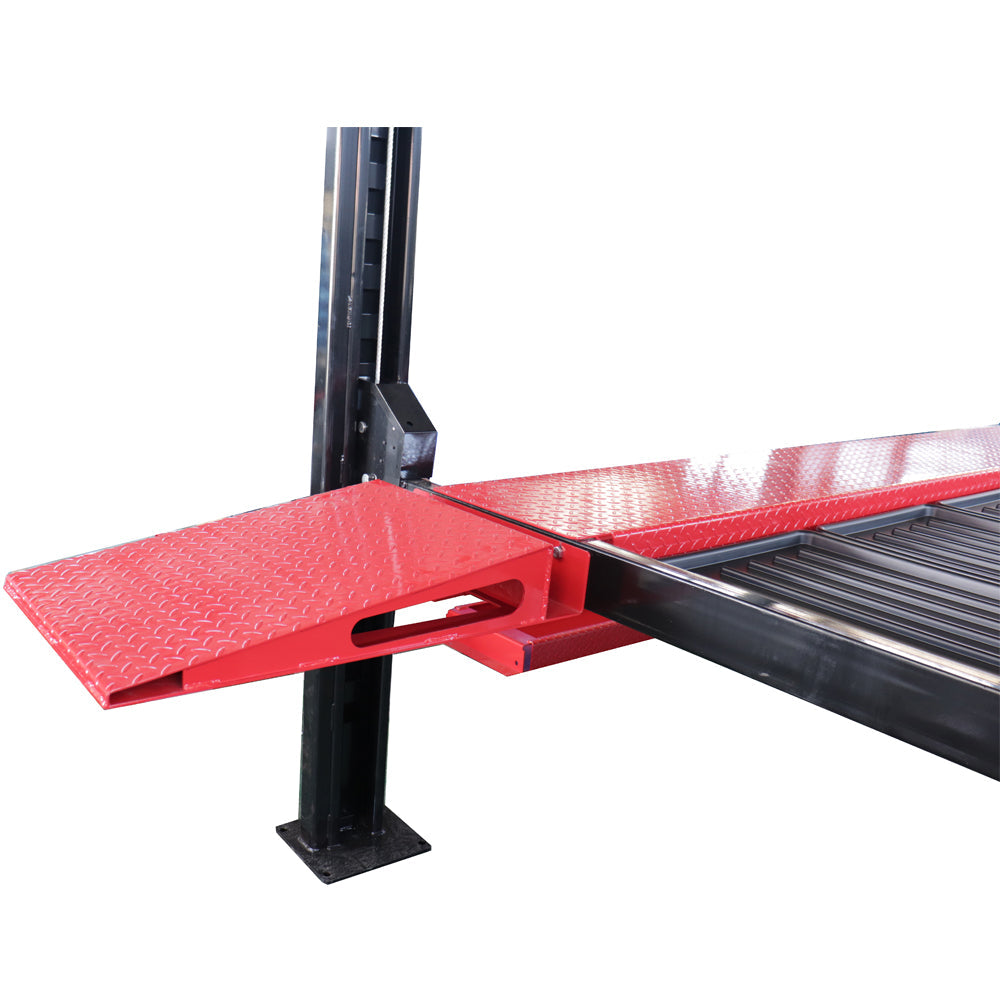

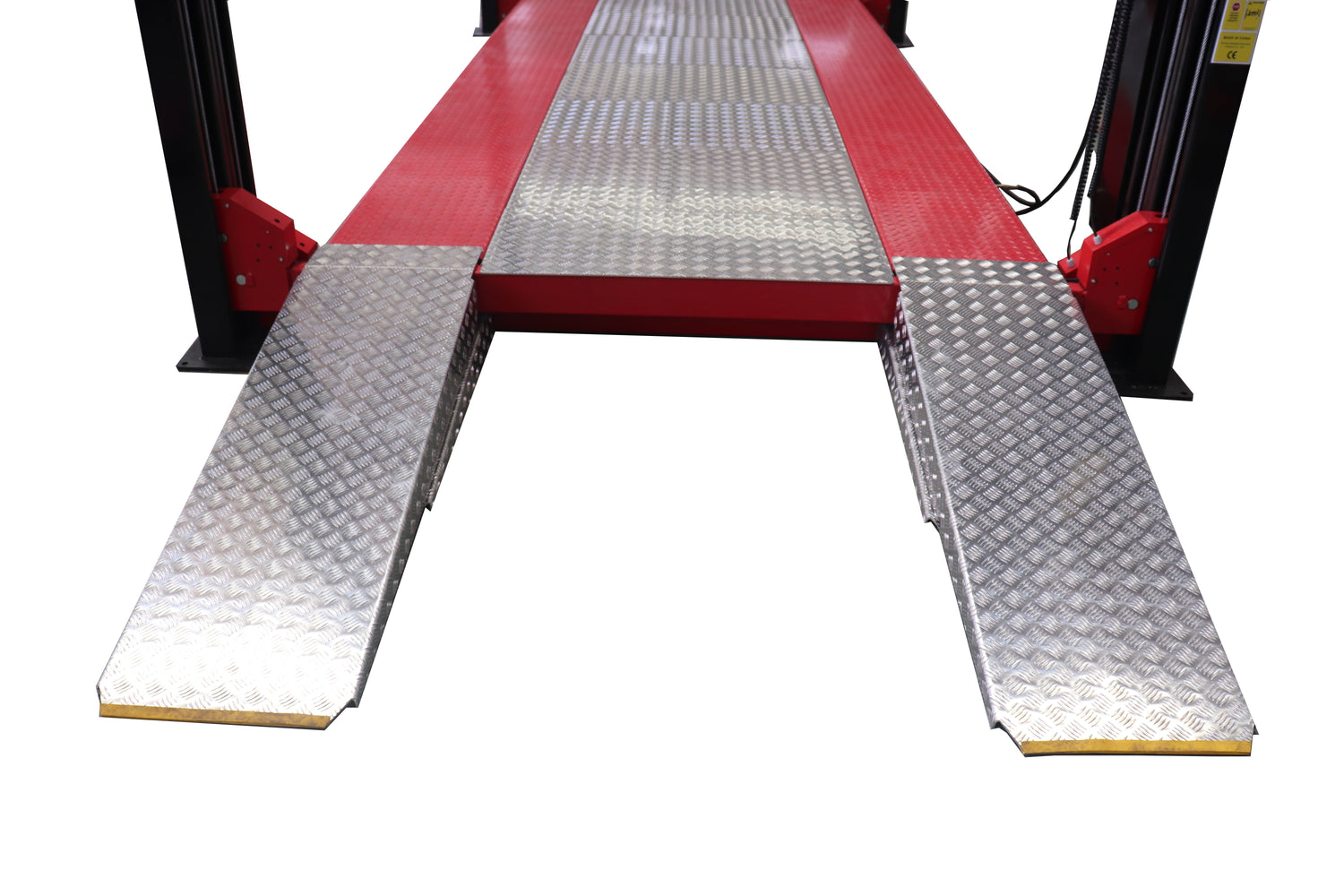

- Aluminum ramps included (top and bottom)
- Steel drip trays included

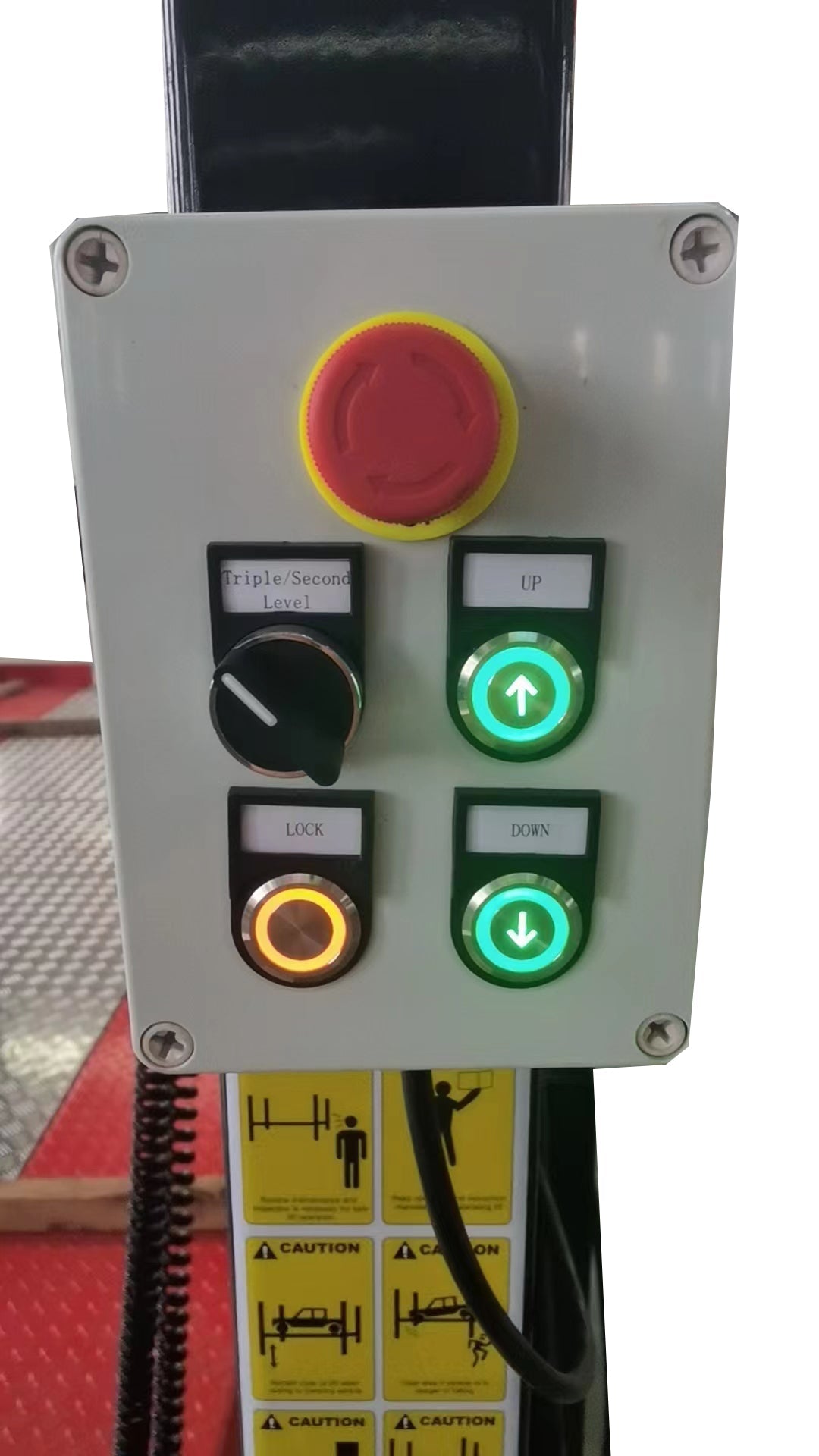

- 24V electric lock release
- Mounting hardware included

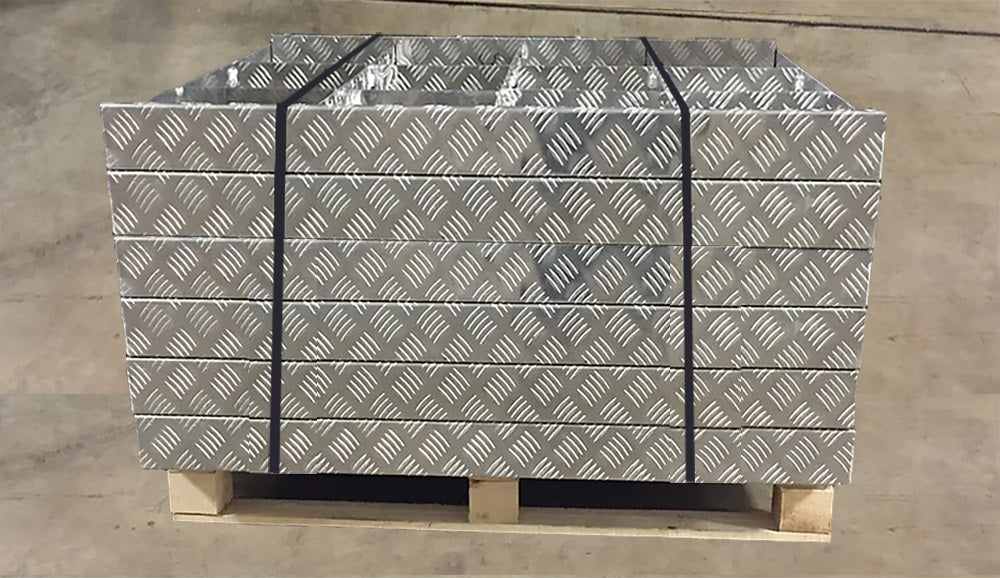

- Optional aluminum center platforms (15 inserts required)
- Optional Bridge Jack: HLCJ-6
- Certified & tested at 150% of rated capacity
Specifications — Top Deck
| Style | 4-Post Storage Lift |
|---|---|
| Overall Width | 113.7″ |
| Overall Length | 256.1″ |
| OVERALL Height | 174″ |
| Drive Through Clearance | 86.6″ |
| Maximum Rise | 151.4″ |
| Max. Lifting Height | 156.5″ |
| Distance Between Columns | 100″ |
| Runway Width | 18.6″ |
| Width Between Runways | 44.5″ |
| Runway Length | 199″ |
Specifications — Lower Deck
| Overall Width | 113.7″ |
|---|---|
| Overall Length | 229.4″ |
| Drive Through Clearance | 86.6″ |
| Maximum Rise | 82.1″ |
| Max. Lifting Height | 87.2″ |
| Distance Between Columns | 100″ |
| Runway Width | 18.6″ |
| Width Between Runways | 44.5″ |
| Runway Length | 185.35″ |
Power Requirements
| Voltage | 220V |
|---|---|
| Included Power Unit | 220V 2.2kw 60 Hz 1ph |
Why Choose an Olympic Lift?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value. Your Olympic Lift may very well be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity.
