The D.A.S. Vantec 18A is a powered bass reflex subwoofer system designed to provide extended bass response to the Vantec full-range cabinets and is well suited for rental houses, bars, clubs, mobile DJs, or any pro audio application. The Vantec 18A utilizes a 2000W Class-D amplifier to power the D.A.S. 18LX woofer and provide a frequency response of 30 to 125 Hz with a peak SPL output of 134 dB.

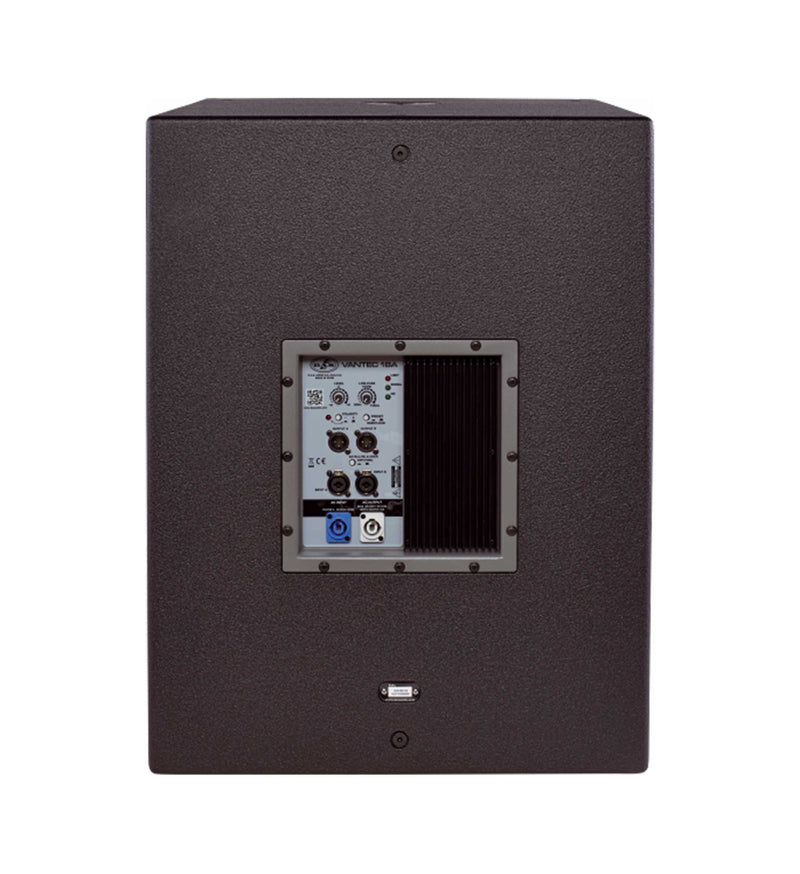

The birch plywood enclosure is finished with black ISO-flex paint and includes two handles for ease in transport. The rear panel offers two XLR inputs, two XLR loop-thru outputs, a level control, an 80 to 125 Hz low-pass filter control, and a dedicated switch for phase, as well as a satellite X-over HPF/thru switch. Additionally, there is a preset EQ with Deep/Loud presets. The top panel contains a pole mount socket for use with 35mm speaker poles for mounting full-range speakers. The D.A.S. Vantec 18A ships with a power cord.
Product Specifications:
Frequency Range (-10 dB): Loud: 35 Hz – 125 Hz – Deep: 30 Hz – 125 Hz
Maximum Peak SPL at 1 m: 134 dB
Nominal Amplifier Power (continuous): 1000 W
Nominal Amplifier Power (peak): 2000 W
Input Type: Balanced
Input Impeadance: 20 kohms
Input Sensitivity: 3 V (+12 dBu)
Audio Signal Input Connector: 2 x Female XLR
Audio Signal Loop Thru Connector: 2 x Male XLR
AC Output Connector: powerCON NAC3FCB
Current Draw 230 V / 115 V: 1.5 A/3.0 A
Enclosure Construction: Birch Plywood
Enclosure Geometry: Rectangular
Rigging: M10 Rigging Points
Finish: ISO-flex Paint
Color: Black
Dimensions ( H x W x D ): 720 x 545 x 655 mm
28,3 x 21,5 x 25,8 in
Net Weight: 40,5 kg ( 89,2 lb )
LF Driver: 18LX
Carton Dimensions ( H x W x D ): 820 x 616 x 726 mm
32,3 x 24,3 x 28,6 in
Shipping Weight: 44,0 kg ( 97,0 lb )
