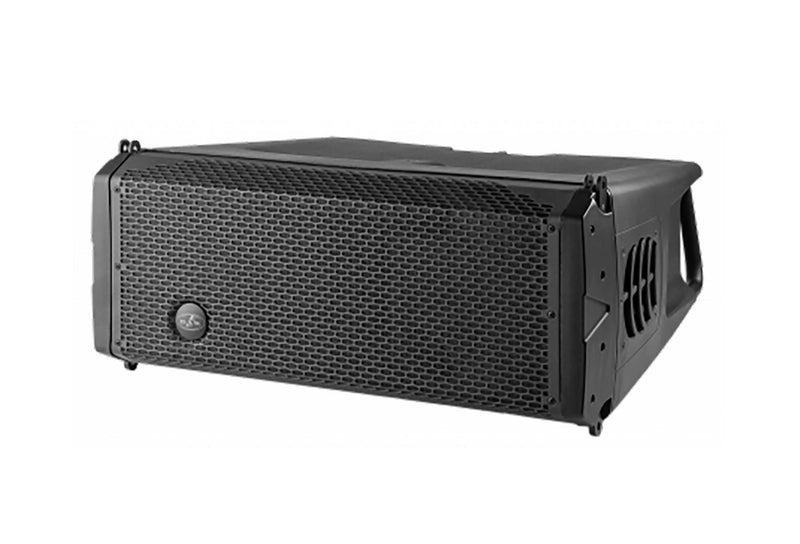

DAS Audio EVENT-28A, Active 2x8" Line Array Module - Black

The DAS Audio EVENT-28A, Active 2x8" Line Array Module is an advanced two-way powered line array system, designed for exceptional performance and user-friendly operation. Its portable polypropylene cabinet is stylish, durable, and suitable for small to mid-size rental and installation applications. The system incorporates two 8" neodymium transducers and a single M-60 compression driver in a robust yet lightweight polymer cabinet, ensuring efficient sound projection and superior low-frequency response. The symmetric "V" shaped configuration delivers consistent 100º horizontal coverage down to 200 Hz. Powered by a two-channel Class D amplifier with 1300 Wpeak power, it features high-quality Neutrik XLR and powerCON connectors, DAScontrol interface for preset selection, and onboard DSP for crossover, EQ, delay, and limiter functions.

The EVENT-28A's FIR filtering technology maintains constant phase response, providing transparent sound and exceptional clarity. Installation is streamlined with the Fast Set Splay (FSS) rigging system, supporting flown arrays of up to 16 units.

Product Specifications:

Frequency Range (-10 dB): 70Hz – 20kHz

Horizontal Coverage (-6 dB): 100th

Vertical Coverage: Splay Dependent

Maximum Peak SPL at 1 m: 133 dB

Nominal Amplifier Power (continuous): 650W

Nominal Amplifier Power (peak): 1300W

Nominal Amplifier Power LF (continuous): 500W

Nominal Amplifier Power LF (peak): 1000W

Nominal Amplifier Power HF (continuous): 150W

Nominal Amplifier Power HF (peak): 300W

Input Type: Balanced

input impedance: 20 kohms

Input Sensitivity: 6.2 V (+18 dBu)

Audio Signal Input Connector: 1 x Female XLR

Audio Signal Loop Thru Connector: 1 x Male XLR

Recommended Signal Processing: INTEGRAL-M26X

AC Output Connector: powerCON NAC3MPB

Current Draw 230V / 115V: 1.2 A / 2.4 A

Enclosure Construction: Polypropylene

Enclosure Geometry: Trapezoidal

Rigging: Captive Rigging System

Color: Black

Dimensions (H x W x D): 280 x 635 x 525 mm

11.0 x 25.0 x 20.7 in

Net Weight: 20.5 kg (44.1 lb)

HF Driver: M-60

Carton Dimensions (H x W x D): 715 x 600 x 335 mm

28.2 x 23.6 x 13.2 in"
