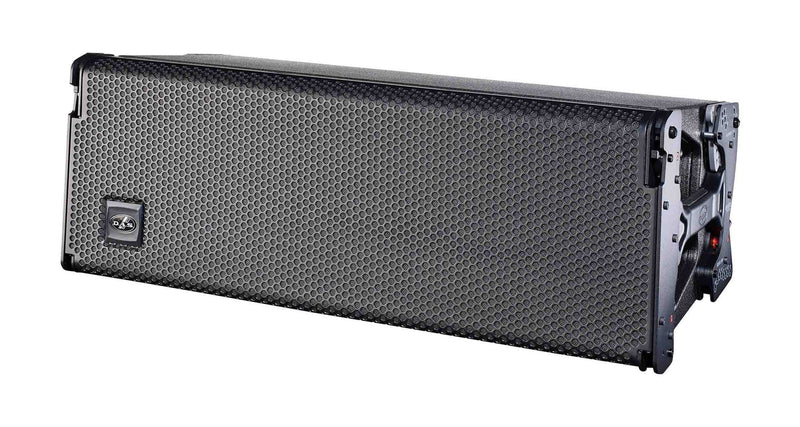

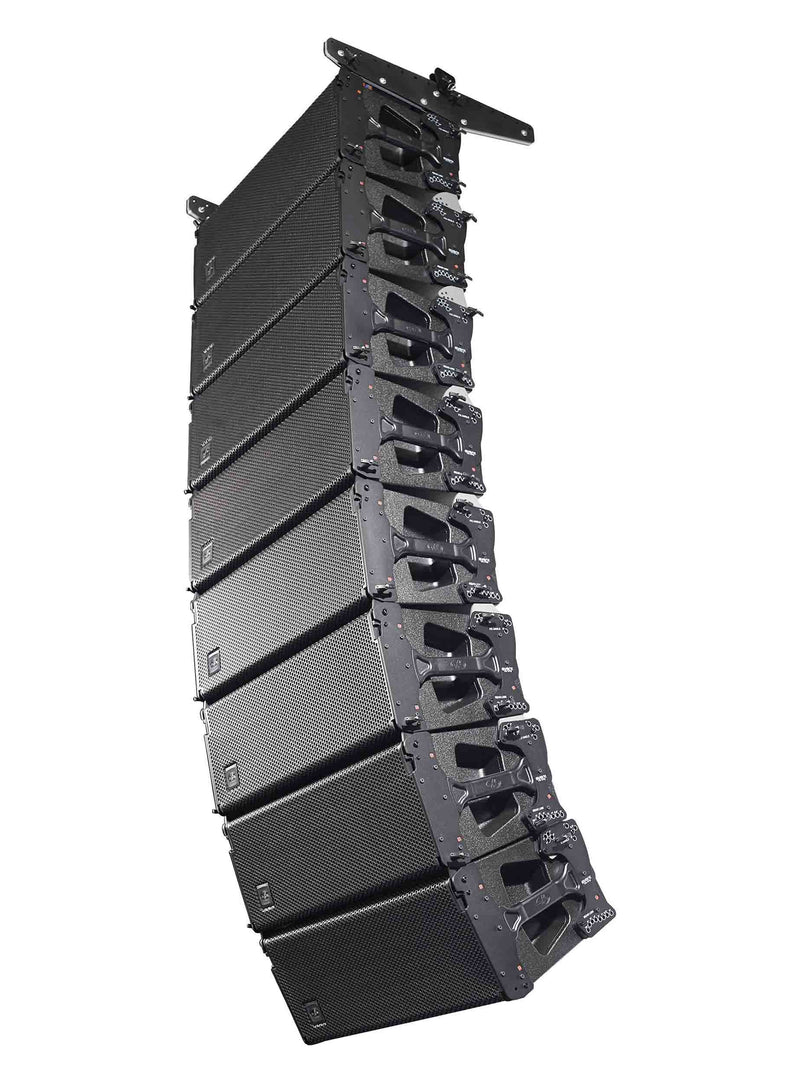

The EVENT-210A Line is a three-way powered line array in a double 10” “dual-band” configuration which provides a wider frequency range. The DAS loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide.

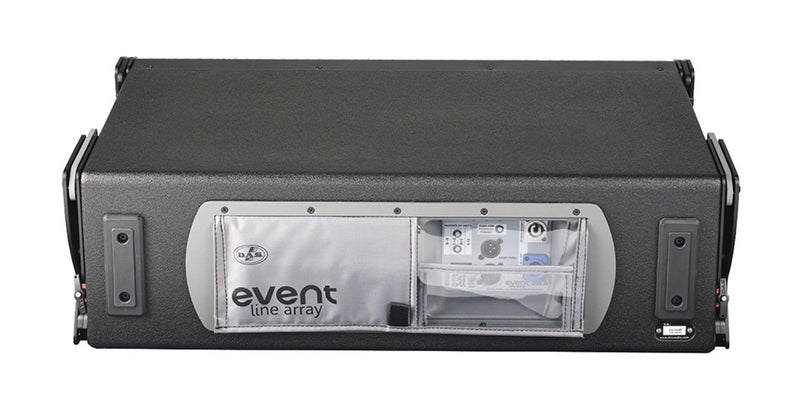

The EVENT-210A line array is powered by a three channel Class D amplifier which provides 360 W peak per channel. The amp´s rear panel includes quality Neutrik XLR and powerCON connectors, status LEDS to facilitate setup and DAS’s Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth.
Product Specifications:
Frequency Range (-10 dB): 70 Hz – 20 kHz
Horizontal Coverage (-6 dB): 90º
Vertical Coverage: Splay Dependent
Maximum Peak SPL at 1 m: 134 dB
Nominal Amplifier Power LF (continuous): 180 W
Nominal Amplifier Power LF (peak): 360 W
Nominal Amplifier Power MF (continuous): 180 W
Nominal Amplifier Power MF (peak): 360 W
Nominal Amplifier Power HF (continuous): 180 W
Nominal Amplifier Power HF (peak): 360 W
Input Type: Balanced
Input Impedance: 20 Kohms
Input Sensitivity: 6.2 V (+18 dBu)
Audio Signal Input Connector: 1 x Female XLR
Audio Signal Loop Thru Connector: 1 x Male XLR
AC Output Connector: powerCON NAC3FCB
Current Draw 230 V / 115 V: -/3.0 A
Certification Number: NRTL US&CA SGSNA/19/SUW/00109
Enclosure Construction: Birch Plywood
Enclosure Geometry: Trapezoidal

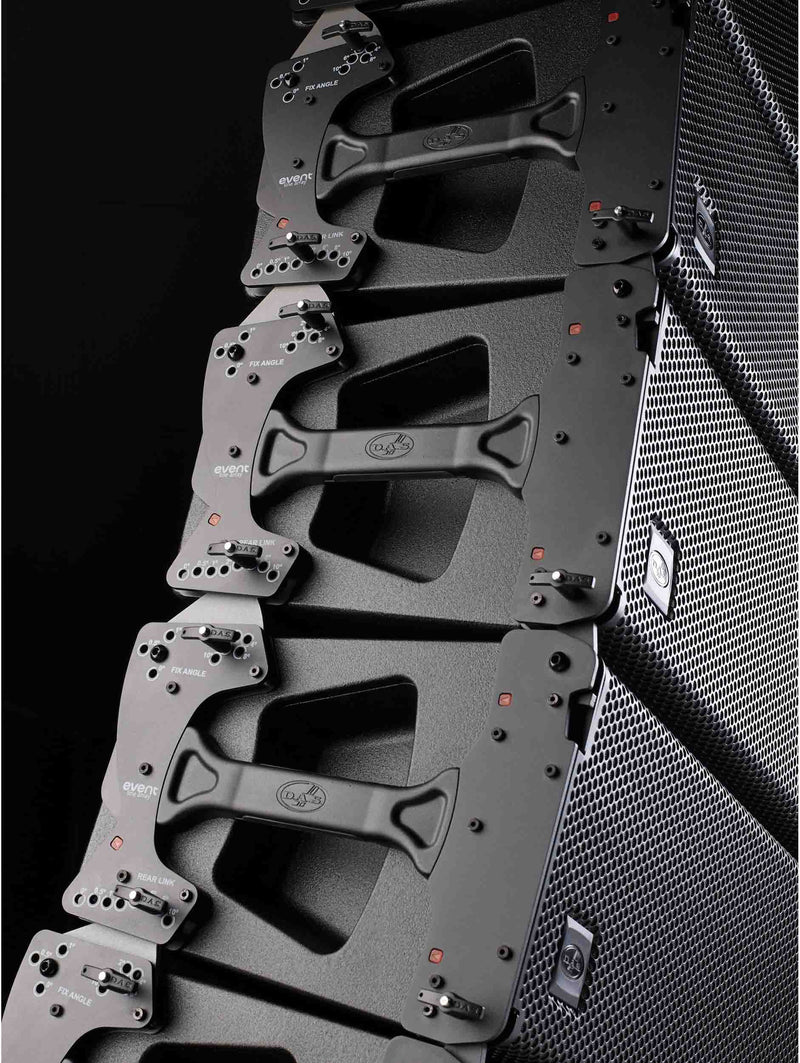

Rigging: Captive Rigging System
Finish: ISO-flex Paint
Color: Black
Dimensions (H x W x D): 10,8 x 28,9 x 14,6 in"
Net Weight: 32,5 kg (71,7 lb)
Components:
LF Driver: 10MI4
MF Driver: 10MI4
HF Driver: M-75
Horn/Waveguide: BPS-90AR
Carton Dimensions (H x W x D): 31,5 x 12,6 x 16,1 in"
Shipping Weight: 34,5 kg (76,1 lb)
