FORNO Appliance Package - 48 Inch Gas Range, Wall Mount Range Hood, 60 Inch Refrigerator, FBDL-018-02US

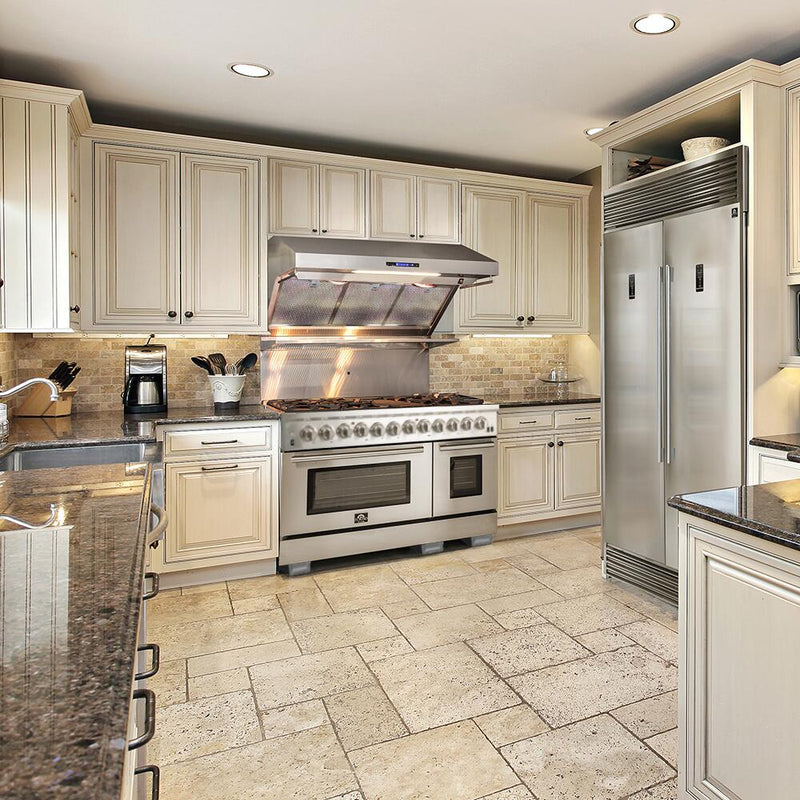

Forno Appliance Package - 48 in. Galiano Gas Range with 8 Defendi Italian Burners in Stainless Steel, Savona Wall Mount Range Hood with Back Splash, and 60" Refrigerator. AP-FFSGS6244-48-4 is perfect for your next kitchen model, and comes at a highly affordable price! Read more below!

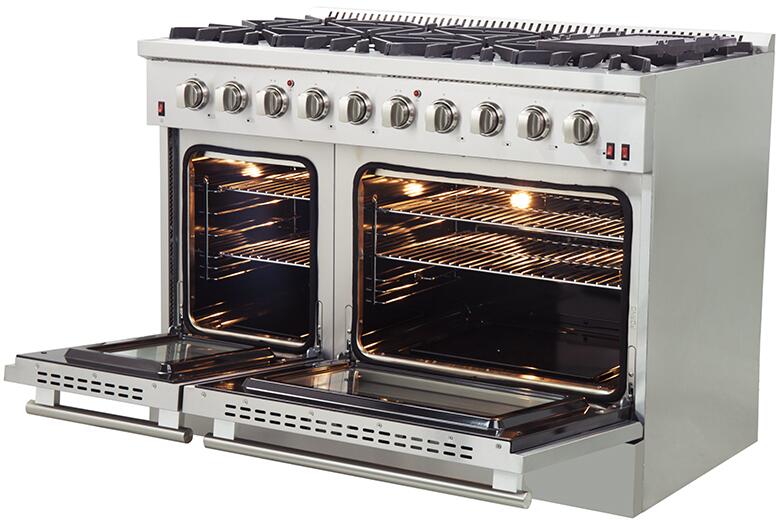

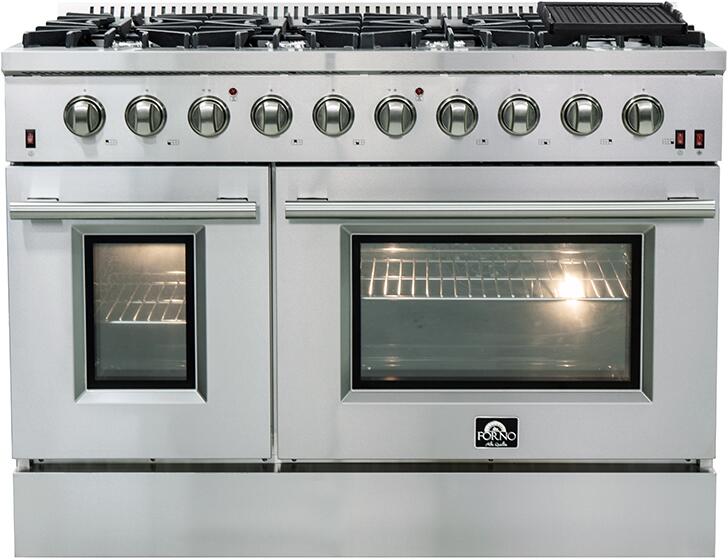

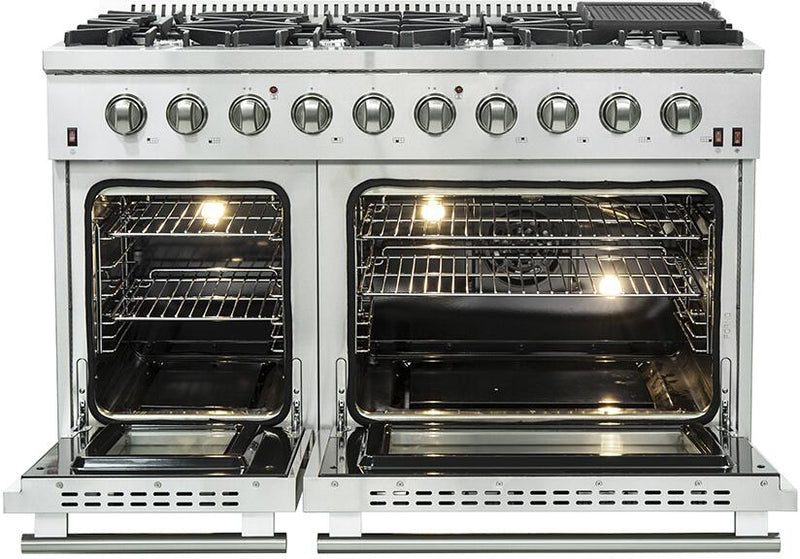

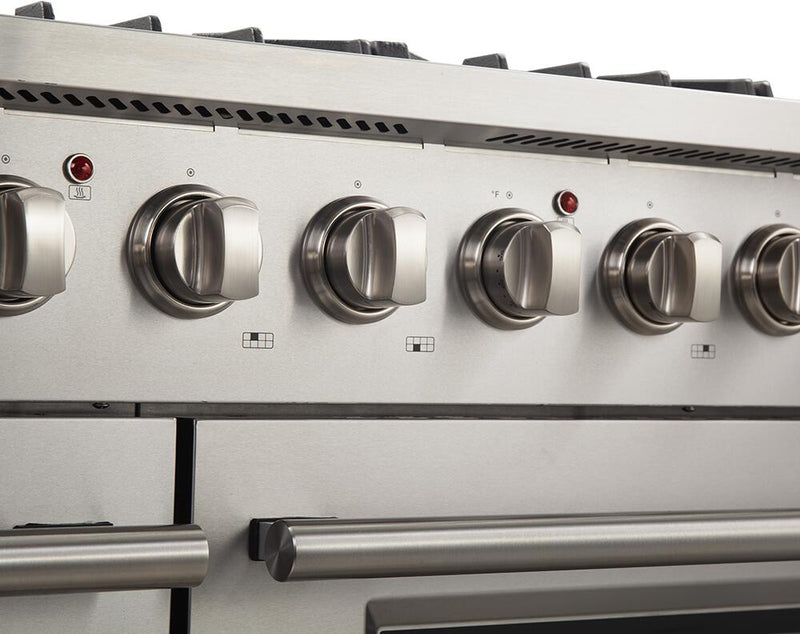

Range:

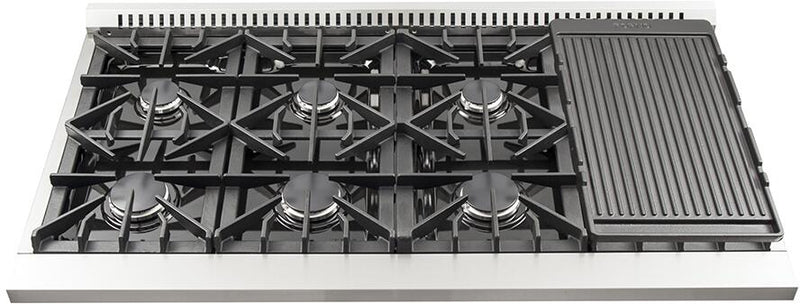

• Continuous Cast Iron Grates: Heavy duty cast iron grates make transferring heavy pots and pans over your burners easy.
• Halogen Lighting: Makes the cooking process completely monitorable without the need to open the door.
• Sealed Burners: Completely sealed burners Contain spills and allow for easy cleaning and maintenance.
• cETLus: A cETLus certification which complies with the safety standards for the United States and Canada.
• Convection Cooking: A convection oven circulates hot air with a fan. Unlike conventional radiant (also called thermal) ovens, convection ovens have a fan that continuously circulates air through the oven cavity. This allows food to cook faster and more evenly.

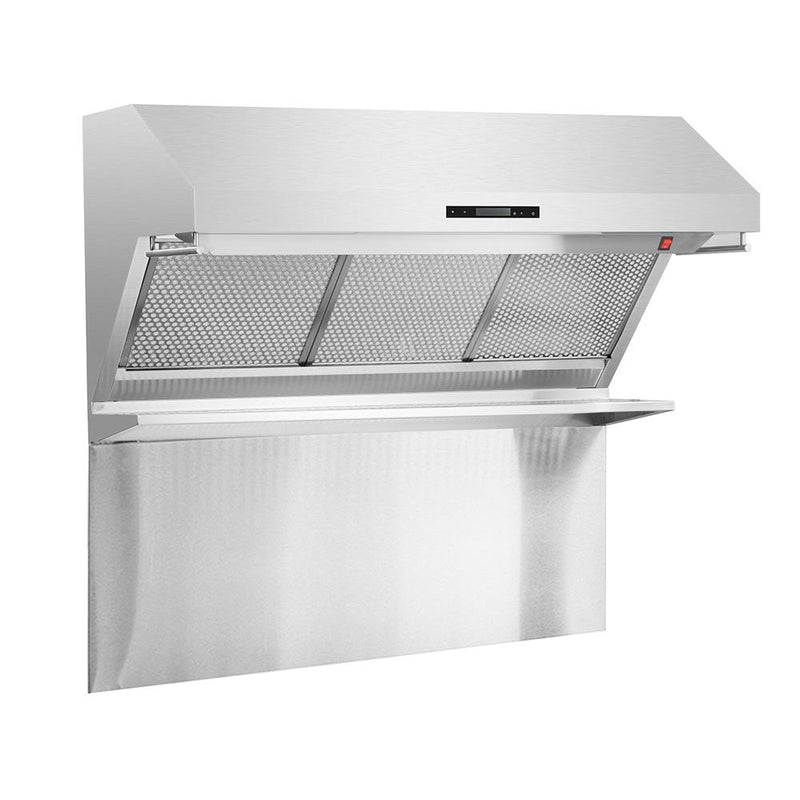

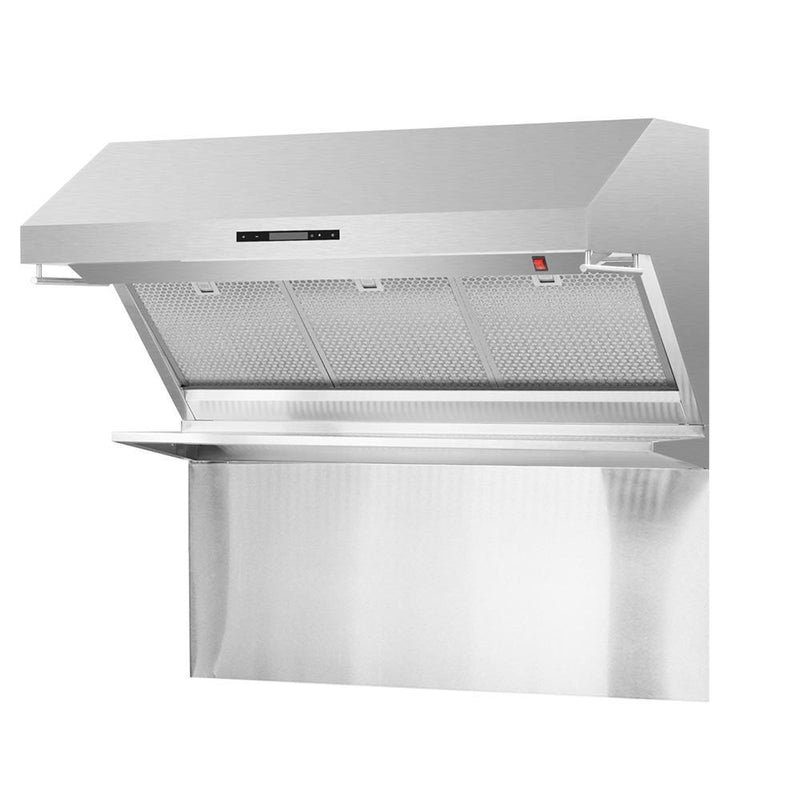

Range Hood:

• This 48" Wall Mount Range Hood by Forno comes with a power motor with up to 1,200 CFM of ventilation. The hood also features stainless steel hybrid filters, LED lighting, Red Light Warmers and electronic display control.
• All Stainless Steel Construction. Made from durable and easy to clean stainless steel.
• Electronic Display Control. Allows you to effortlessly adjust the lighting and fan speeds of your hood.
• LED Stripe Light. Bright and energy efficient LED lights to illuminate your cooktop.
• Two Blower 600 CFM each, Total 1,200 CFM. Powerful ventilation to clear smoke and grease from your kitchen.
• Red Light Warmer. Red infrared lights keep your dishes warm.
• Stainless Steel Hybrid Filters. Efficiently filters out grease from cooking and are dishwasher safe for easy cleaning.

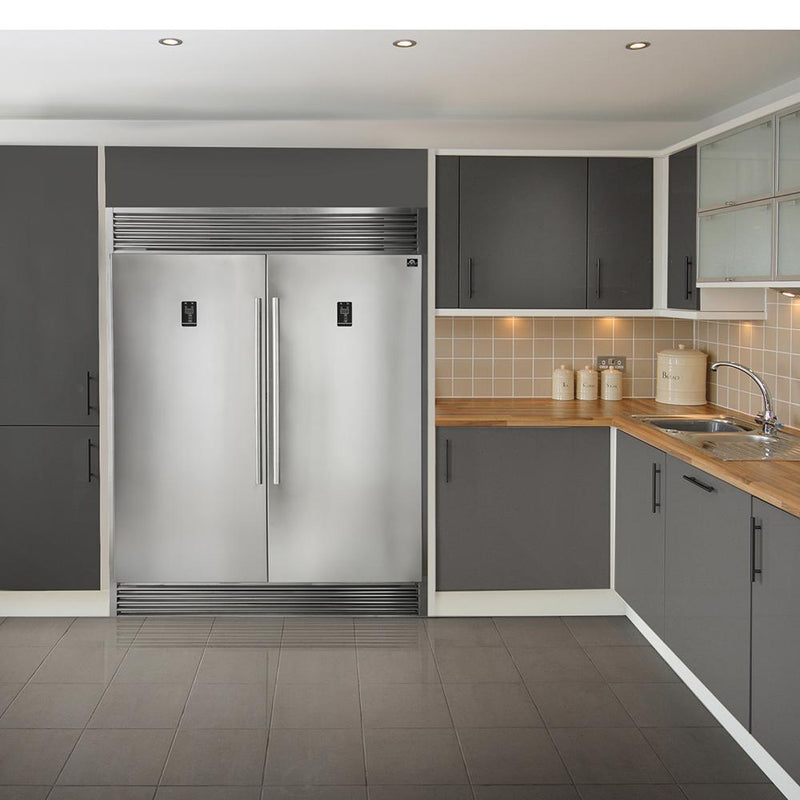

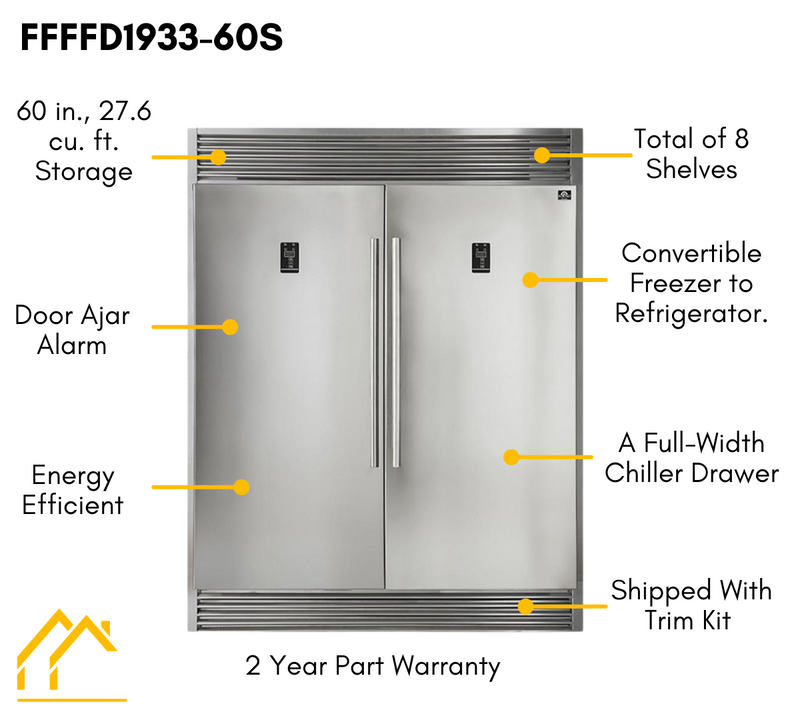

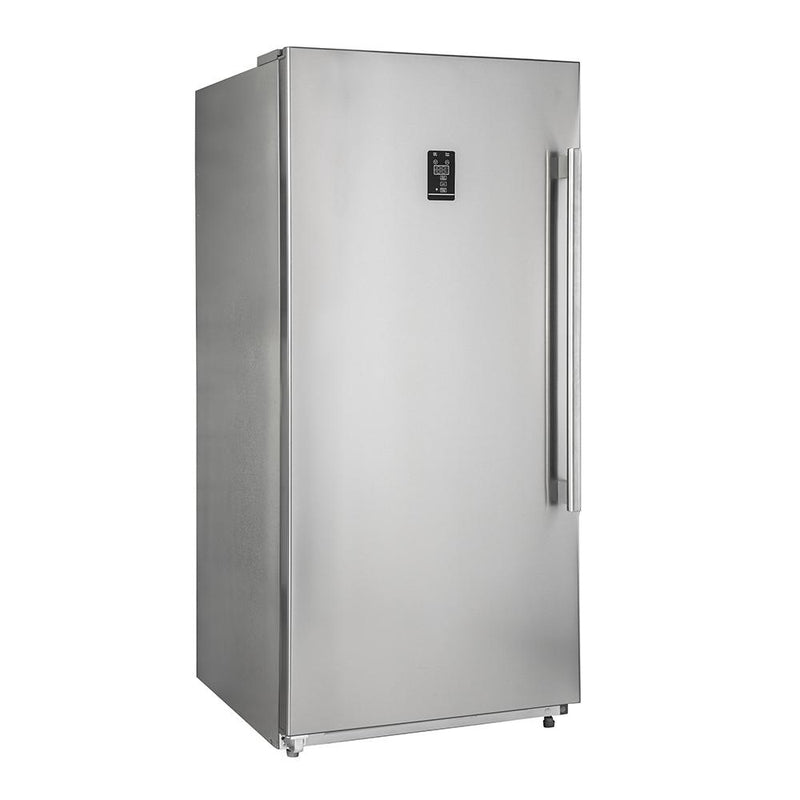

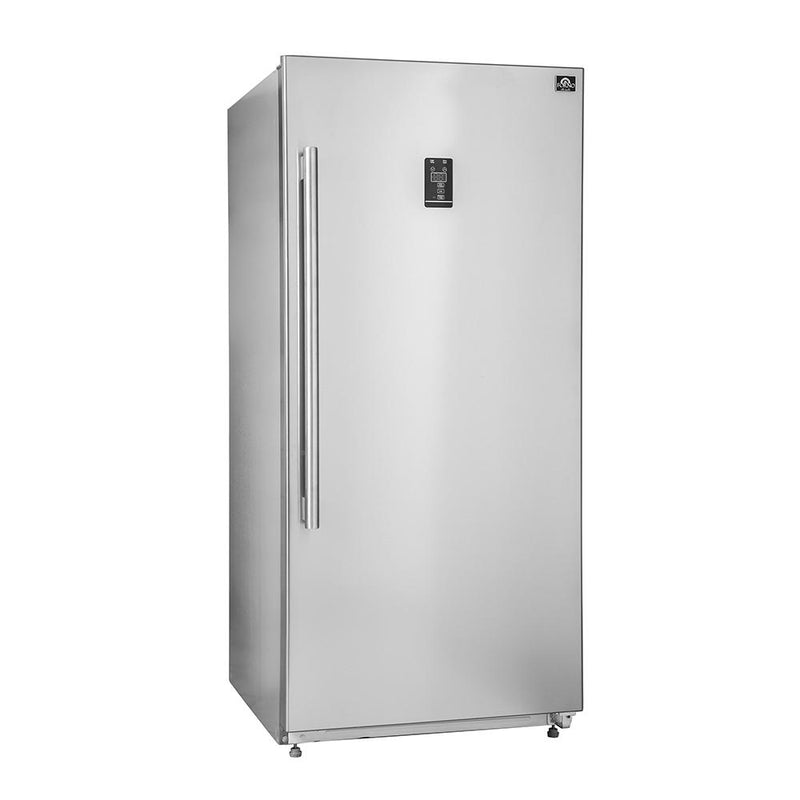

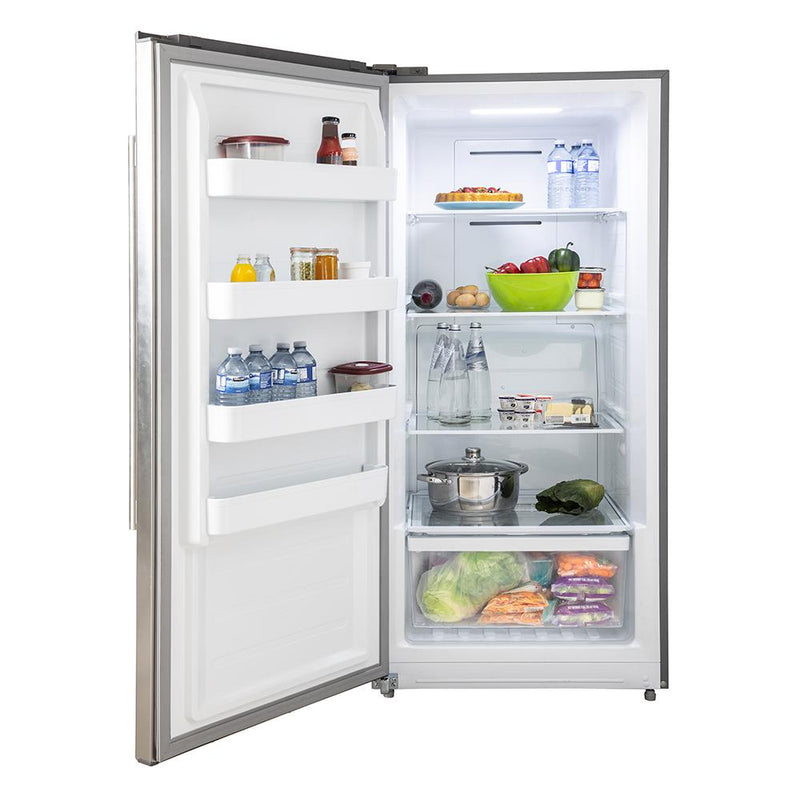

Refrigerator:

• LED Lighting. Bright white lighting from LED bulbs are energy efficient and offers elegant illumination throughout the interior.

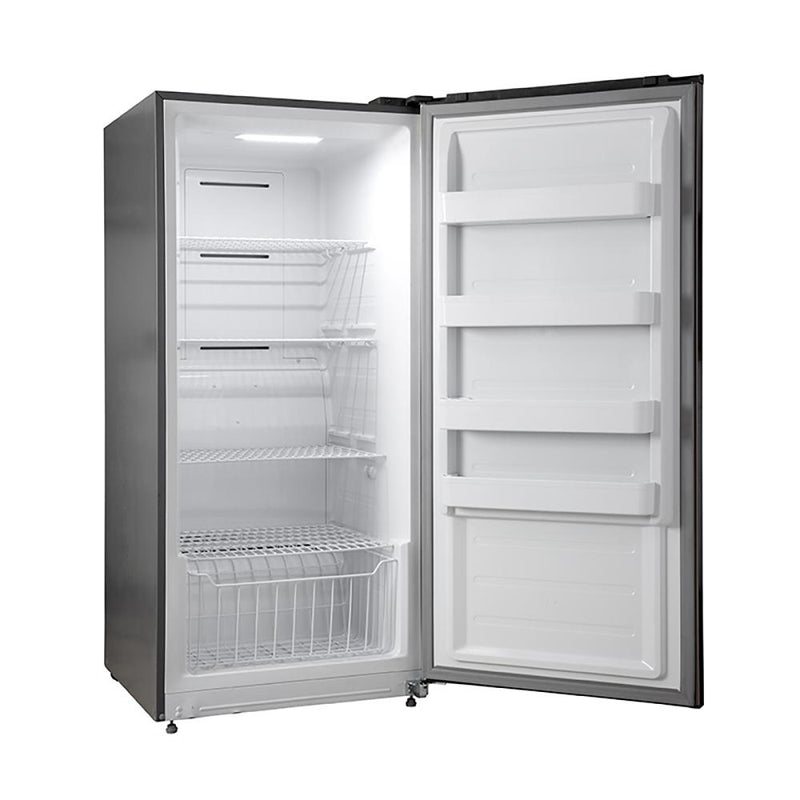

• Convertible Freezer/Refrigerator. Choose between cooling and freezing, both zones are interchangeable and can be adjusted to freezer or refrigerator – from -18 to +6

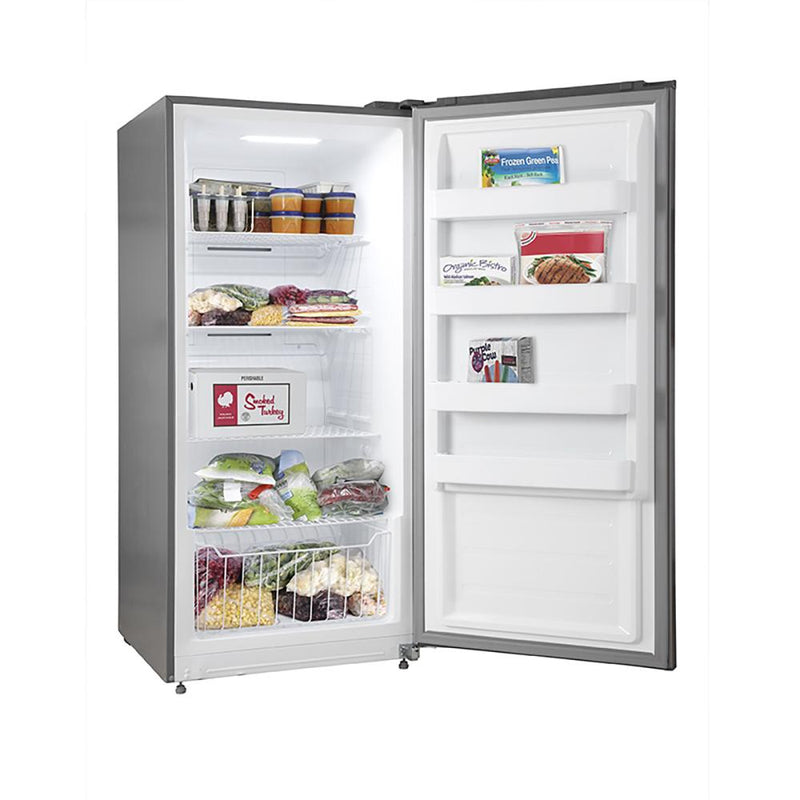

• Adjustable Glass Shelves. Adjustable glass shelves provide a stable platform while allowing light to go through and provide illumination throughout the bottom. You can rearrange or remove them for flexible storage or easy clean-up.
• Electronic Control. The electronic control with LED display allows you to effortlessly adjust the temperature.
• No Frost Design. Keeps goods fresher for longer periods. Eliminates ice and bacteria build-up, avoids unpleasant odors.
• Door Storage. Store tall bottles and condiments right on the door for convenient access.
• Crisper Drawer. Transparent drawers make finding your favorite items quick and easy
• High Temperature Alarm. When the appliance is in fridge mode, if the internal temperature is above 15°C (59°F) for more than 36 hours, the high temperature alarm will sound. The High Temp indicator light will illuminate and the appliance will make a buzzing sound for 10 seconds every thirty minutes. Press any button on the display to quiet the high temperature alarm. The alarm will automatically turn off when the internal temperature drops below 12°C (54°F).
• Door Open Alarm. If the door remains open for more than 5 minutes, the door open indicator light will illuminate and a buzzer will sound. Press any button on the display or close the door to quiet the door open alarm.

PRODUCT SPECIFICATIONS:

Range:

Dimensions	48" W x 28"D x 38"H
Burner Fuel:	Natural Gas
Oven Fuel:	Natural Gas
Electrical Requirements	120 Volts / 15 Amps
Oven Capacity (cu. ft.)	4.32 cu. ft. (large oven) 2.26 cu. ft. (small oven)
Number of Burners	8

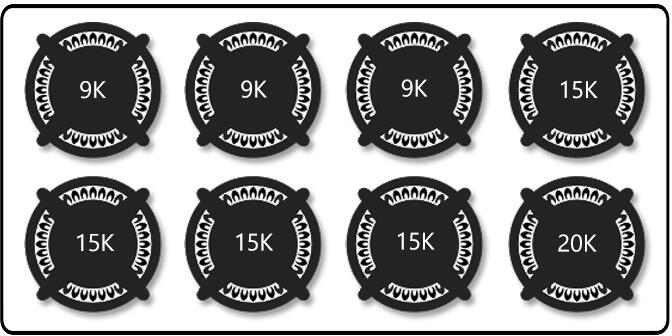

Cooktop BTUs:	Front Left Output: 15000 Back Left Output: 9000 Back Right Output: 15000 Front Right Output: 20000 Middle Front Left Output: 15000 Middle Back Left Output: 9000 Middle Front Right Output: 15000 Middle Back Right Output: 9000
Oven BTUs:	22000
Convection Fan	Yes
Warranty	2 Years
Weight	413.36 lbs

Range Hood:

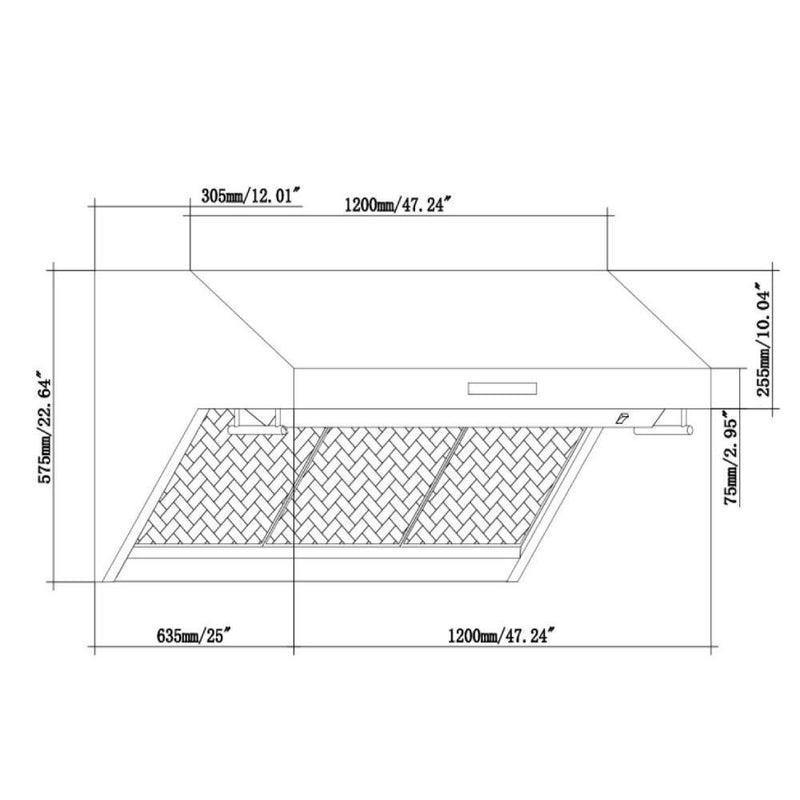

Dimensions:	48" W x 25"D x 22.6"H
Venting Size:	6" Outlet
Airflow (CFM)	1200 CFM
Lighting:	2 LED
Electrical:	120V / 60 Hz / 6.5 Amps
Mount Type:	Wall Mount
Weight:	130.24 lbs

Refrigerator:

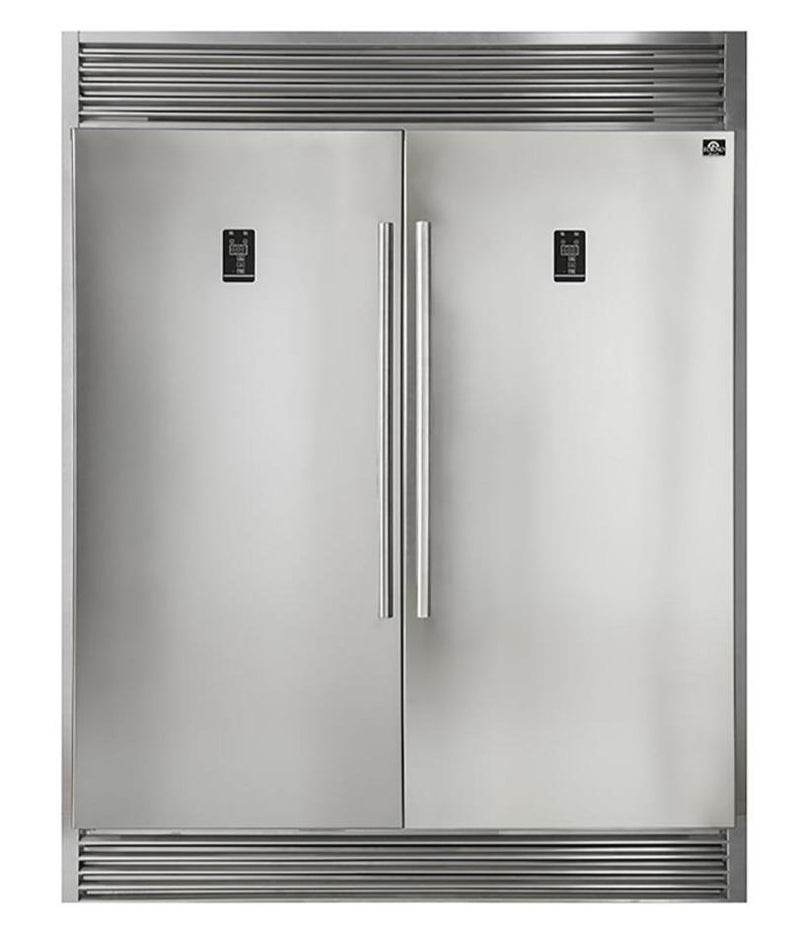

Dimensions	60.5''W x 80"H x 29.7''D
Total Capacity	27.6 cu. ft.
Refrigerator Capacity	13.8 cu. ft.
Freezer Capacity	13.8 cu. ft.
Ice Maker	No
Material	Stainless Steel
Type	Built-In or Freestanding
Style	Side-by-Side
Electrical Requirements	120V / 15A / 60Hz
Weight	355.8 lbs
Warranty	2 Years Parts and Labor
