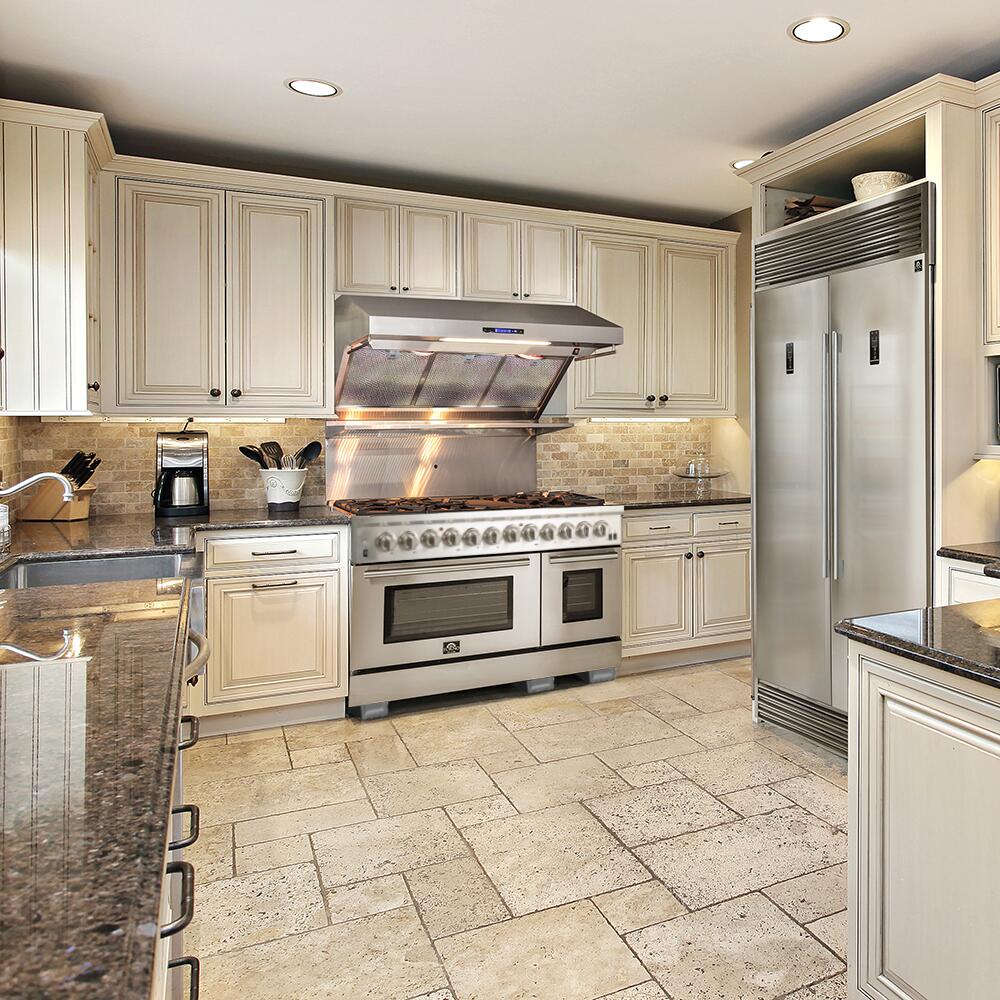

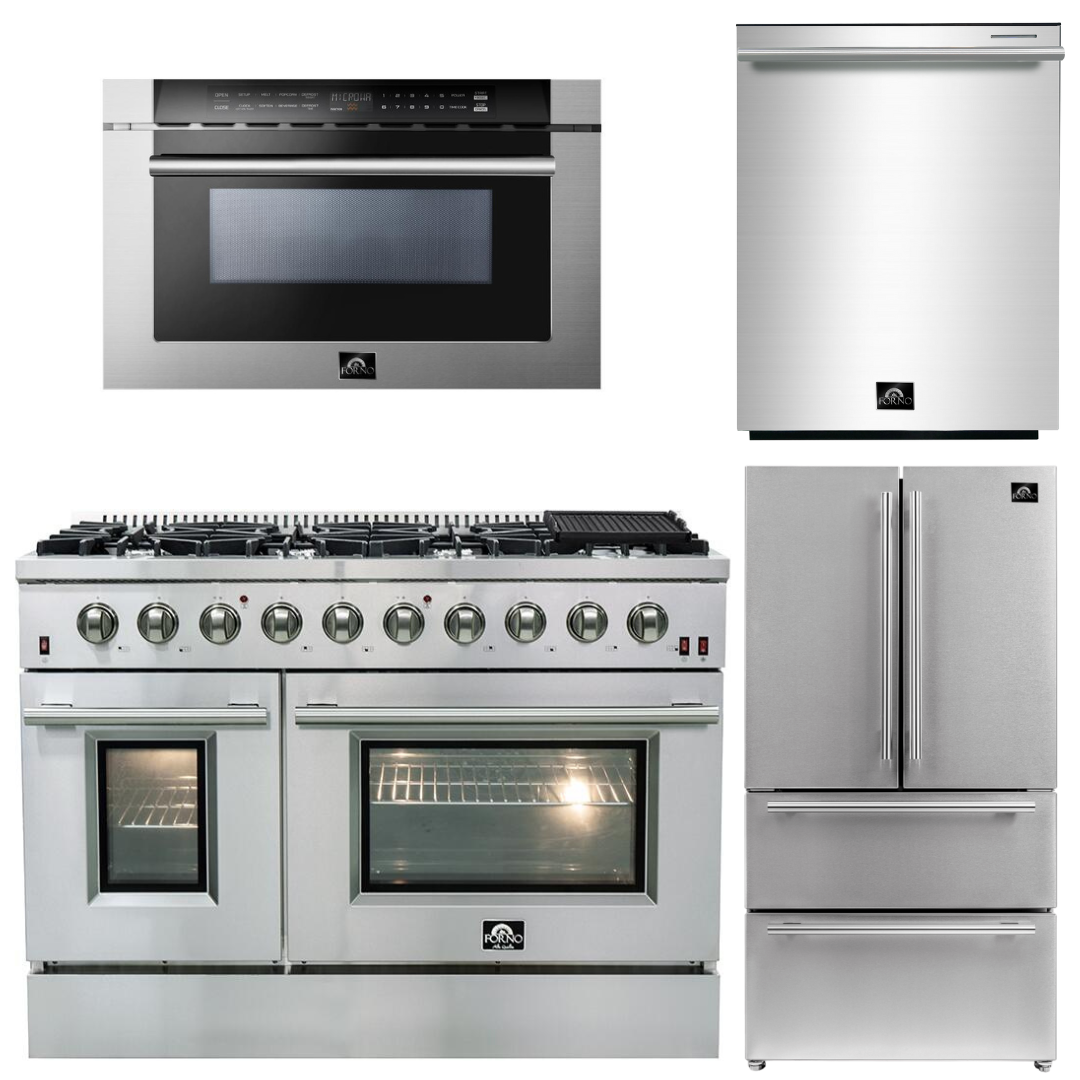

FORNO Appliance Package - 48" Gas Range, 36" Refrigerator, Microwave Drawer, Dishwasher, AP-FFSGS6244-48-25

The Forno Appliance Package - 48 in. Gas Range with 8 Italian Burners in Stainless Steel, Refrigerator and Freezer, Microwave Drawer, and Dishwasher. The appliance bundle is perfect for your next kitchen model, and comes at a highly affordable price! Read more below!

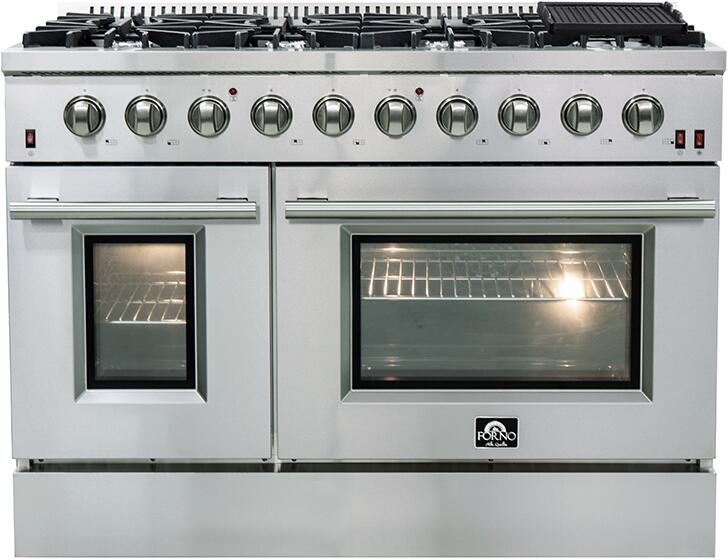

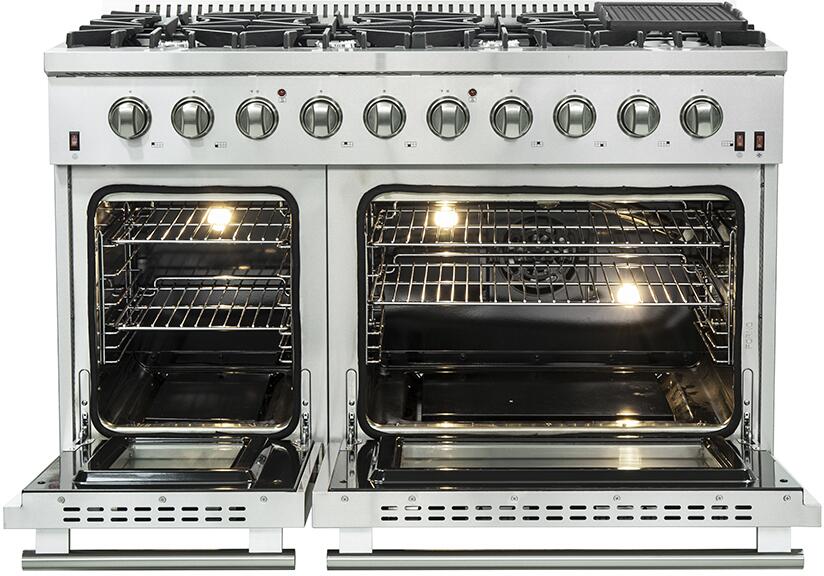

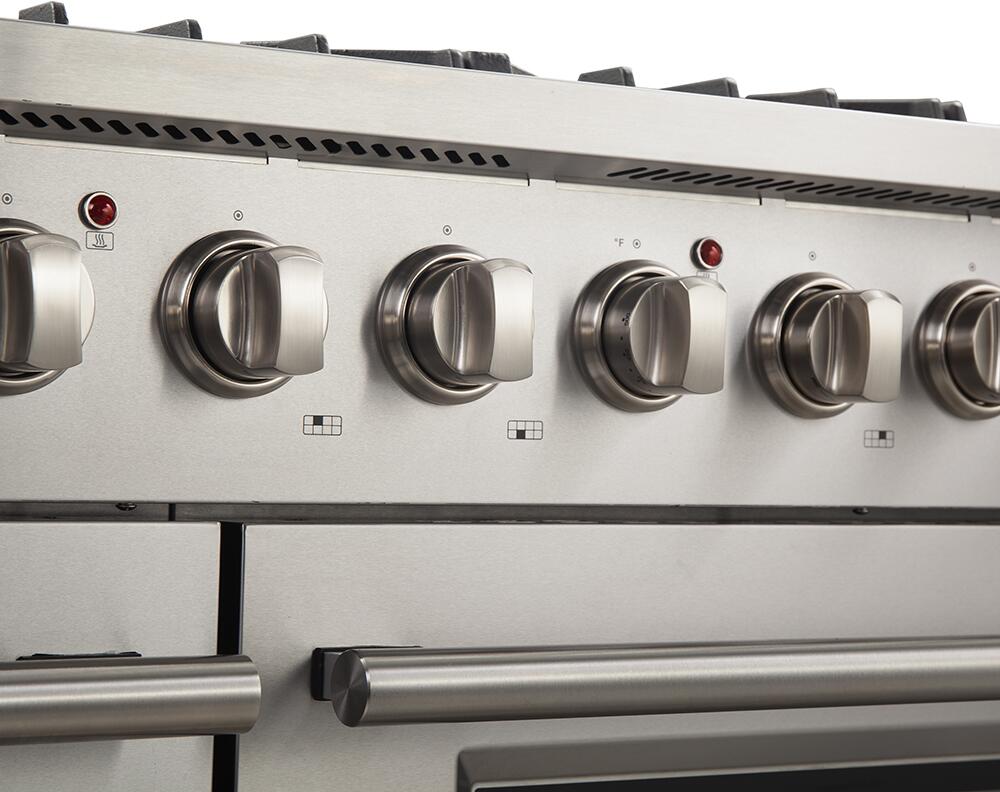

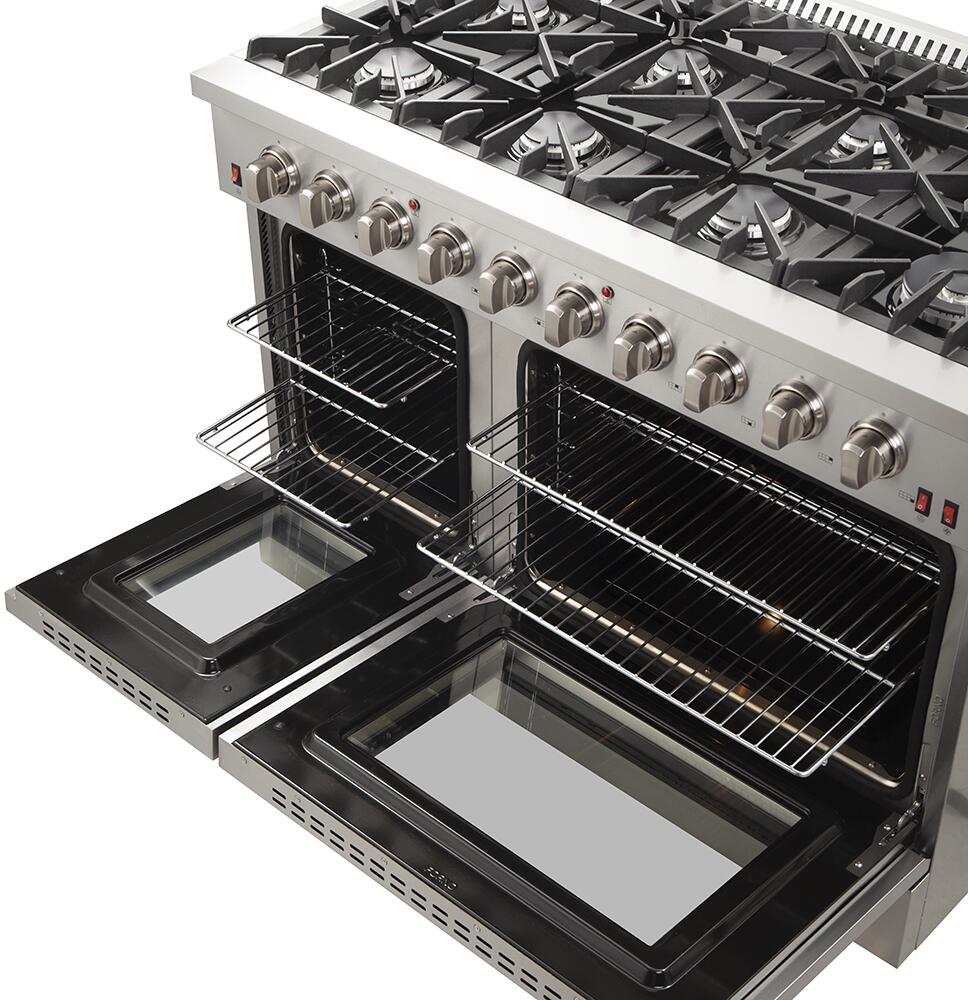

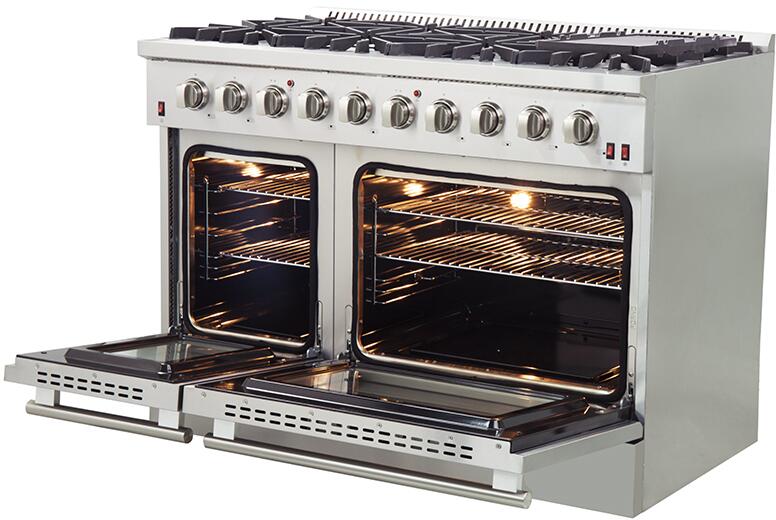

Range

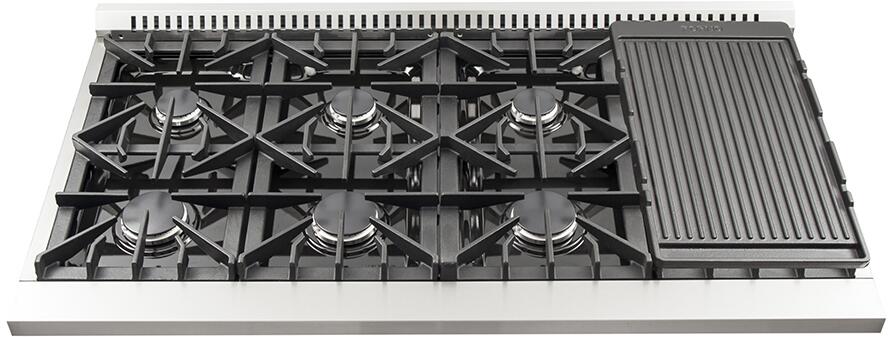

• Continuous Cast Iron Grates: Heavy duty cast iron grates make transferring heavy pots and pans over your burners easy.
• Halogen Lighting: Makes the cooking process completely monitorable without the need to open the door.
• Sealed Burners: Completely sealed burners Contain spills and allow for easy cleaning and maintenance.
• Convection Cooking: A convection oven circulates hot air with a fan. Unlike conventional radiant (also called thermal) ovens, convection ovens have a fan that continuously circulates air through the oven cavity. This allows food to cook faster and more evenly.

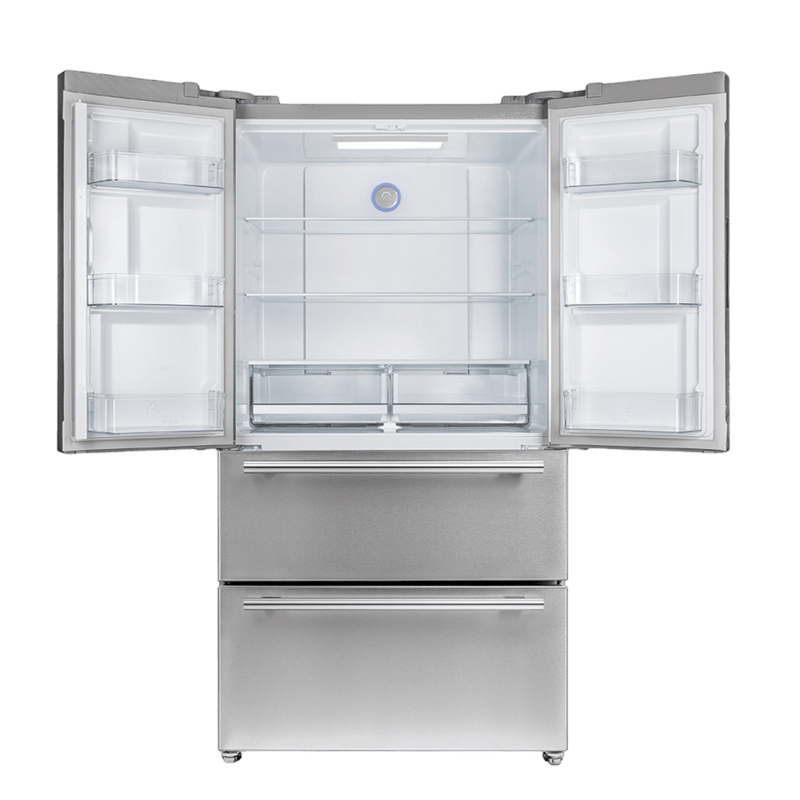

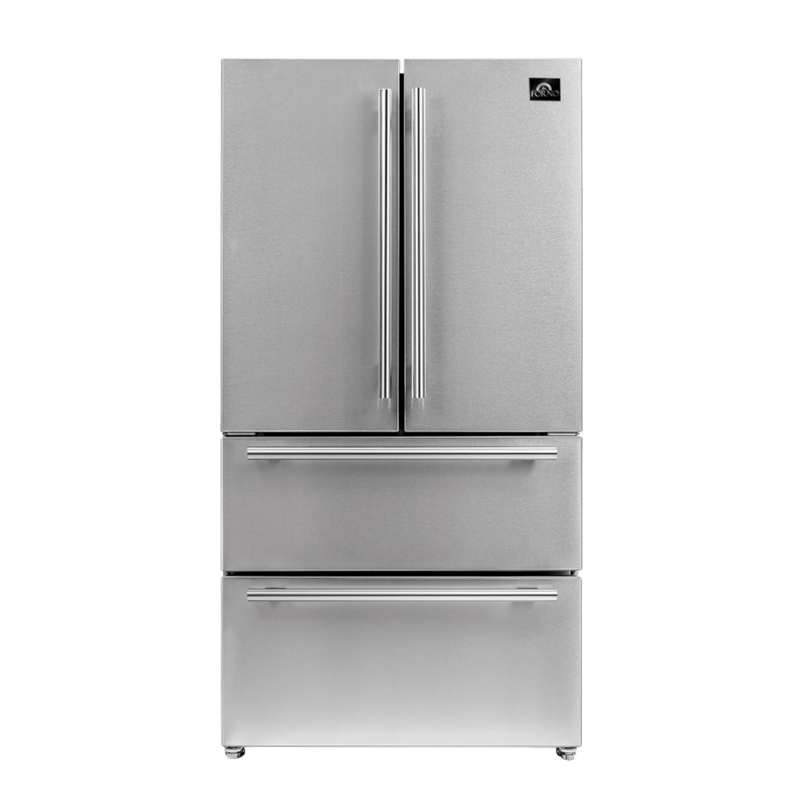

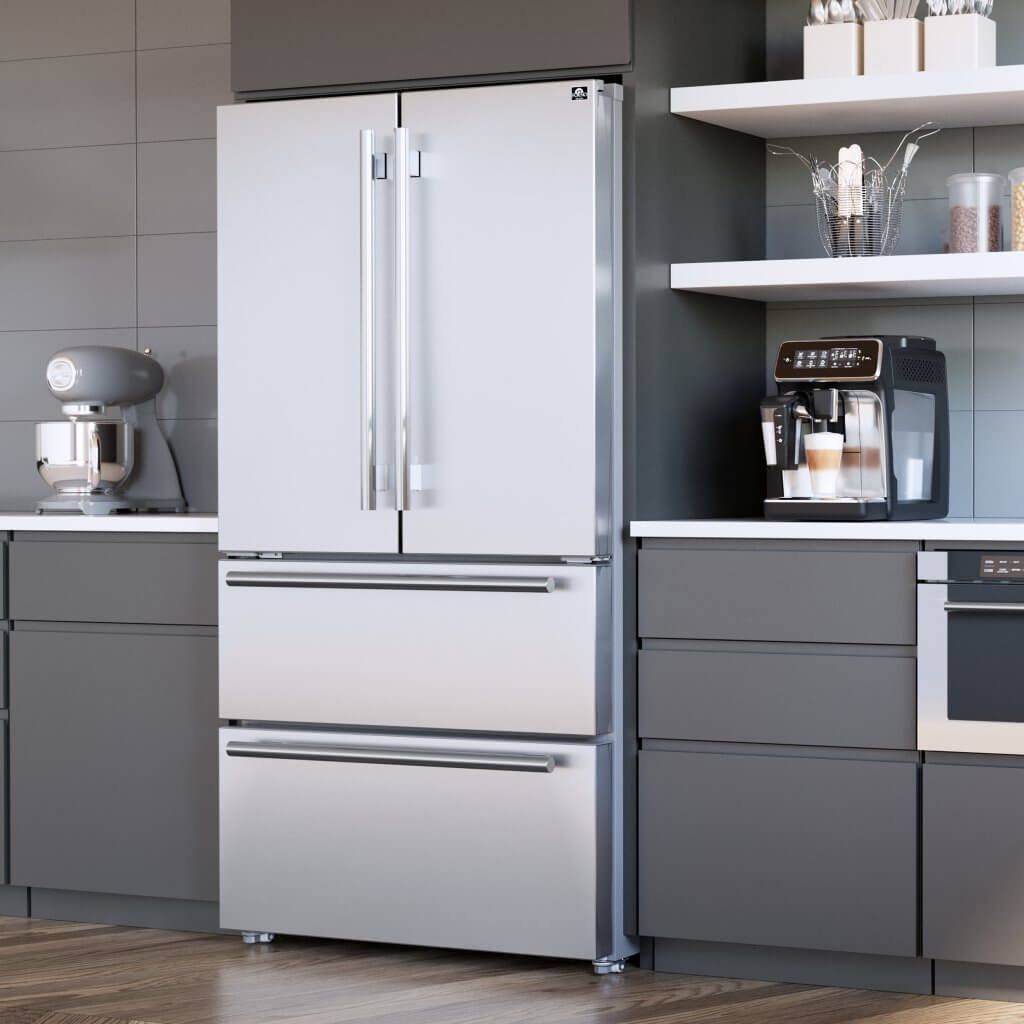

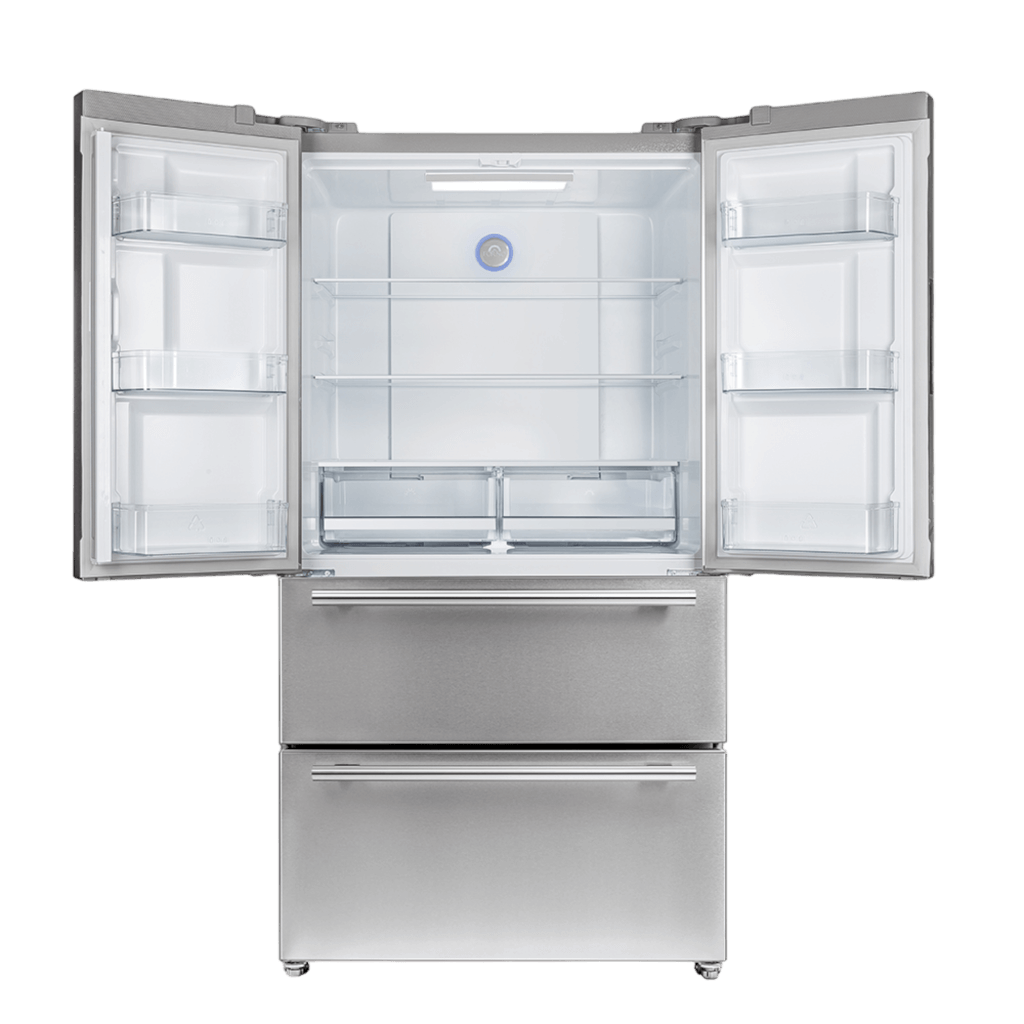

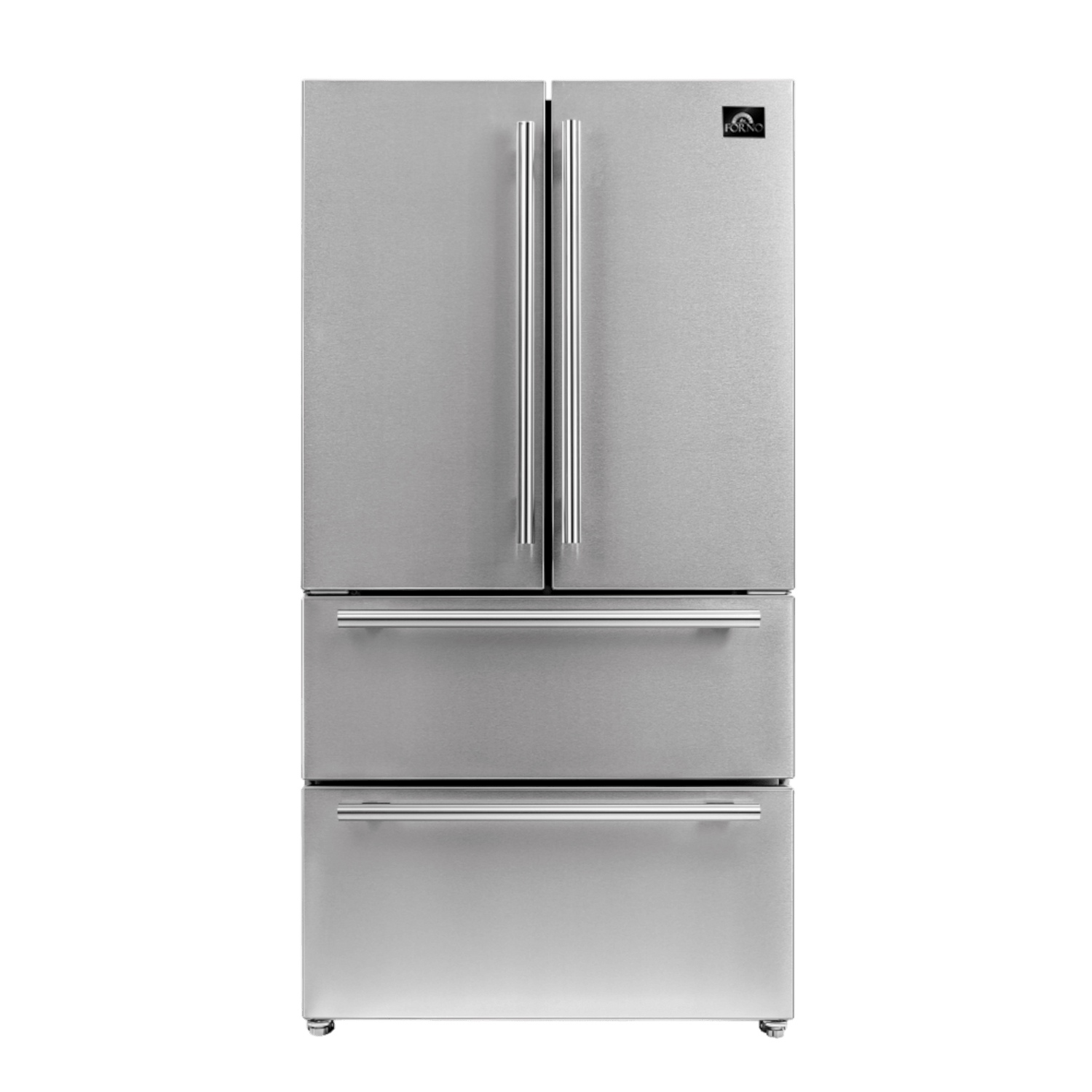

Refrigerator

• Product Type. Freestanding Counter-Depth
• Storage Space. Generous 19.26 cu. ft. of combined refrigerator and freezer storage
• Smudge Resistant Finish. Beautiful, easy-to-clean stainless steel finishes are fingerprint and smudge resistant
• Freezer. No-frost design, providing you with hassle-free maintenance and optimal freshness to ensure your food stays delicious and well-preserved

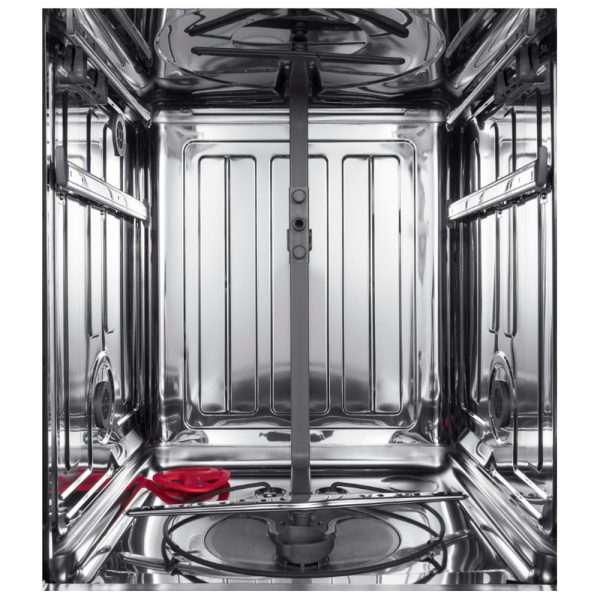

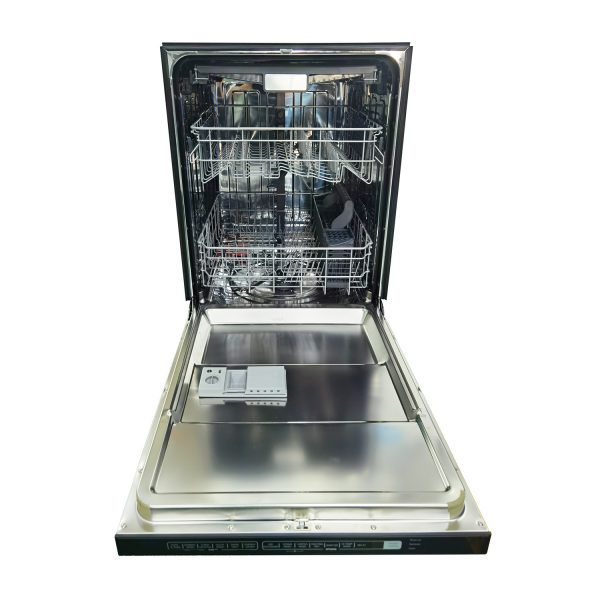

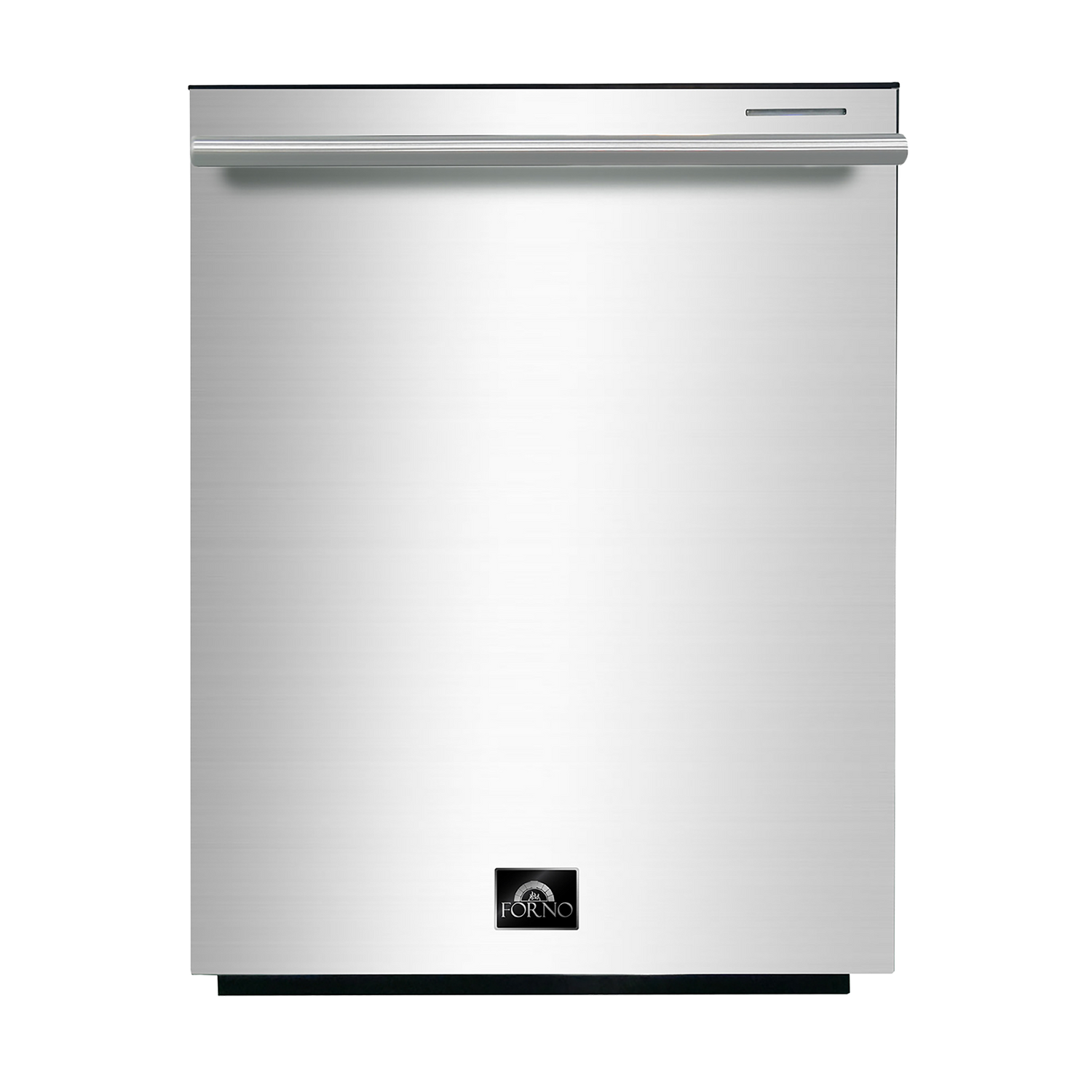

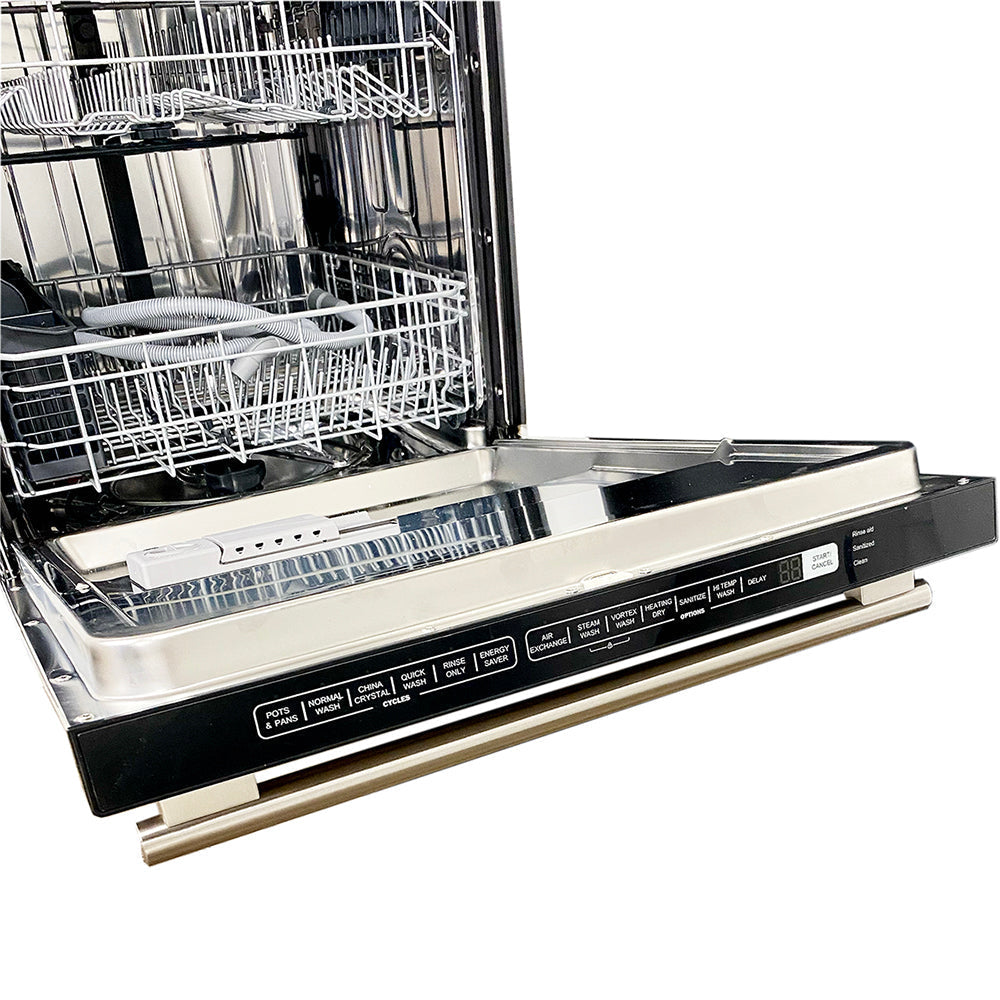

Dishwasher

• Multiple Wash Programs: Heavy, Normal, Light, Glass, Quick, Rinse
• Large Capacity: 14 Place Settings
• Energy Efficient: Low Energy Consumption of 249 kWh/year

• Ultra Quiet: 45 DB Quiet Washing
• Panel Ready: Suitable for Cabinet Or Stainless-Steel Front Panel

• Fast Drying Technology: Double drying (heating drying + fan drying)

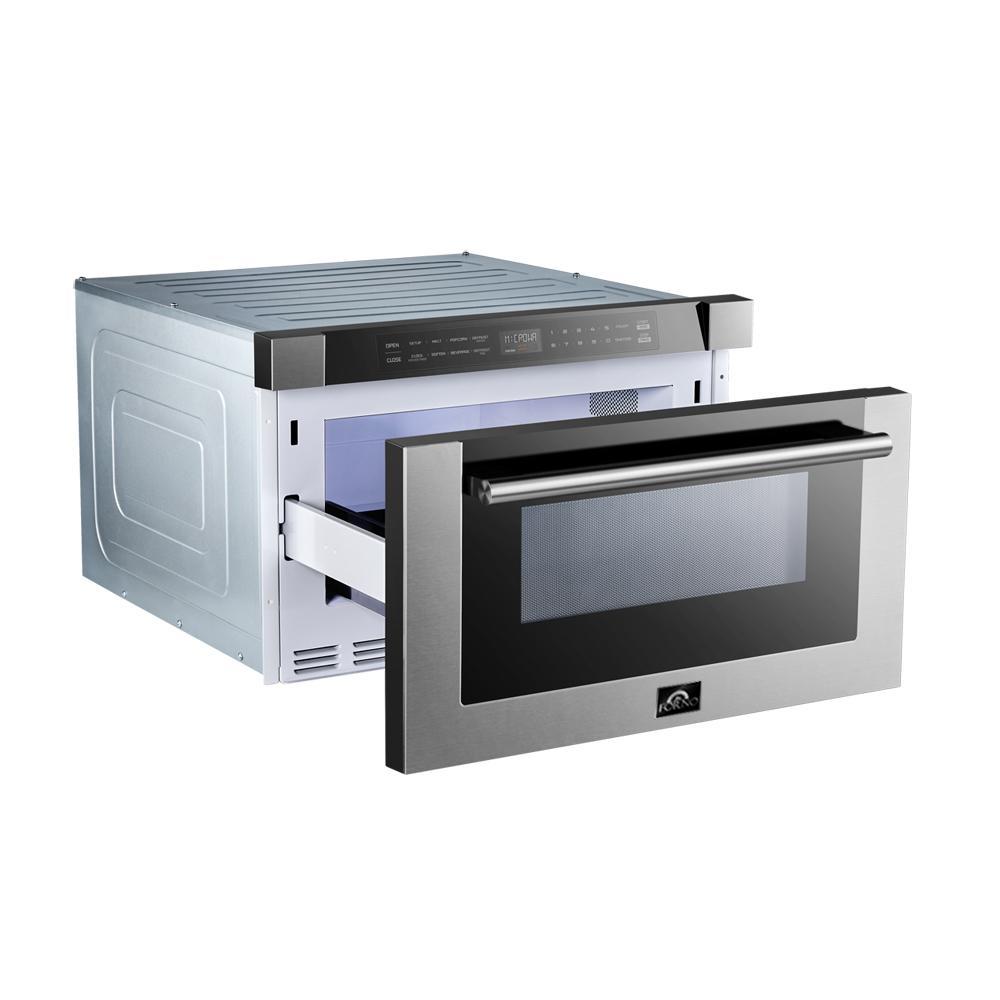

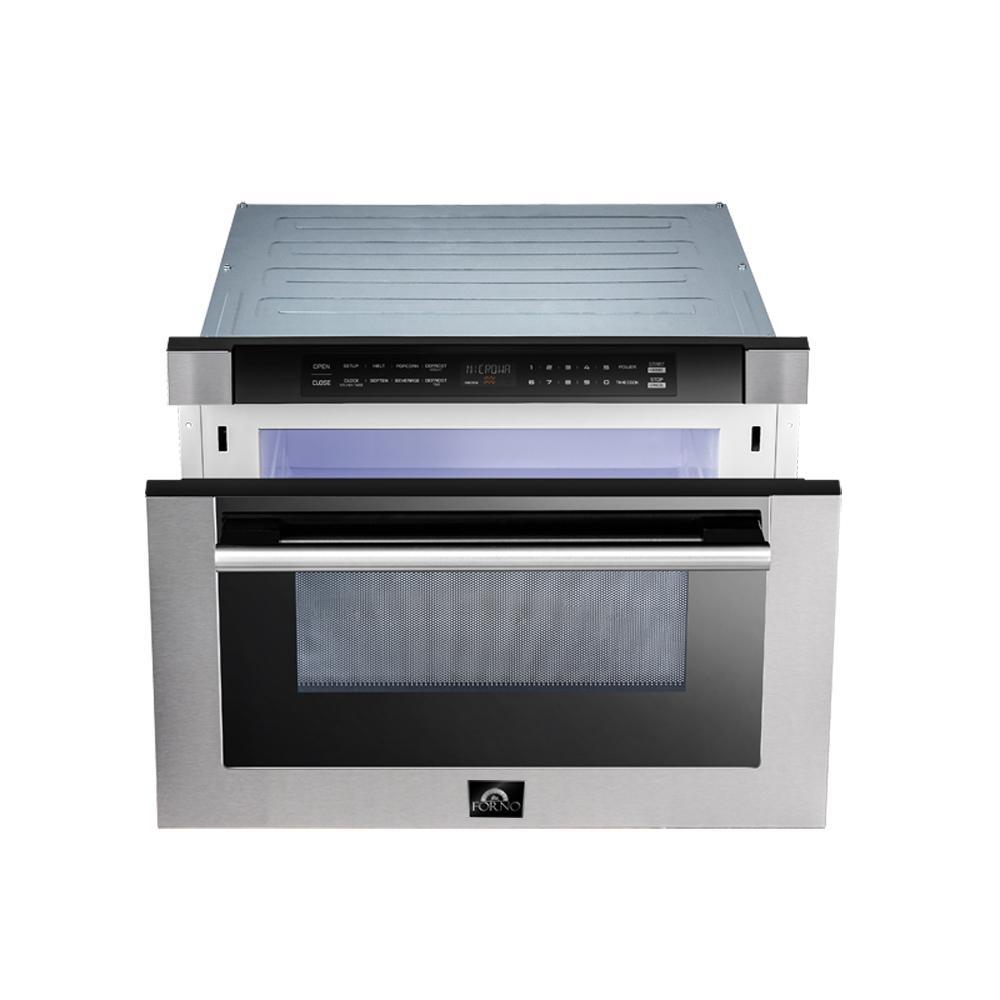

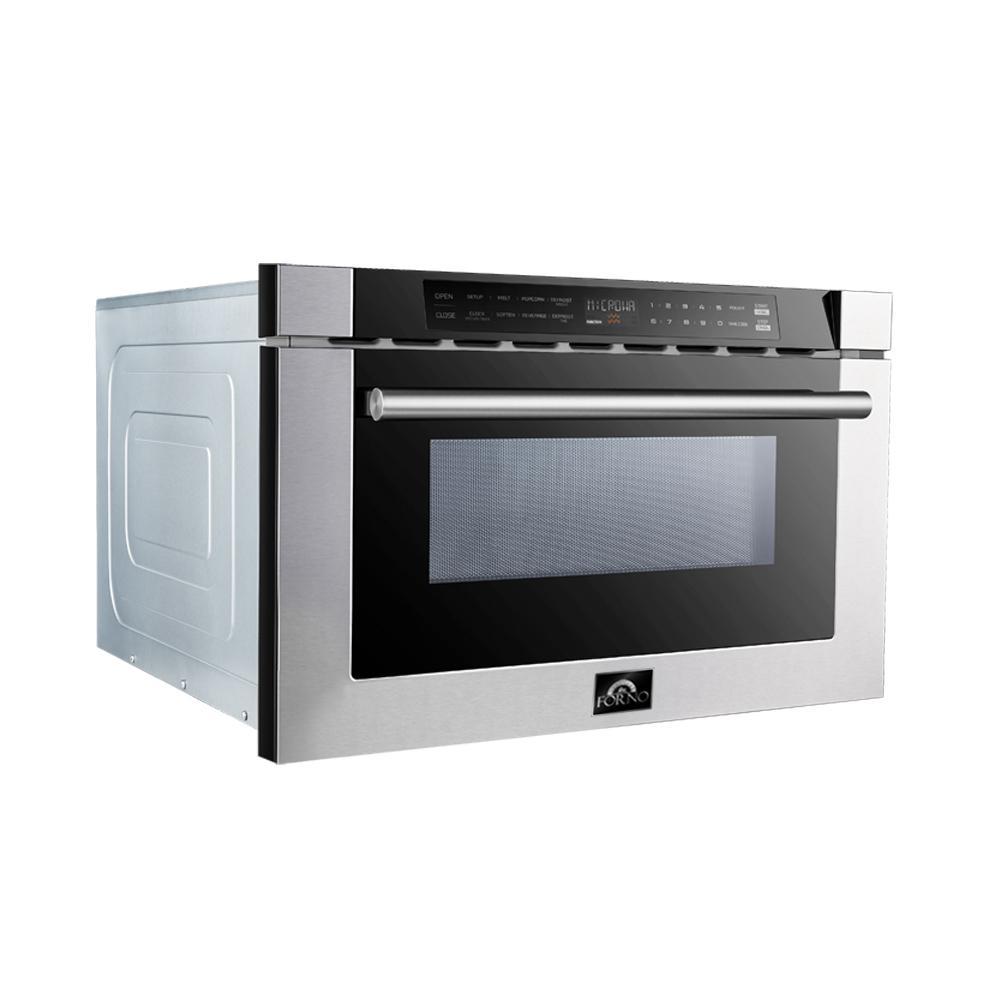

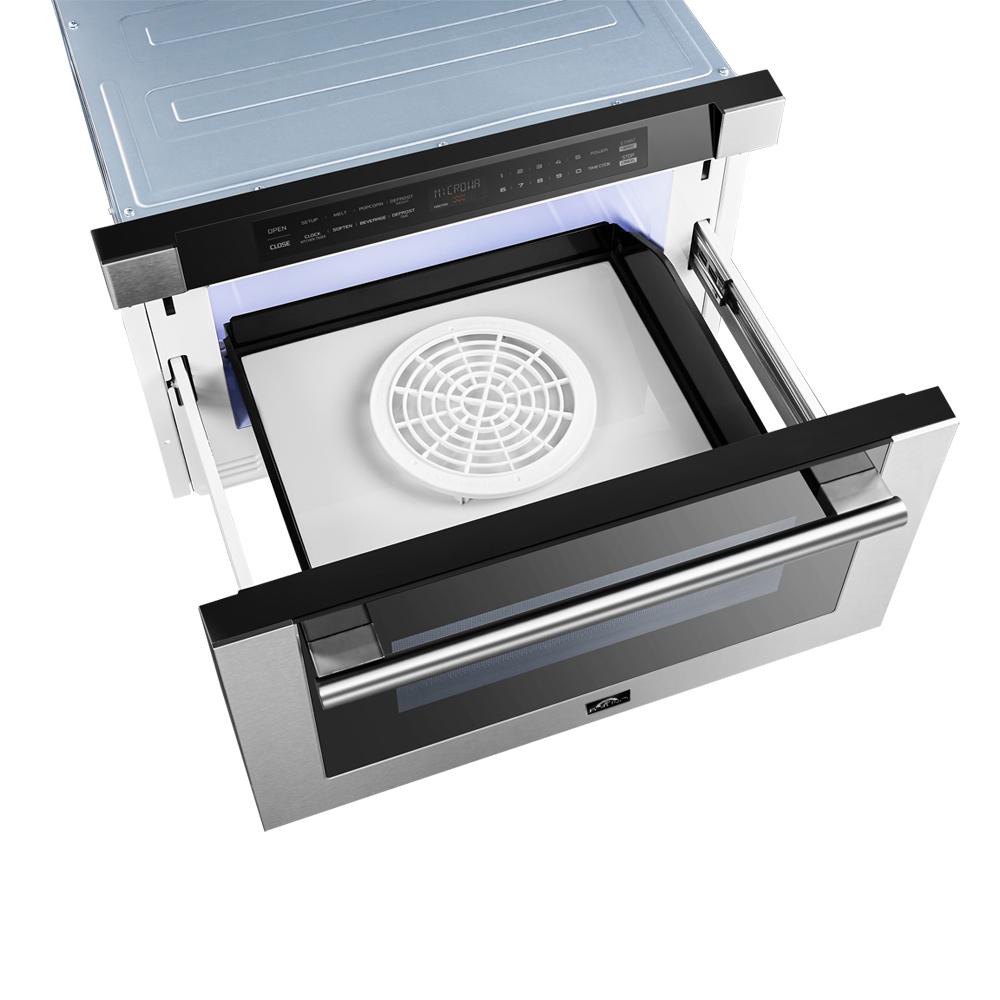

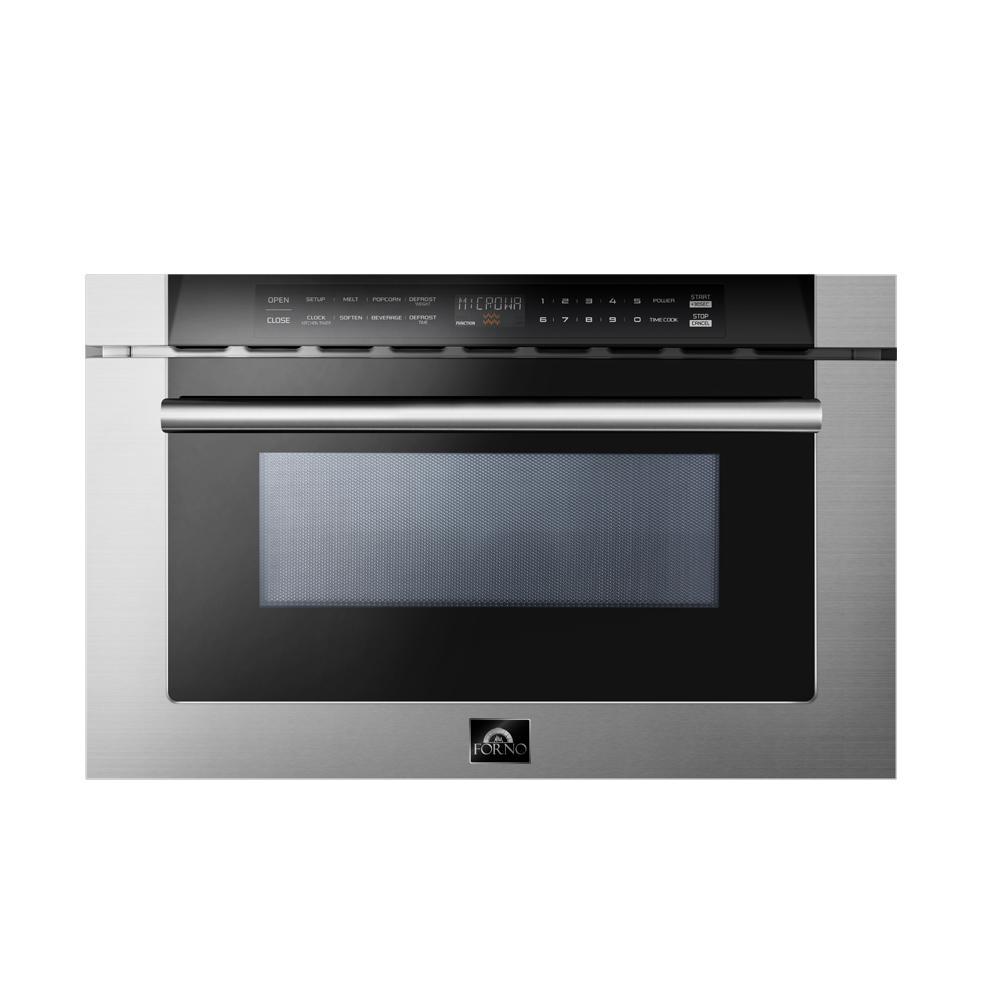

Microwave Drawer

• Large Capacity: With 1.2 cu ft capacity, the interior accommodates coffee mugs up to 7 inches tall and dishes up to 16 x 16 inches

• Easy Open: Open the drawer with a touch of a button - easy to use open and close buttons for added convenience

• Space-Saving: Designed to be seamlessly installed built-in under a counter or in a wall
• Versatile: Choose from 8 power levels for the perfect power option for your cooking needs
• Powerful: Features 1,000 watt cooking power for fast cooking. Boil water as quickly as 1 minute and 50 seconds with standard microwave settings

PRODUCT SPECIFICATIONS:

Range:

Dimensions:	48" W x 28"D x 38"H
Burner Fuel:	Natural Gas
Oven Fuel:	Natural Gas
Electrical Requirement	120 Volts / 15 amps
Oven Capacity (cu.ft)	4.32 cu. ft. (large oven) 2.26 cu. ft. (small oven)
Number of Burners	8

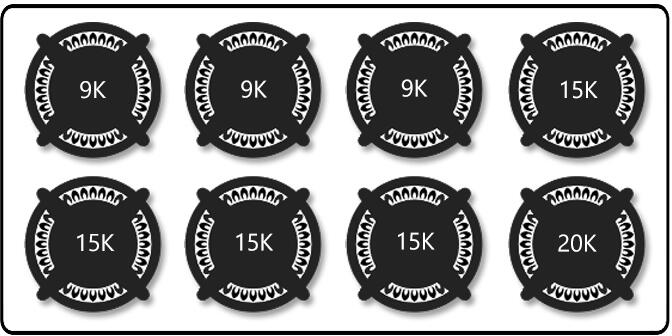

Cooktop BTUs:	Front Left Output: 15000 Back Left Output: 9000 Back Right Output: 15000 Front Right Output: 20000 Middle Front Left Output: 15000 Middle Back Left Output: 9000 Middle Front Right Output: 15000 Middle Back Right Output: 9000
Oven BTUs:	22000
Material:	Stainless Steel
Convection Fan	Yes
Warranty	2 Years
Weight	413.36 lbs

Refrigerator:

Product Dimensions	35.9''W x 69.88"H x 27.8''D
Total Capacity	19.26 cu. ft.
Refrigerator Capacity	12.12 cu. ft.
Freezer Capacity	7.14 cu. ft.

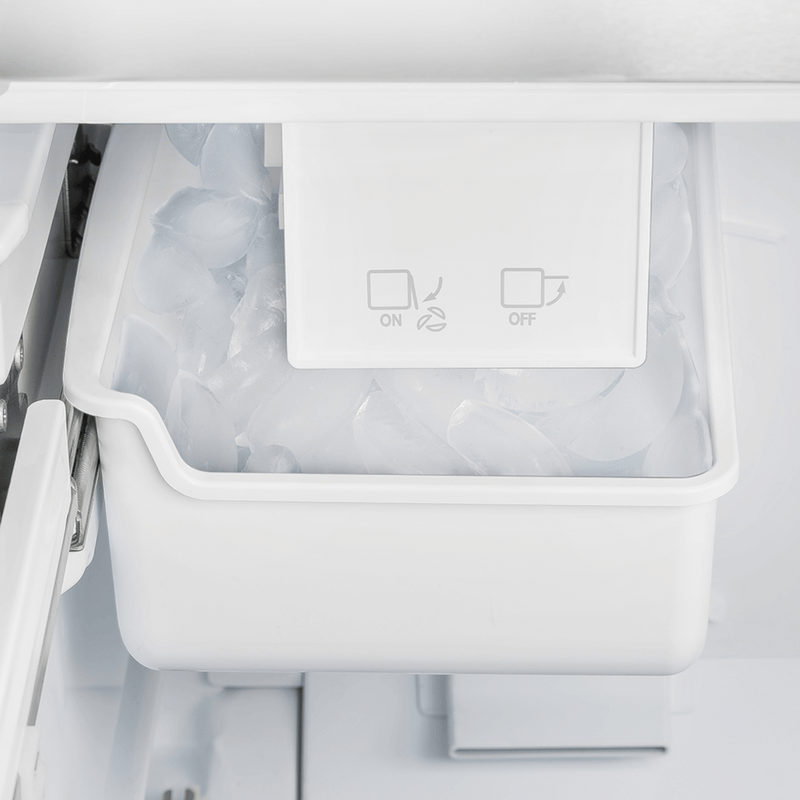

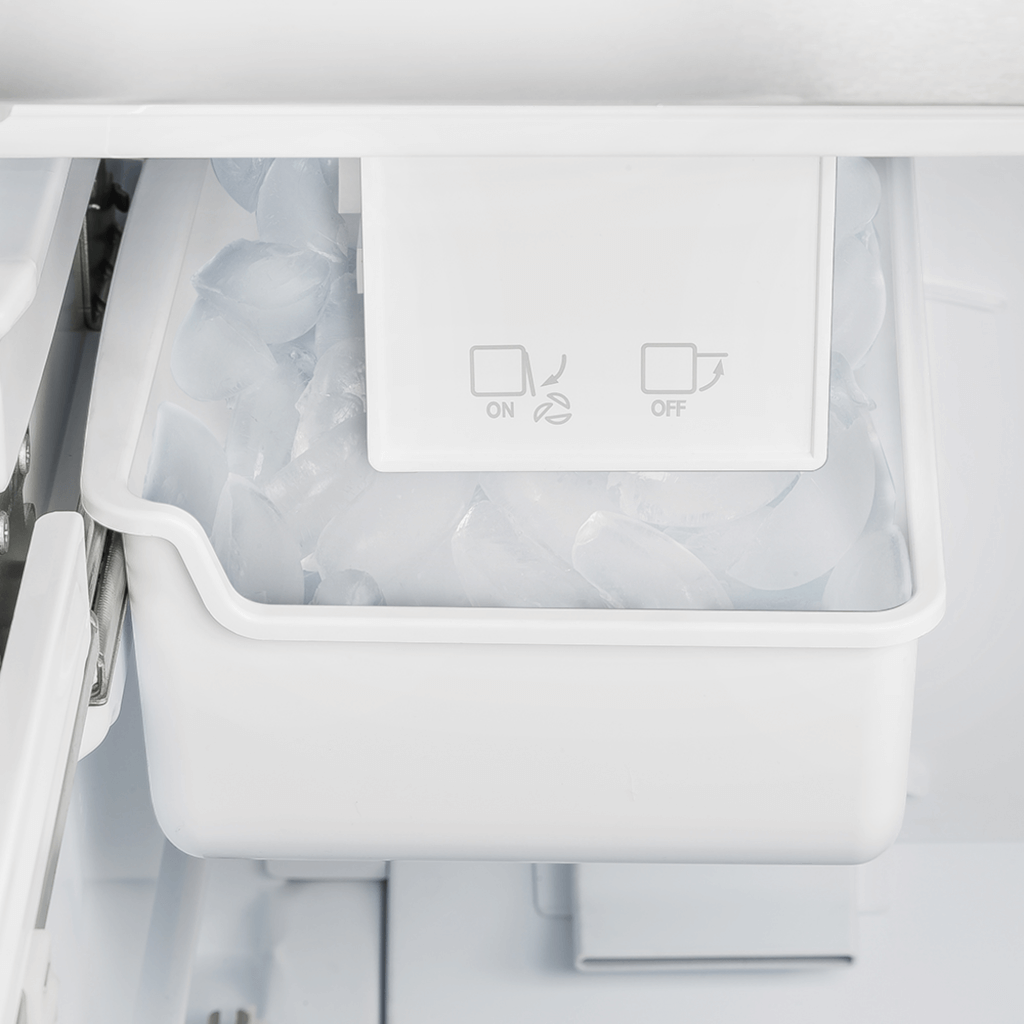

Icemaker	Yes - In Freezer Drawer
Water Dispenser	No
Warranty	2 years parts and labor

Dishwasher:

Dimensions	23.86”W x 33.74”H x 25.59”D
Power:	120V / 60Hz
Energy Efficiency Class:	249 kWh/year
Noise Level:	45 dBA
Finish:	Stainless Steel
Materials:	Stainless Steel
Control Location:	Top
Warranty	2 Years
Product Weight:	102 lbs.

Microwave Drawer:

Dimension	23 7/8" W x 24" D x 14 9/16" H
Voltage	120V/60HZ
Motor	1,000W
Mount Type	Drawer
Control Type	8 Power Levels
Product Weight	70.5

INSTALLATION INSTRUCTIONS - RANGE

INSTALLATION INSTRUCTIONS - DISHWASHER

INSTALLATION INSTRUCTIONS - REFRIGERATOR

INSTALLATION INSTRUCTIONS - MICROWAVE DRAWER
